Specifications
refractory ceramic fiber productsing temp:1350C
2.density:500kg/m3
3.shape:various shapes

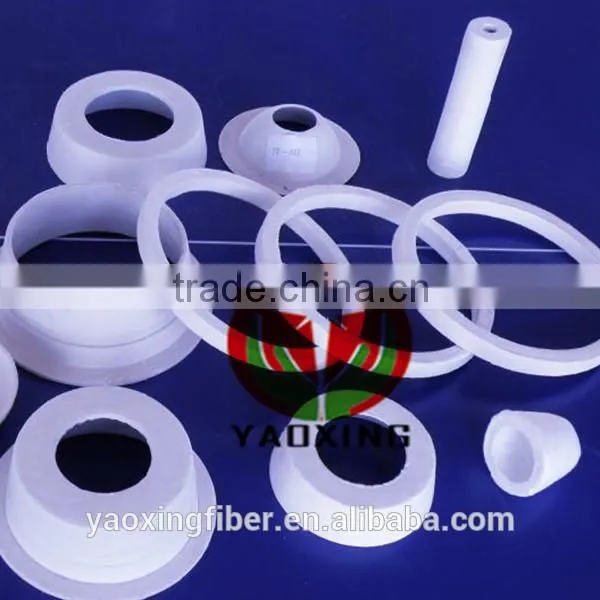

ceramic fiber special-shaped products
Description:
1.Yao Xing ceramic fiber special-shaped products meet some special part of the thermal equipment for refractory
and heat insulation
2.These products are non-crisp material,high mechanic strength,accurate geometrical
3.Excellent refractory and insulation,contacting with fire directly
Characteristics:
1. Low heat storage
2. Low heat loss
3. Excellent wind corrosion resistance
4. Excellent thermal shock resistance
5. Excellent compressive strength
6. Excellent sound absorption capability
7. Excellent performance of contraction and installation
Applications:
1. Peep holes for the industrial furnace
2. Patch holes for thermometer
3. Nozzle and door sealing for the industrial furnace
4. Non-ferrous metal molten channel
5. Lining for pad,cap,of found,electrical equipment connect gaskets
Technical Index:
Classification Temperature |
1260 |
1400 |
1600 |
||
Code |
YXTX-255 |
YXTX-455 |
YXTX-555 |
YXTX-755 |
|
|
Shrinkage on Heating (%) |
1000°C×24h≤-3 |
1200°C×24h≤-3 |
1350°C×24h≤-3 |
1400°C×24h≤-3 |
|
|
Theoretical Thermal Conductivity (W/m·k)
|
(200 °Caverage) (400 °Caverage) (600 °Caverage)
|
0.055-0.065 0.110-0.120 0.160-0.170 |
0.060-0.070 0.105-0.125 0.170-0.180 |
||
Density(kg/m3) |
300-500 |
||||
Specification |
According to your requirements |
||||
Packing |
Wooden Boxes or Cartons |
||||
