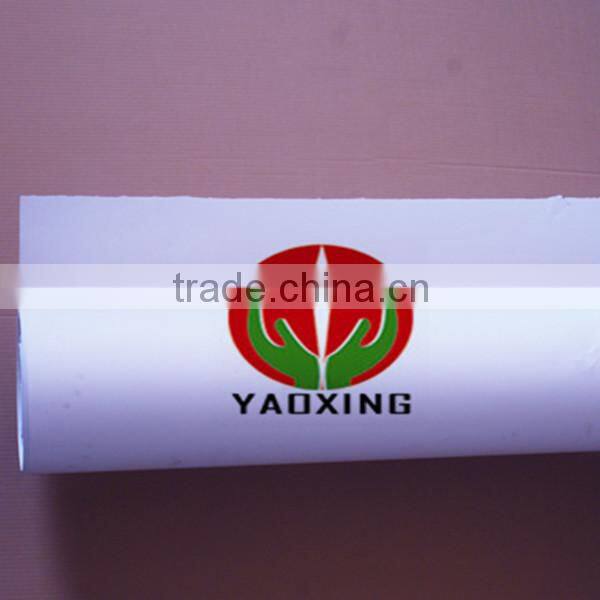

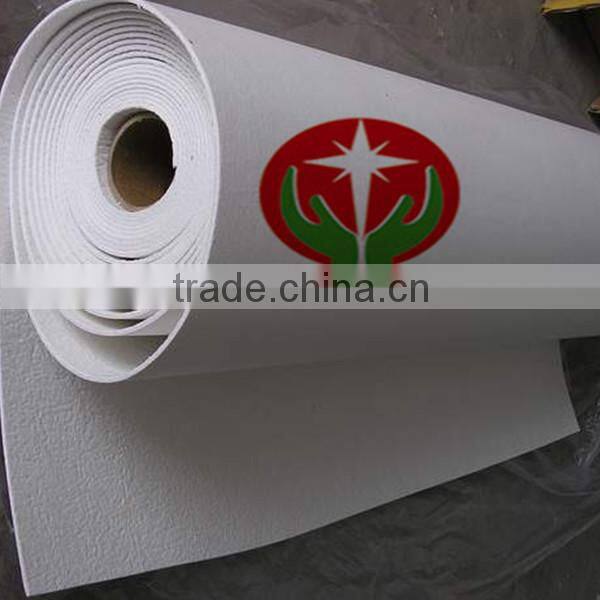

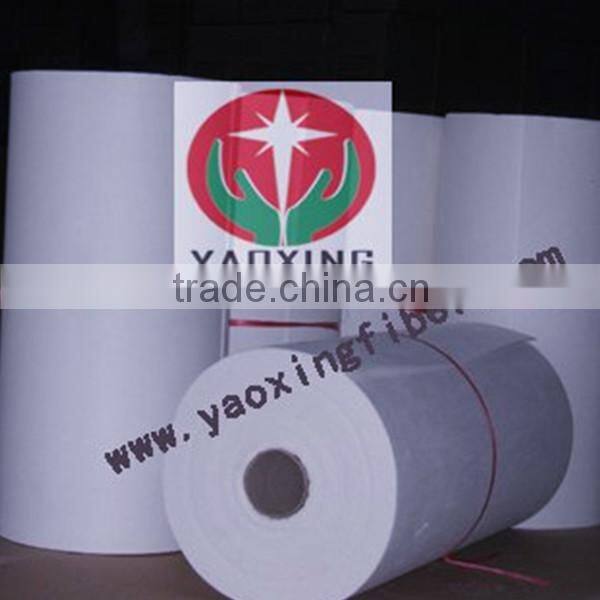

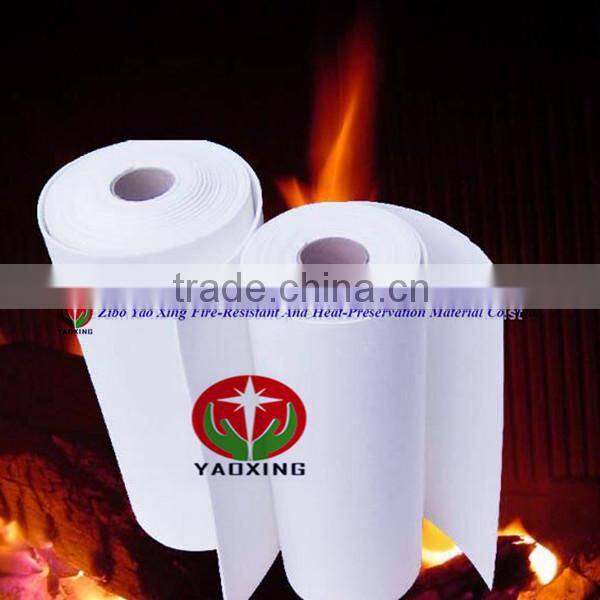

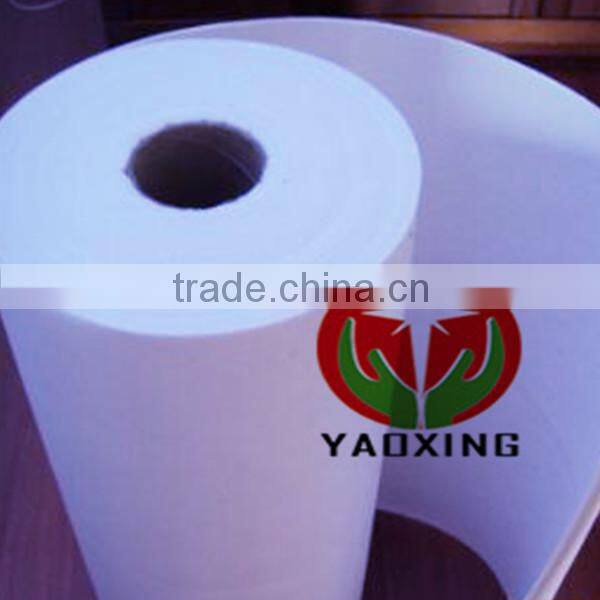

Help CenterHeating Insulation Cramic Wool Paper
Related Products
-
Refractory Ceramic Fiber Paper (HA)US$ 3.38 - 4.69MOQ: 20 Rolls -
Standard Ceramic Fiber Paper High Temperature Ceramic Fiber Paper 1260 High Pure Ceramic Fiber Paper for Hear InsulatingNegotiableMOQ: 20 Rolls
-
Standard Ceramic Fiber Paper 1260(High Pure) Ceramic Fiber Paper for Heating Insulation High Temperature Ceramic Fiber PaperNegotiableMOQ: 20 Rolls
-
Fireproof Excellent Flexibility Heat Insulation Gasket Ceramic Fiber Paper for Industrial EquipmentNegotiableMOQ: 100 Rolls
-
Thermal Insulating Ceramic Fiber PaperNegotiableMOQ: 20 Rolls
Specifications
Ceramic Fiber Paper1.Density: 200-220kg/m3
2.Thickness: 0.5~7mm
3.Type: High Aluminum
Description
Zibo Yaoxing is a professional manufacturer of ceramic fiber products for more than 10 years.
Ceramic Fiber Paper is made from ceramic fibers bonded with a low percentage of organic binder;
it has excellent thermal insulation properties and good handling characteristics.
Product Characteristic:
♦Low Heat Storage
♦Low Thermal Conductivity
♦Excellent Thermal Electrical Insulation
♦Excellent Machine-processed Capability
♦Excellent Broken Resistance
♦Excellent Flexibility
♦Low Shot Content
Application Range:
♦Industrial insulating ,sealing and protecting materials
♦Electric and thermal insulation materials for electric industry
♦Insulation materials for instrument-equipment
♦Insulating materials for motor industry
♦Filling materials for expansion slot
♦Insulating materials as the sinter resistance
♦Sealing gasket for molten metal
♦Fireproof materials
Classification Temperature |
1260 |
1400 |
|
Name |
ST Ceramic Fiber Paper |
HZ Ceramic Fiber Paper |
|
Code |
YXTX-236 |
YXTX-336 |
|
Shrinkage on Heating (%) |
1000°C×24h ≤-3 |
1350°C×24h≤-3 |
|
|
Theoretical Thermal Conductivity (W/m·k) |
(200°Caverage) (400°Caverage) (600°Caverage) |
0.075-0.085 0.110-0.121 0.160-0.170 |
|
Organic Content (%) |
≤ 10 |
≤ 8 |
|
Theoretical Density (kg/m3) |
200±15 |
||
Tensile Strength (Mpa) |
≥0.3 |
≥0.2 |
|
Moisture Content(%) |
≤1 |
||
Specification (mm) |
100000/12000×610/1220×0.5/7, According to your requirements |
||
Package |
Plastic Bag Inside, Carton Box Outside |
||
Quality Control System |
ISO9001-2000, ISO14001-1996 |
||

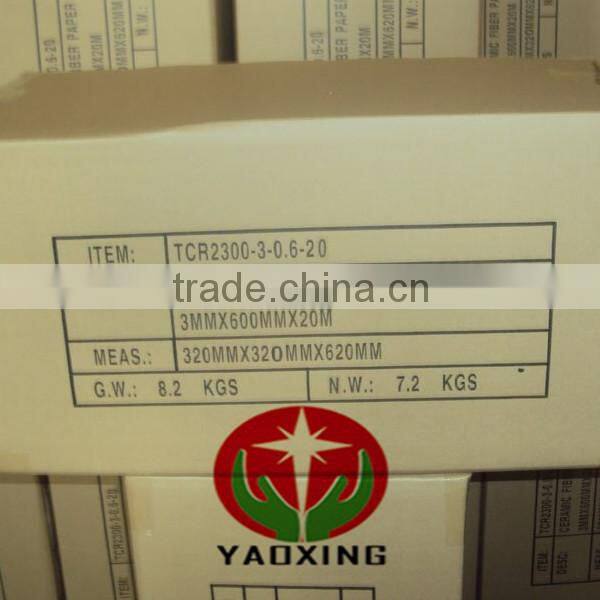

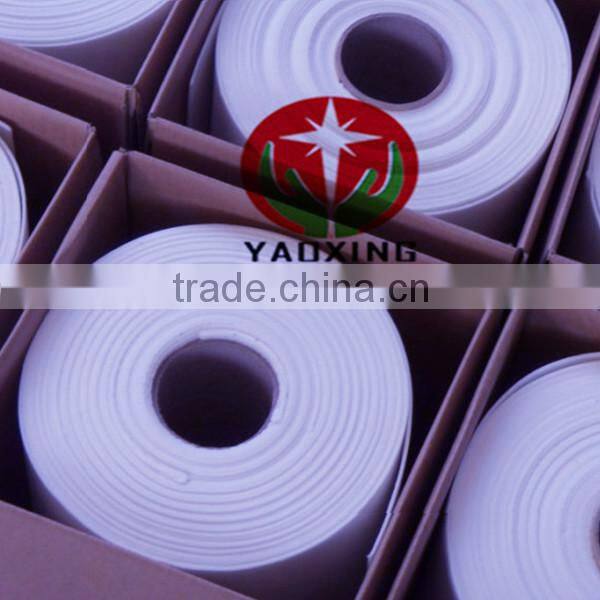

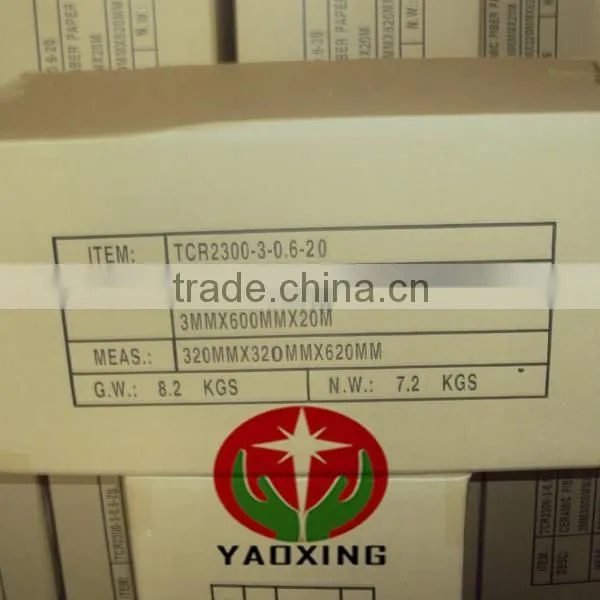

The package of heat insulation ceramic wool paper: cartons or cartons with pallet.
Also can according your demand to custom.
