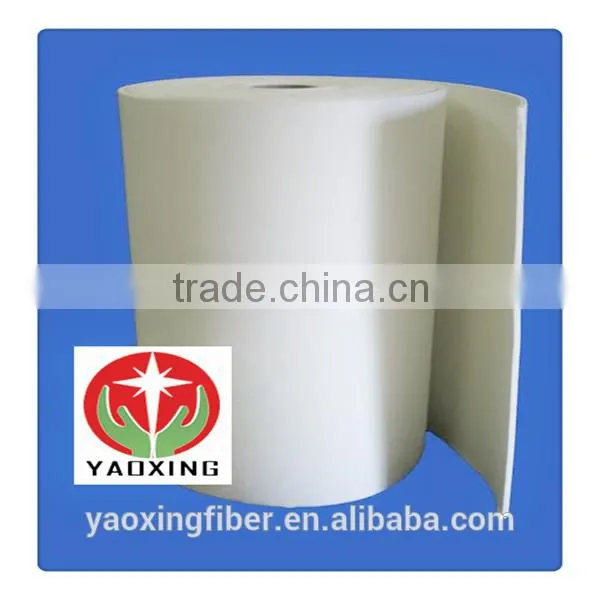

Help CenterHigh Temperature Ceramic Fiber Paper Standard Ceramic Fiber Paper Ceramic Fiber Paper for Heat Insulation
Related Products
-
Heating Insulation Cramic Wool PaperUS$ 3.38 - 4.69MOQ: 200 Rolls -
Refractory Ceramic Fiber Paper (HA)US$ 3.38 - 4.69MOQ: 20 Rolls
-
Standard Ceramic Fiber Paper High Temperature Ceramic Fiber Paper 1260 High Pure Ceramic Fiber Paper for Hear InsulatingNegotiableMOQ: 20 Rolls
-
Standard Ceramic Fiber Paper 1260(High Pure) Ceramic Fiber Paper for Heating Insulation High Temperature Ceramic Fiber PaperNegotiableMOQ: 20 Rolls
-
Fireproof Excellent Flexibility Heat Insulation Gasket Ceramic Fiber Paper for Industrial EquipmentNegotiableMOQ: 100 Rolls
Product Series:
1260 Ceramic Fiber Paper YXTX-236
1400 Ceramic Fiber Paper YXTX-336
Description
1.YAOXING Ceramic Fiber Paper is processed from the high purity fiber, which
can be used in the field of high temperature insulation.Because we have adopted
the advanced processing work, we cannot only make the fiber interweave shapely,
but also can control the thickness and the density rigidly.
2.A spot of bonding agent has been added into the fiber during processing, which
has been chosen and controlled scientifically, can be burnt during application.
Size:
0.5mm*610/1220mm*90meters
0.7mm*610/1220mm*80meters
1mm *610/1220mm*60meters
2mm *610/1220mm*30meters
3mm *610/1220mm*20meters
4mm *610/1220mm*15meters
5mm *610/1220mm*12meters
Characteristic:
1.Low Heat Storage
2.Low Thermal Conductivity
3.Excellent Thermal Electrical Insulation
4.Excellent Machine-processed Capability
5.Excellent Broken Resistance
6.Excellent Flexibility
7.Low Shot Content
Application:
1.Industrial insulating ,sealing and protecting materials
2.Electric and thermal insulation materials for electric industry
3.Insulation materials for instrument-equipment
4.Insulating materials for motor industry
5.Filling materials for expansion slot
6.Insulating materials as the sinter resistance
7.Sealing gasket for molten metal
8.Fireproof materials
Technical Index:
Classification Temperature |
1260 |
1400 |
|
Name |
ST Ceramic Fiber Paper |
HZ Ceramic Fiber Paper |
|
Code |
YXTX-236 |
YXTX-336 |
|
|
Shrinkage on Heating (%) |
1000°C×24h ≤-3 |
1350°C×24h≤-3 |
|
|
Theoretical Thermal Conductivity (W/m·k) |
(200°Caverage) (400°Caverage) (600°Caverage) |
0.075-0.085 0.110-0.121 0.160-0.170 |
|
|
Organic Content (%) |
≤ 10 |
≤ 8 |
|
Theoretical Density (kg/m3) |
200±15 |
||
|
Tensile Strength (Mpa) |
≥0.3 |
≥0.2 |
|
|
Moisture Content (%) |
≤1 |
||
|
Specification (mm) |
100000/12000×610/1220×0.5-7, According to your requirements |
||

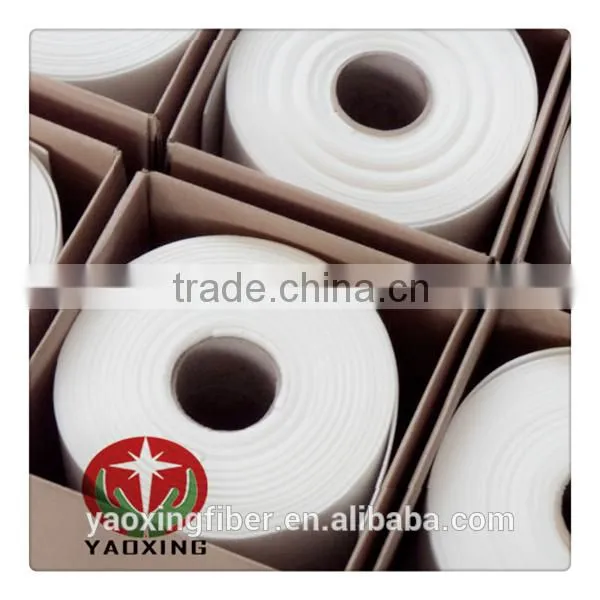

Package |
Plastic Bag Inside, Carton Box Outside |
||
Quality Control System |
ISO9001-2000, ISO14001-1996 |
||
Loading
|
Specification (MM) |
Density (KG/M3) |
NW/CNT (KG) |
CNT Size (MM) |
QTY/CNT (ROLL) |
CONT Size (FOOT) |
PCS/CONT (CNTS) |
5*610*12000 |
200 |
7.32 |
320*320 *620 |
1 |
20 |
441 |
3*610*20000 |
200 |
7.32 |
320*320 *620 |
1 |
40GP |
931 |
1*610*60000 |
200 |
7.32 |
320*320 *620 |
1 |
40HQ |
1064 |
