flame retardant paper heat insulation paper for exhausts fireproof paper

Name: flame retardant paper heat insulation paper for exhausts fireproof paper
Brand: YAOXING
Price: Negotiable

FOB Price

Negotiable / Roll

100 Rolls(Min.Order)

Supply Ability 1000 Roll / Rolls per Month
Port QINGDAO
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Shandong, China	Thickness:	0.5-7mm
Width:	610/1220mm	Length:	100000-12000mm	Grade:	HZ (High Zirconium)
Chemical Composition:	Al2O3≥38% ,ZrO2≥15%	Working Temperature:	1350	Fiber Diameter:	3μm
Thermal Conductivity:	0.075	Shrinkage (1800℉, 3h):	≤3%	Brand Name:	YAOXING
Model Number:	YXTX-336

Product Description

DENSITY 200KG/M3 CERAMIC FIBER PAPER

Technical Index

Classification Temperature		1260	1400
Code		YXTX-236	YXTX-336
Shrinkage on Heating (%)		1000°C×24h≤-3	1350°C×24h≤-3
Theoretical Thermal Conductivity (W/m·k)	(200°Caverage) (400°Caverage) (600°Caverage)	0.075-0.085 0.115-0.121 0.165-0.175
Theoretical Density (kg/m3)		200±15	200±15
Specification (mm)		100000/12000×610/1220×0.5/7, According to your requirements
Tensile Strength(MPa)		≥0.04
AL2O3(%)		45-46	38~47
ZrO2		-	15~17
AL2O3+SiO2(%)		≥97	—
AL2O3+SiO2+ZrO2(%)		—	≥99
Fe2O3(%)		≤1.0	≤0.2
K2O+Na2O(%)		≤0.5	≤0.2

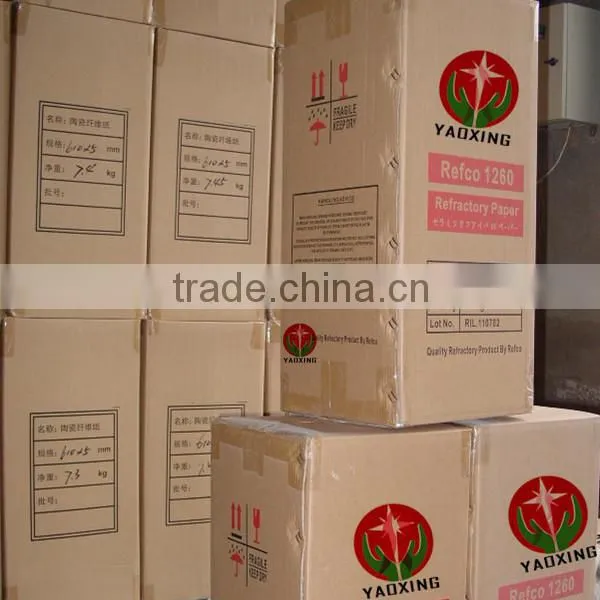

Package		Plastic Bag Inside, Carton Outside
Quality Control System		ISO9001-2000, ISO14001-1996

Size:

0.5mmX610/1220mmX90meters

0.7mmX610/1220mmX80meters

1mm X610/1220mmX60meters

2mm X610/1220mmX30meters

3mm X610/1220mmX20meters

4mm X610/1220mmX15meters

5mm X610/1220mmX12meters

Characteristic:

1.Low Heat Storage

2.Low Thermal Conductivity

3.Excellent Thermal Electrical Insulation

4.Excellent Machine-processed Capability

5.Excellent Broken Resistance

6.Excellent Flexibility

7.Low Shot Content

Application:

1.Industrial insulating ,sealing and protecting materials

2.Electric and thermal insulation materials for electric industry

3.Insulation materials for instrument-equipment

4.Insulating materials for motor industry

5.Filling materials for expansion slot

6.Insulating materials as the sinter resistance

7.Sealing gasket for molten metal

8.Fireproof materials
