Ceramic Fiber Paper

Ceramic Fiber Paper thumbnail-1
Ceramic Fiber Paper thumbnail-2
Ceramic Fiber Paper thumbnail-3
Ceramic Fiber Paper thumbnail-4
Ceramic Fiber Paper thumbnail-5
Ceramic Fiber Paper thumbnail-6
Ceramic Fiber Paper photo-1
Ceramic Fiber Paper photo-2
Ceramic Fiber Paper photo-3
Ceramic Fiber Paper photo-4
Ceramic Fiber Paper photo-5
Ceramic Fiber Paper photo-6
Negotiable MOQ: 10 Rolls (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Application:
Heat Insulation, Insulating/Sealing
Thickness:
0.5-12mm
Contact Supplier Request Quote Chat Now
Zibo Yao Xing Fire-Resistant And Heat-Preservation Material Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Thickness 0.5-12mm
Width 610/1220mm
Length 10-90m
Grade ST (Standard)
Chemical Composition AL2O3+SIO2,Al2O3>46%
Working Temperature 1000 C, 1000C
Fiber Diameter 3-5um
Thermal Conductivity 0.115-0.121(400 C)
Shrinkage (1800℉, 3h) -3(24hours)
Brand Name YAOXING
Model Number YXTX-236
Product Description



Product Series:



1260 Ceramic Fiber Paper YXTX-236

1400 Ceramic Fiber Paper YXTX-336



Description:



1.YAOXING Ceramic Fiber Paper is processed from the high purity fiber,

which can be used in the field of high temperature insulation.

Because we have adopted the advanced processing work,

we cannot only make the fiber interweave shapely,

but also can control the thickness and the density rigidly.

2.A spot of bonding agent has been added into the fiber during processing,

which has been chosen and controlled scientifically, can be burnt during application.

ceramic fiber paper

Dimension:



0.5mmX610/1220mmX90meters

0.7mmX610/1220mmX80meters

1mm  X610/1220mmX60meters

2mm  X610/1220mmX30meters

3mm  X610/1220mmX20meters

4mm  X610/1220mmX15meters

5mm  X610/1220mmX12meters



Characteristic:



1.Low Heat Storage

2.Low Thermal Conductivity

3.Excellent Thermal Electrical Insulation

4.Excellent Machine-processed Capability

5.Excellent Broken Resistance

6.Excellent Flexibility

7.Low Shot Content



Product Line



ceramic fiber paper



Application



1.Industrial insulating ,sealing and protecting materials

2.Electric and thermal insulation materials for electric industry

3.Insulation materials for instrument-equipment

4.Insulating materials for motor industry

5.Filling materials for expansion slot

6.Insulating materials as the sinter resistance

7.Sealing gasket for molten metal

8.Fireproof materials

9. Expansion joints

10.High temperature gasket

11.Ingot mould liner

12. Refractory back up insulation
13.Heat shield and silencer insulation
14. Fire protection

15.Molten metal splash and spark protection





Technical Index



Classification Temperature

1260

1400

Name

ST Ceramic Fiber Paper

HZ Ceramic Fiber Paper

Code

YXTX-236

YXTX-336

Shrinkage on Heating (%)

1000℃×24h ≤-3

1350℃×24h≤-3

 Theoretical

Thermal Conductivity

(W/m·k)

(200℃average)

(400℃average)

(600℃average)

0.075-0.085

0.110-0.121

0.160-0.170

Organic Content (%)

≤ 10

≤ 8

Theoretical Density (kg/m3)

200±15

Tensile Strength (Mpa)

≥0.3

≥0.2

Moisture Content(%)

≤1

Specification (mm)

100000/12000×610/1220×0.5/7,

According to your requirements

Package

Plastic Bag Inside, Carton Box Outside

Quality Control System

ISO9001-2000, ISO14001-1996

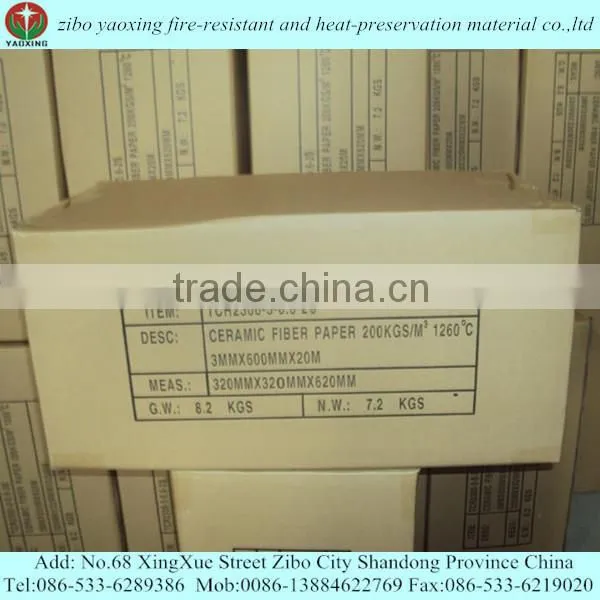

Loading&Packing



Specification

(MM)

Density

(KG/M3)

NW/CNT

(KG)

CNT Size

(MM)

QTY/CNT

(ROLL)

CONT Size

(FOOT)

PCS/CONT

(CNTS)

5*610*12000

200

7.32

320*320*620

1

20

441

3*610*20000

200

7.32

320*320*620

1

40GP

931

1*610*60000

200

7.32

320*320*620

1

40HQ

1064

 ceramic fiber paper





Company Information

 We, Zibo Yaoxing Fire-Resistant &Heat-Preservation Material Co., Ltd., are one of Chinese top professional ceramic fiber products manufacturer, dealing with all kinds of ceramic fiber bulk/blanket/paper/board/module.



Since the founding, we insist on the principle "Honest" and "Excellent", build up a hi-Tec production line and own a strict quality control system and management system.



We have exported to lots ofcountries:

Malaysia,Korea,Japan,Hongkong,Pakistan, Spanish,Thailand,Nigeria,

Sri Lanka,Iran,Vietam,Oman,Indonesia,Tajikistan,Germany and so on.



So our products are perfect, please trust our strengthto be your top supplier of ceramic fiber products.


You can contact with us for further information, we also give a competitive price for honored company.
