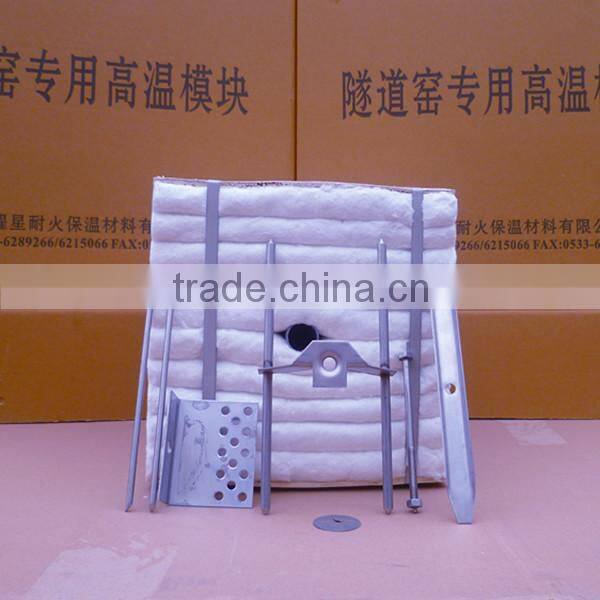

Help CenterLightweight Ceramic Fiber Module 190K Ceramic Module Furnace Insulation Ceramic Fiber Block
Related Products
-
Thermal Insulation Material for Ovenhigh Temperature Furnace Insulation Material Heat Insulation Module for BoilerNegotiableMOQ: 100 Metric Tons -
Tunnel Kilns Ceramifc Fiber Module Ceramic Fiber Module Refractory Ceramic Fiber ModuleNegotiableMOQ: 100 Pieces
-
Ceramic Fiber Moudle Z-block Refractory Thermal Insulation Material for OvenNegotiableMOQ: 1 Metric Ton
-
Furnace Door Ceramic Fiober Module Refractory Ceramic Fiber Module Kiln Heat Insulaiton ModuleNegotiableMOQ: 1 Metric Ton
-
Stove Backing Ceramic Fiber Modulesrefractory Ceramic Fiber Module Ceramic Wool BlockNegotiableMOQ: 100 Pieces
Characteristic:
1. Resistance to high temperature
2. Low thermal conductivity
3. Resistance to thermal shock
4. Excellent corrosion resistance
5. Low shot content
6.Low heat storage
7. High tensile strength
8.Good sound absorption
Application:
1.Soaking pit seals
2. Expansion joint seals
3. Annealing cover seals
4. Fire protection systems
5. High temperature gasketing
6.Glass furnace crown insulation
7. Investment casting mould wrappings
8. Incineration equipment and stack linings

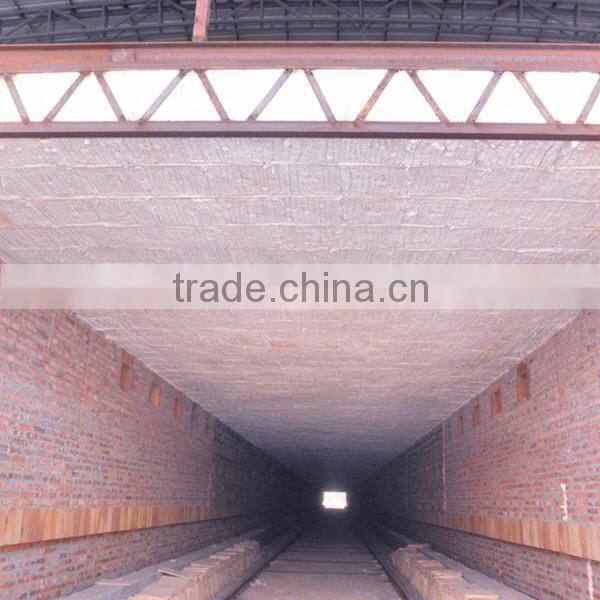

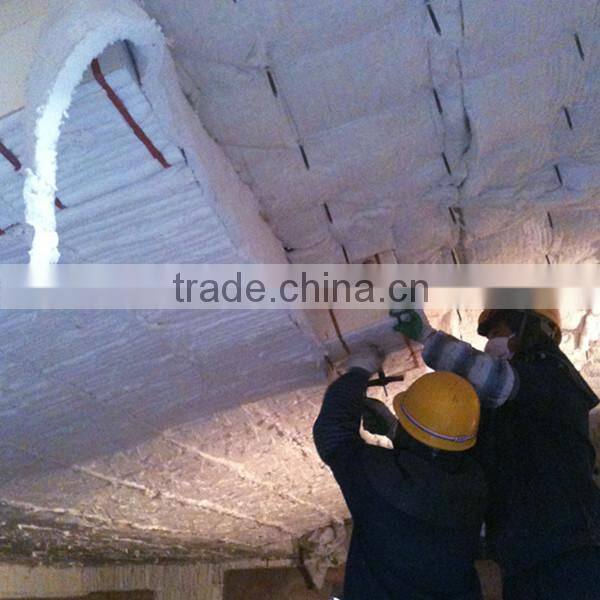

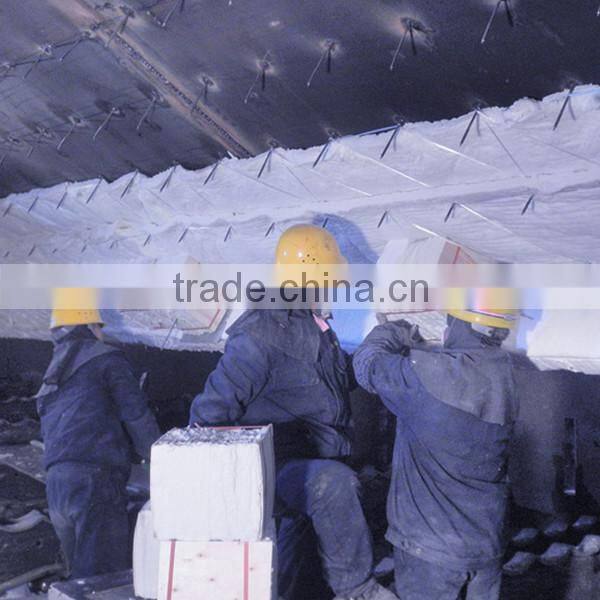

9. Kiln and furnace insulation
10.Insulation for steam and gas turbines
11.Removable insulation for field stress relieving welds
Technical Index:
|
Classification Temperature |
1050 |
1260 |
1400 |
||||||||
Code |
TXTX-112 |
TXTX-212 |
TXTX-312 |
TXTX-422 |
TXTX-512 |
||||||
|
Shrinkage on Heating (%) |
950°C×24h ≤-3 |
1000°C×24h ≤-3 |
1100°C×24h ≤-3 |
1200°C×24h ≤-3 |
1350°C×24h ≤-3 |
||||||
|
Theoretical Thermal Conductivity (W/m·k) (128kg/m3) |
0.09(400°C) 0.176(800°C) |
0.09(400°C) 0.176(800°C) |
0.09(400°C) 0.176(800°C) 0.22(1000°C) |
0.132(600°C) 0.22(1000°C) |
0.76(600°C) 0.22(1000°C) |
||||||
|
Theoretical Density (kg/m3) |
64/96/128 |
||||||||||
Specification (mm) |
7200/5000/3600/3000×610/1220×/20/30/40/50 According to your requirements |
||||||||||
|
Tensile Strength (Mpa)(128kg/m3) |
0.08-0.12 |
||||||||||
AL2O3(%) |
≥44 |
≥45 |
≥45 |
52~55 |
38~40 |
||||||
ZrO2 |
- |
15~17 |
|||||||||
AL2O3+SiO2(%) |
≥96 |
≥97 |
≥99 |
≥99 |
— |
||||||
AL2O3+SiO2+ZrO2(%) |
— |
— |
— |
— |
≥99 |
||||||
Fe2O3(%) |
≤1.2 |
≤1.0 |
≤0.2 |
≤0.2 |
≤0.2 |
||||||
K2O+Na2O(%) |
≤0.5 |
≤0.5 |
≤0.2 |
≤0.2 |
≤0.2 |
||||||
Package |
Plastic Bag Inside, Woven Bags Outside |
||||||||||
Quality Control System |
ISO9001-2000, ISO14001-1996 |
||||||||||
