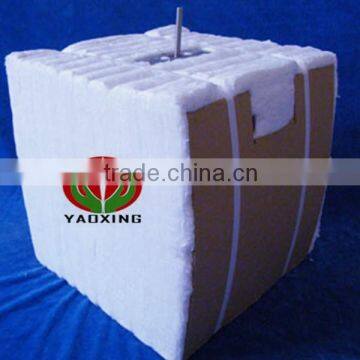

Help CenterCeramic Fiber Moudle Z-block Refractory Thermal Insulation Material for Oven
Related Products
-
Furnace Door Ceramic Fiober Module Refractory Ceramic Fiber Module Kiln Heat Insulaiton ModuleNegotiableMOQ: 1 Metric Ton -
Stove Backing Ceramic Fiber Modulesrefractory Ceramic Fiber Module Ceramic Wool BlockNegotiableMOQ: 100 Pieces
-
High Temperature Furnace Ceramic Fiber Modules Refractory Furnace Ceramic Fiber Module India Ceramic Fiber ModuleNegotiableMOQ: 1 Metric Ton
-
Thermal Insulation Requirements Ceramic Fiber Modules Oven Insulation Z-block Refractory Ceramic Fiber ModuleNegotiableMOQ: 1 Metric Ton
-
Ceramic Fiber Module Heat Insulation Ceramic Fiber Module Refractory Ceramic Fiber ModuleNegotiableMOQ: 100 Pieces
Characteristic

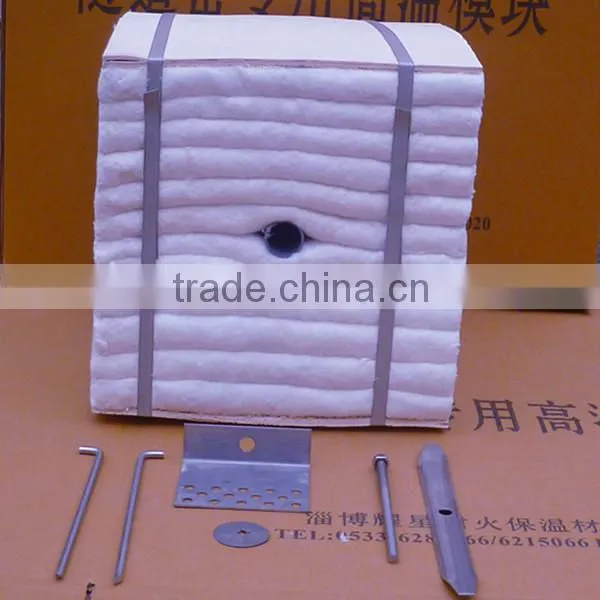

Ceramic fiber folded module not only used in furnace,
but also brought following benefit with ended custom
1.Folded blanket will impact tight with each other in differently way
without gaps after release from packing.
2.Elastically fiber blanket can withstand mechanical force.
3.The elasticity of fiber blanket could
make up distortion of furnace casing and with gaps between modules.
4.Because of the light weight, the decalescence capability
is low as the insulation materials.
5.Low thermal conductivity can save much energy.
6.Excellent thermal shock resistance capability.
7.Can be betaken immediately as soon as being installed,
for there is no need to be dried and maintained.

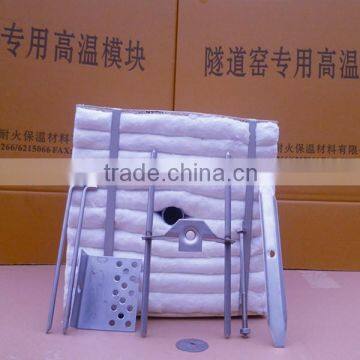

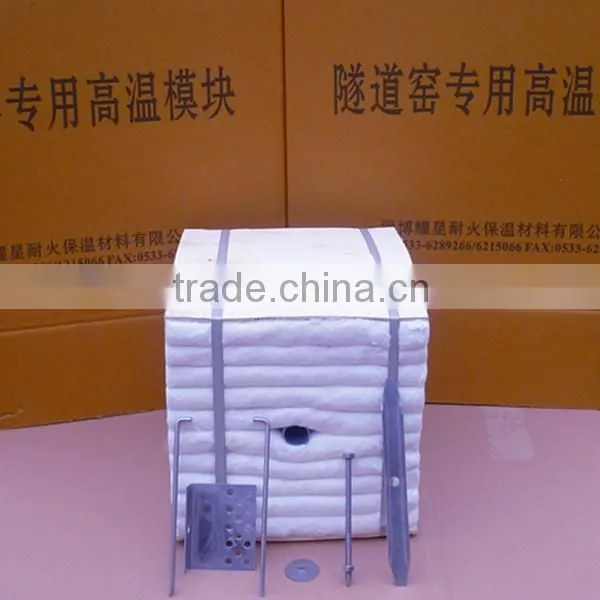

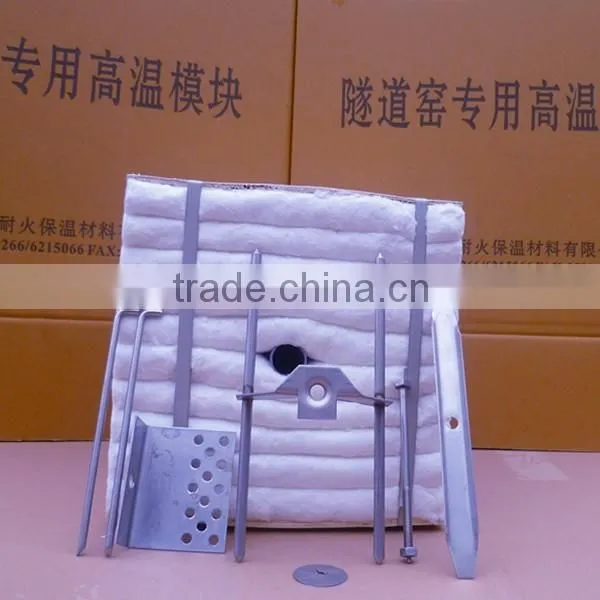

8.The Anchor system should be far away from
the hot surface of the modules and kept in the lower temp.
Technical Index
Classification Temperature |
1050 |
1260 |
1400 |
||
Code |
YXTX-189 |
YXTX-289 |
YXTX-389 |
TXTX-489 |
TXTX-589 |
Shrinkage on heating (%) |
950°C×24h ≤-3 |
1000°C×24h ≤-3 |
1100°C×24h ≤-3 |
1200°C×24h ≤-3 |
1350°C×24h ≤-3 |
Theoretical density (kg/m3) |
200±10 |
||||
|
Shot content (φ≥0.25mm)(%) |
≤15 |
||||
|
Theoretical Thermal conductivity (W/m·k) |
0.050-0.060(200°C) |
||||
0.095-0.120(400°C) | |||||
0.160-0.195(600°C) | |||||
Al2O3 (%) |
≥44 |
≥45 |
≥45 |
52-55 |
38-40 |
Al2O3+SiO2 (%) |
≥96 |
≥97 |
≥99 |
≥99 |
- |
ZrO2 (%) |
- |
- |
- |
- |
15-17 |
Al2O3+SiO2+ ZrO2 (%) |
- |
- |
- |
- |
≥99 |
Fe2O3 (%) |
≤1.2 |
≤1.0 |
≤0.2 |
≤0.2 |
≤0.2 |
K2O+Na2O (%) |
≤0.5 |
≤0.5 |
≤0.2 |
≤0.2 |
≤0.2 |
Specification (mm) |
300×300×200,According to your requirements |
||||
Package |
Woven Bag/Carton |
||||
Quality Control System |
ISO9001-2000 ,ISO14001-1996 |
||||
