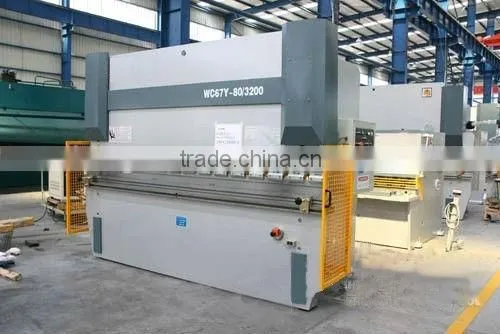

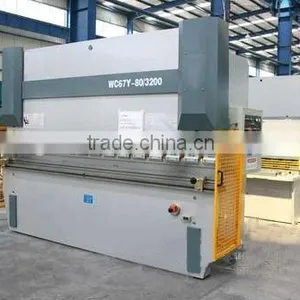

Help CenterCE Hydraulic Plate Bending Machine
Related Products
-
WF67Y-200/10000 CE Four Cylinder Hydraulic Metal Plate Bending MachineUS$ 679,000 - 679,860MOQ: 1 Set -
CE Hydraulic Plate Bending MachineUS$ 13,173 - 64,804MOQ: 1 Set
-
WE67K-125/3200 CE Electro Hydraulic Cnc Plate Bending MachineUS$ 45,800 - 46,000MOQ: 1 Set
-
CE Hydraulic Cheap Metal Plate Bending Machine for SaleUS$ 13,173 - 64,804MOQ: 1 Set
-
CE Hydraulic Plate Shearing Machine and Plate Bending Machine Quality ChoiceUS$ 10,010 - 35,500MOQ: 1 Set
hydraulic bending machine Technical Data
WF67Y hydraulic plate bender hydraulic/plate bending clamp/ plate bending machine has following featurers:
1.All steel welded structure,vibrating treatment of ageing for removal of internal stress with high strength and good rigidity. 2.Torsion shaft forced synchronization of mechanical limit stopper balance with high precision.
3.Integrated hydraulic transmission system, large range of speed regulation to transmission of the sliding block, stable and reliable performance.
4.Rear stopper and the sliding block have electrical adjustment for their stroke with manual fine tuning and digital indication. 5.Adjustment mechanism of sliding block independent from oil cylinder assembly to enhance sealing effect upper mold is fitted with titling warp offset mechanism.
6.Multi machine combined operation is possible.
7. Digital display device(DRO) is equipped;
8. CE is approved;
9. Kinds of colors for your choice/can be Customized according to user's demand;
10. CNC types are available, too;
Kinds of colors for your choice/can be Customized according to user's demand;
Nominal pressure |
The length of the working bench |
Set up the interval of the post to leave |
The throat is a degree of depth |
Slip one highly seals with |
Slippery journeys |
Motor power |
Overall dimensions |
Weight |
KN |
mm |
mm |
mm |
mm |
mm |
KW |
mm |
Kg |
630 |
2500 |
1880 |
250 |
320 |
100 |
5.5 |
2600×1600×2300 |
5000 |
800 |
3200 |
2600 |
320 |
380 |
120 |
7.5 |
3300×1700×2300 |
6800 |
1000 |
4000 |
3100 |
320 |
450 |
150 |
7.5 |
4100×1800×2400 |
8000 |
1250 |
4000 |
3300 |
320 |
400 |
150 |
7.5 |
4060×1800×2500 |
9000 |
1600 |
4000 |
3200 |
320 |
450 |
200 |
11 |
4000×2000×2600 |
13000 |
2000 |
4000 |
3200 |
320 |
465 |
200 |
11 |
4100×2100×2900 |
15000 |
2000 |
6000 |
5100 |
320 |
465 |
200 |
13 |
6100×2500×3000 |
23000 |
2500 |
4000 |
3100 |
350 |
460 |
250 |
18.5 |
4100×2200×3500 |
20000 |
3000 |
5000 |
4100 |
400 |
600 |
250 |
22 |
5100×2600×3500 |
27000 |
3200 |
5000 |
4300 |
400 |
560 |
250 |
22 |
5060×2570×3760 |
27000 |
3500 |
6000 |
5100 |
450 |
680 |
250 |
30 |
6100×2600×4200 |
33000 |
4000 |
3200 |
2600 |
350 |
550 |
300 |
30 |
3300×2700×4000 |
27000 |
4000 |
6500 |
5100 |
400 |
620 |
320 |
30 |
6500×2750×4300 |
44000 |
6000 |
6000 |
4820 |
400 |
630 |
320 |
37 |
6050×3000×4900 |
66000 |
6300 |
7000 |
6100 |
400 |
710 |
320 |
45 |
7050×3000×4900 |
82000 |
1, Your inquiry will be replied in 24 hours;
2, Our manufacture/company has been a Gold supplier continuously in this Alibaba website for 7 years. And there is more industry technology experience for 24years with our manufactures;
3, To offer free spare parts and service within one year of warranty;
4, Technical Support Provide operation video for training;
5, Professional after-sales service team;
Call us at any time: +86 -15641121240/15641121140
Fax us:+86-411-84410129
Payment Term:
- 30% down payment, 70% by T/T before shipment;
- 100% LC at sight(optional and shall be discussed before placing order);
Minimum Order Quantity:
- 1 Set;
- ≥2 sets, there will be much discounts.
Warranty:
- Normally, 12 months for parts as of delivery of the machines;
Shipment:
- For machine itself, by sea or train(inland countries).
- For documents, by international express. eg DHL, TNT or EMS.
