Home > Manufacturing & Processing Machinery > Cutting & Fold-bend Machine > Bending Machine > CE Hydraulic Cheap Metal Plate Bending Machine for Sale

CE Hydraulic Cheap Metal Plate Bending Machine for Sale

US$ 13,173 - 64,804 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Liaoning, China

Brand Name:

LFM

Contact Supplier Request Quote Chat Now

Long Life Machinery Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian/Shanghai China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Liaoning, China

Brand Name LFM

Model Number WC67 Series plate bending machine

Machine Type Press Brake

Raw Material Sheet / Plate Rolling

Material / Metal Processed Carbon Steel

Power Hydraulic

Automation Manual

Extra Services Cut To Length

Certification CE

After-sales Service Provided Engineers available to service machinery overseas

CE hydraulic metal plate bending machine

Characteristics

The hydraulic metal plate bending machine has following features:

1. Steel welding frame, sufficient strength and rigidity.

2. Hydraulic driving system, safety and reliable operation, and fine appearance.

3. A motor-driving adjustment device of slipper stroke;

4. A motor-driving adjustment device for the plate-length positioning device, a manual fine adjuster, a counter, a wedge-type precision adjustment device over an upper mould.

Thus, processing precision can be assured.

5. The machine tool about the engine bed and behind is equipped with safety feature in the left and right as well as behind, the electric apparatus cabinet is equipped with circuit breaker and around is equipped with the emergency switch to install the system, and have the pedal switch, to guarantee operational safety.

6. Digital display device(DRO) is equipped;

7. CE is approved;

8. Kinds of colors for your choice/can be Customized according to user's demand;

9. CNC types are available, too;

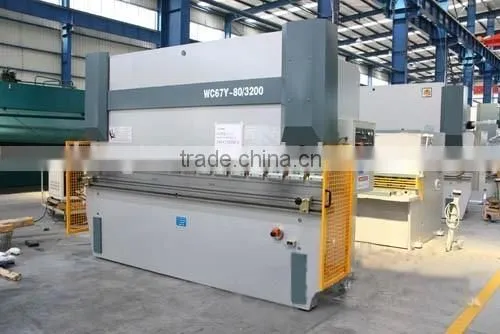

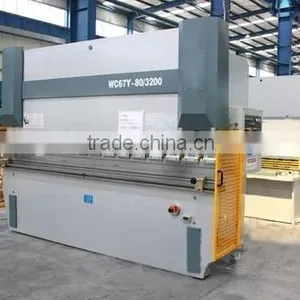

Real Photos:

Kinds of colors for your choice/can be Customized according to user's demand;

Main Technical Data

hydraulic metal plate bending machine's technical information:

Nominal pressure	The length of the working bench	Set up the interval of the post to leave	The throat is a degree of depth	Slip one highly seals with	Slippery journeys	Motor power	Overall dimensions	Weight
KN	mm	mm	mm	mm	mm	KW	mm	Kg
630	2500	1880	250	320	100	5.5	2600×1600×2300	5000
800	3200	2600	320	380	120	7.5	3300×1700×2300	6800
1000	4000	3100	320	450	150	7.5	4100×1800×2400	8000
1250	4000	3300	320	400	150	7.5	4060×1800×2500	9000
1600	4000	3200	320	450	200	11	4000×2000×2600	13000
2000	4000	3200	320	465	200	11	4100×2100×2900	15000
2000	6000	5100	320	465	200	13	6100×2500×3000	23000
2500	4000	3100	350	460	250	18.5	4100×2200×3500	20000
3000	5000	4100	400	600	250	22	5100×2600×3500	27000
3200	5000	4300	400	560	250	22	5060×2570×3760	27000
3500	6000	5100	450	680	250	30	6100×2600×4200	33000
4000	3200	2600	350	550	300	30	3300×2700×4000	27000
4000	6500	5100	400	620	320	30	6500×2750×4300	44000
6000	6000	4820	400	630	320	37	6050×3000×4900	66000
6300	7000	6100	400	710	320	45	7050×3000×4900	82000
