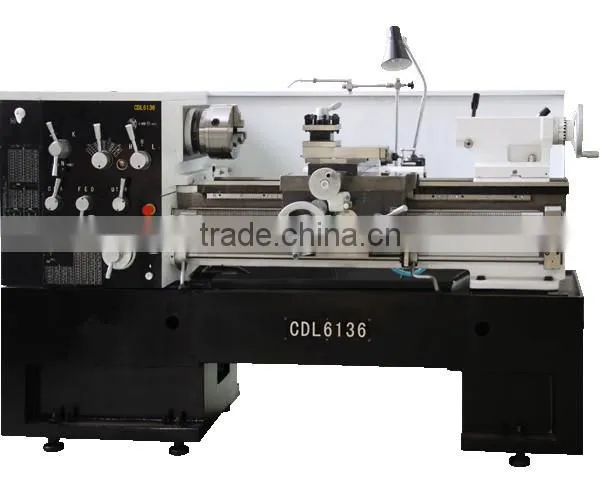

CDL6236x750 Small High Speed Universal Metal Lathe Machine for Repairs

CDL6236x750 Small High Speed Universal Metal Lathe Machine for Repairs thumbnail-1
CDL6236x750 Small High Speed Universal Metal Lathe Machine for Repairs thumbnail-2
CDL6236x750 Small High Speed Universal Metal Lathe Machine for Repairs photo-1
CDL6236x750 Small High Speed Universal Metal Lathe Machine for Repairs photo-2
US$ 5,311 - 5,411 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
CNC or Not:
Normal
Contact Supplier Request Quote Chat Now
Long Life Machinery Import And Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Horizontal
CNC or Not Normal
Automatic Grade Manual
Max. Swing Diameter 360mm
Place of Origin Liaoning, China
Brand Name DALIAN
Model Number CDL6236x750 universal metal lathe machine
Voltage 220V 380V 400V 415V 440V 480V
Power(W) 3/4.5kW
Dimension(L*W*H) 2230x1090x2000mm
Weight 1228kgs
Certification ISO9001:2008; GB/T19001:2008
After-sales Service Provided Engineers available to service machinery overseas
CDL6236x750 small universal metal lathe machine
Main Featurers:
  1. Standard: spindle head is C6, Spindle hole: Φ48 mm
  2. Spindle head is D6, spindle hole: Φ52 mm;
  3. Guide rail width:300mm;
  4. Guide rail hardness:HRC50, Depth1.5mm;
  5. Hardened and ground guide ways;
  6. Maximum load capacity between two centers: 300kg
  7. Standard: the lathe is equipped with left-handed wheel;
  8. Right-handed wheel shall be informed specially when placing order;
  9. Three boxes are all self inside lubricating;
  10. Machine tool bed box are non-clutch;
  11. CE Certificate is not provided;
Main Technical Data:

Specifications

Unit

CDL6236 metal lathe machine

Max swing over bed

mm

360

Max swing over carriage

mm

180

Center distance

mm

750

Max swing in gap

mm

590

Width of bed

mm

300

Spindle nose



C6/D6

Spindle bore

mm

48/52

Taper of spindle bore



M6

Spindle speeds

rpm

32~2000 (12 speed)

Range of inch threads

TPI

2~56

Range of metric threads

mm

0.5~14

Range of module threads

mm

0.5~14

Range of Di metrical pitch thread

D.P

2~56

Longitudinal feed

mm/rev

0.06~0.82 (0.002"~0.032"/r)

Cross feed

mm/rev

0.017~0.242 (0.007"~0.0095"/r)

Lead screw diameter

mm

36

Pitch of lead screw

mm

6

Taper of tailstock quill



M4

Travel of tailstock quill

mm

150

Diameter of tailstock quill

mm

60

Power of main motor

kW

3/4.5 (4/6HP)

Power of coolant motor

W

90(0.125HP)

Net weight

kg

1228

Gross weight

kg

1378

WOODEN CASES

STEEL PALLET  (L×W×H)

mm

2230×1090×2000

2070×1100×1780
Real Photos:

CDL6236x750 small high speed universal metal lathe machine for repairs

Photos of Workshop

CDL6236x750 small high speed universal metal lathe machine for repairs

CDL6236x750 small high speed universal metal lathe machine for repairs

CDL6236x750 small high speed universal metal lathe machine for repairs

CDL6236x750 small high speed universal metal lathe machine for repairs
