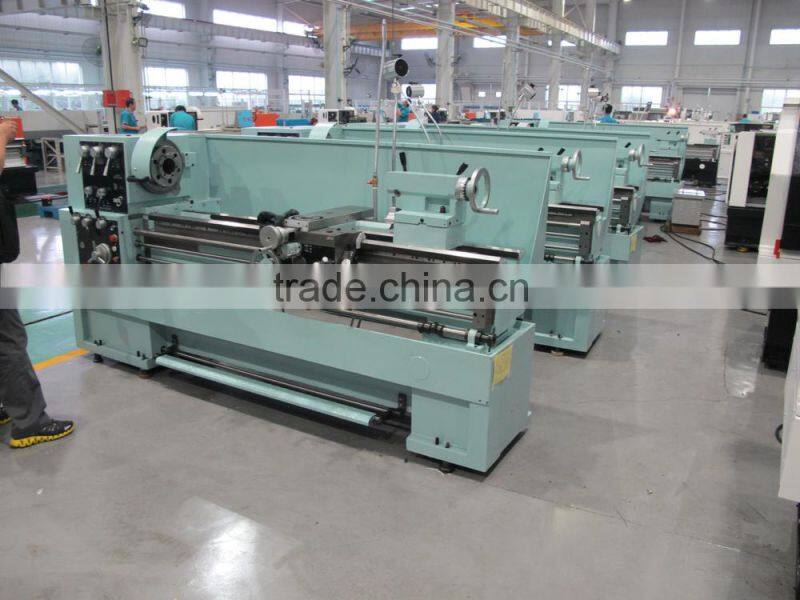

CDL6241x1000 high speed universal turning lathe
- Standard: spindle head is C6, Spindle hole: Φ48 mm
- Spindle head is D6, spindle hole: Φ52 mm;
- Guide rail width:300mm;
- Guide rail hardness:HRC50, Depth1.5mm;
- Hardened and ground guide ways;
- Maximum load capacity between two centers: 300kg
- Standard: the lathe is equipped with left-handed wheel;
- Right-handed wheel shall be informed specially when placing order;
- Three boxes are all self inside lubricating;
- Machine tool bed box are non-clutch;
- CE Certificate is not provided;
CDL6241x1000 high speed universal turning lathe's technical information:
Specifications |
Unit |
Parameter |
Max swing over bed |
mm |
410 |
Max swing over carriage |
mm |
230 |
Center distance |
mm |
1000 |
Max swing in gap |
mm |
640 |
Width of bed |
mm |
300 |
Spindle nose |
|
C6/D6 |
Spindle bore |
mm |
48/52 |
Taper of spindle bore |
|
M6 |
Spindle speeds |
rpm |
32~2000 (12 speed) |
Range of inch threads |
TPI |
2~56 |
Range of metric threads |
mm |
0.5~14 |
Range of module threads |
mm |
0.5~14 |
Range of Diametrical pitch thread |
D.P |
2~56 |
Longitudinal feed |
mm/rev |
0.06~0.82 (0.002"-0.032"/r) |
Cross feed |
mm/rev |
0.017~0.242 (0.007"-0.0095"/r) |
Lead screw diameter |
mm |
36 |
Pitch of lead screw |
mm |
6 |
Taper of tailstock quill |
|
M4 |
Travel of tailstock quill |
mm |
150 |
Diameter of tailstock quill |
mm |
60 |
Power of main motor |
kW |
3/4.5 (4/6HP) |
Power of coolant motor |
W |
90W(0.125HP) |
Net weight |
kg |
1390 |
Gross weight |
kg |
1585 |
|
WOODEN CASES STEEL PALLET (L×W×H) |
mm |
2480×1090×2000 2300×1100×1780 |
1, Your inquiry will be replied in 24 hours;
2, Our manufacture/company has been a Gold supplier continuously in this Alibaba website for 6 years. And there is more industry technology experience for 24years with our manufactures;
3, To offer free spare parts and service within one year of warranty;
4, Technical Support Provide operation video for training;
5, Professional after-sales service team;
Call us at any time: +86 -15641121240/15641121140
Fax us:+86-411-84410129
Payment Term:
- 30% down payment, 70% by T/T before shipment;
- 100% LC at sight(optional and shall be discussed before placing order);
Minimum Order Quantity:
- 1 Set;
- ≥2 sets, there will be much discounts.
Warranty:
- Normally, 12 months for parts as of delivery of the machines;
Shipment:
- For machine itself, by sea or train(inland countries).
- For documents, by international express. eg DHL, TNT or EMS.
