Home > Manufacturing & Processing Machinery > Machine Tools > Lathe > Large Horizontal GAP Lathe Hot-sale CW6280Ex3000

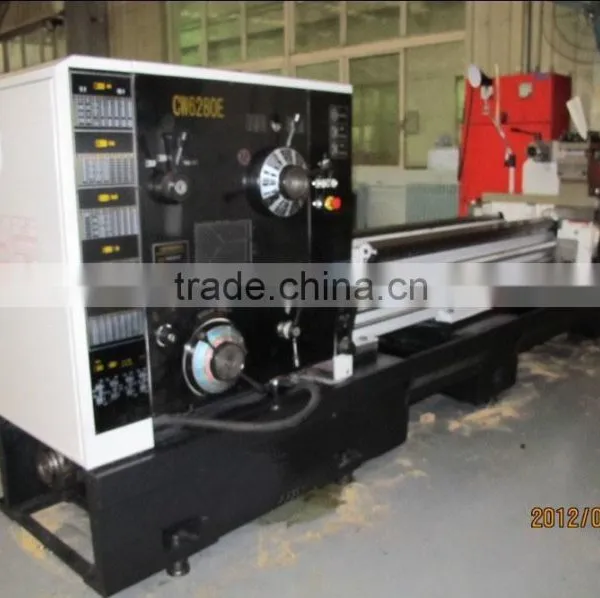

Large Horizontal GAP Lathe Hot-sale CW6280Ex3000

Name: Large Horizontal GAP Lathe Hot-sale CW6280Ex3000
Brand: DALIAN
SKU: 102718311
Availability: InStock

Large Horizontal GAP Lathe Hot-sale CW6280Ex3000 thumbnail-1

Large Horizontal GAP Lathe Hot-sale CW6280Ex3000 photo-1

US$ 12,130 - 30,880 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Horizontal

CNC or Not:

Normal

Contact Supplier Request Quote Chat Now

Long Life Machinery Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Horizontal

CNC or Not Normal

Automatic Grade Semi-Automatic

Max. Swing Diameter 1000mm

Place of Origin Liaoning, China

Brand Name DALIAN

Model Number CW6263E CW6280E CW62100E

Voltage 3Phx220V 380V 400V 415V 440V 480V, 50/60Hz

Power(W) 11/15kW

Certification ISO9001:2008; GB/T19001:2008

After-sales Service Provided Engineers available to service machinery overseas

CW Lathe machine specification

It can machine inner circle, outer circle, and end and head surface, taper surface. Gap lathe can process the deformation parts. Function is including the drilling and reaming. Metric, inch, diametrical pitch, module thread.The bed is made of high-grade cast iron The bed is undergoing surface quenching, the hardness can be HRC50.The noise can be under 83(A)

Item		CW6263E	CW6280CE	CW62100E
Max. swing over bed		630mm	800mm	1000mm
Max. swing over carriage		350mm	520mm	720mm
Center distance		750mm 1000mm 1500mm 2000mm 3000mm 4000mm 5000mm 6000mm
Width of gap		320mm
Swing over gap		800mm	1000mm	1230mm
Width of guide way		550mm
Spindle bore diameter		100 mm	105 mm	130mm
Spindle speed		(18 speeds) 7.5~1000rpm
Longitudinal feed		(64) 0.1~24.3mm/r
Cross feed		(64) 0.05~12.15mm/r
Rapid traverse speed		3.8m/min
Metric thread		(39)1~240mm
Inch thread		(26) 14~1TPI
Module thread		(53) 0.5~120mm
Diametrical pitch thread		(24) 28~1
Max. travel of cross slide		445mm	493mm	493mm
Travel of top slide		200mm
Main motor power		11kW
Rapid traverse motor power		1.1kW
Coolant pump motor power		0.09kW
Wooden box/Pallet packing	750mm	3940×1150×2080/3840×1100×1920
		4450/3550kg	4600/3730kg	5000/4050kg
	1000mm	3490×1150×2080/3390×1100×1920
		4750/3550kg	4950/3730kg	5450/4050kg
	1500mm	3940×1150×2080/4420×1100×1920
		5250/2850kg	5450/4030kg	5850/4350kg
	2000mm	4560×1150×2080/5200×1100×1920
Gross/Net weight		5650/4150kg	5850/4330kg	6250/4560kg
	3000mm	5460×1150×2080/5270×1100×1920
		6250/4650kg	6450/4830kg	6850/5150kg
	4000mm	6520×1150×2080/7310×1100×1920
		7150/5450kg	7800/6100kg	8200/6250kg
	5000mm	7600×1150×2080/7350×1100×1920
		7950/6250kg	8500/6450kg	8900/6750kg
