Heat Insulation Ceramic Fiber Module Aluminum Silicate Ceramic Fiber Module for Industrial Furnace

Heat Insulation Ceramic Fiber Module Aluminum Silicate Ceramic Fiber Module for Industrial Furnace thumbnail-1
Heat Insulation Ceramic Fiber Module Aluminum Silicate Ceramic Fiber Module for Industrial Furnace thumbnail-2
Heat Insulation Ceramic Fiber Module Aluminum Silicate Ceramic Fiber Module for Industrial Furnace thumbnail-3
Heat Insulation Ceramic Fiber Module Aluminum Silicate Ceramic Fiber Module for Industrial Furnace thumbnail-4
Heat Insulation Ceramic Fiber Module Aluminum Silicate Ceramic Fiber Module for Industrial Furnace thumbnail-5
Heat Insulation Ceramic Fiber Module Aluminum Silicate Ceramic Fiber Module for Industrial Furnace thumbnail-6
Heat Insulation Ceramic Fiber Module Aluminum Silicate Ceramic Fiber Module for Industrial Furnace photo-1
Heat Insulation Ceramic Fiber Module Aluminum Silicate Ceramic Fiber Module for Industrial Furnace photo-2
Heat Insulation Ceramic Fiber Module Aluminum Silicate Ceramic Fiber Module for Industrial Furnace photo-3
Heat Insulation Ceramic Fiber Module Aluminum Silicate Ceramic Fiber Module for Industrial Furnace photo-4
Heat Insulation Ceramic Fiber Module Aluminum Silicate Ceramic Fiber Module for Industrial Furnace photo-5
Heat Insulation Ceramic Fiber Module Aluminum Silicate Ceramic Fiber Module for Industrial Furnace photo-6
Negotiable MOQ: 50 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Yaoxing
Model Number:
YXTX-489
Contact Supplier Request Quote Chat Now
Zibo Yao Xing Fire-Resistant And Heat-Preservation Material Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name Yaoxing
Model Number YXTX-489
Application heat insulation material, Insulation of industrial kiln
Grade HA (High Aluminum)
Dimensions 300*300*200/250mm
Working Temperature 1100C
Fiber Diameter 3um
Thermal Conductivity 0.075
Shrinkage (1800℉, 3h) <3%
Product Description







Ceramic Fiber Modules

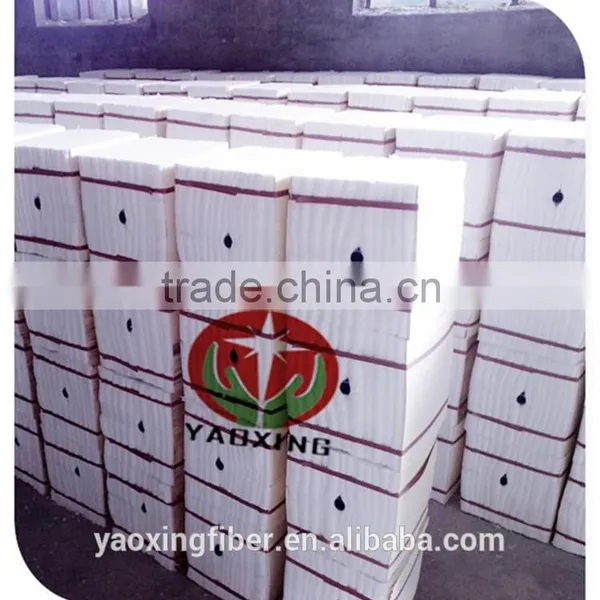

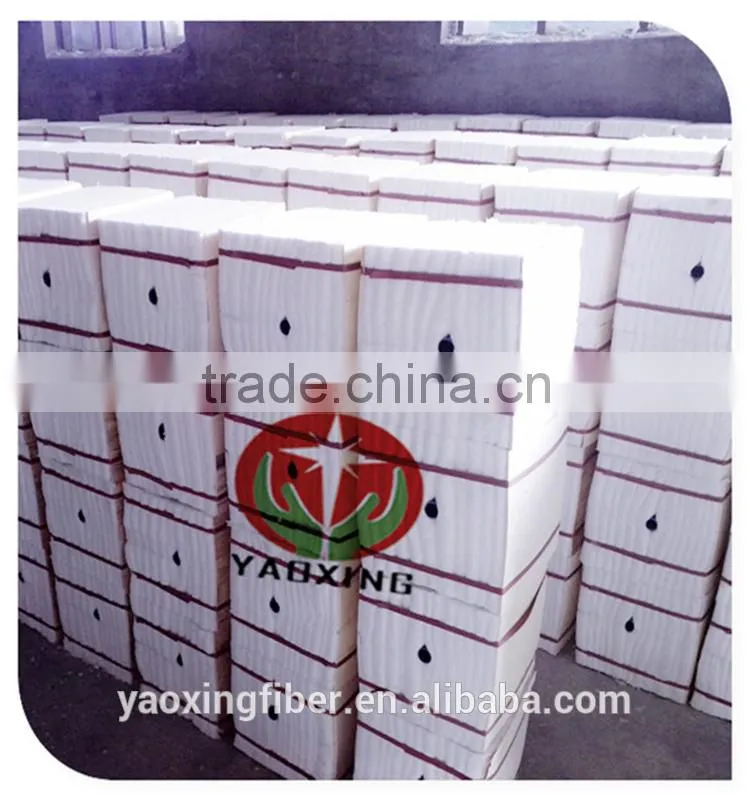

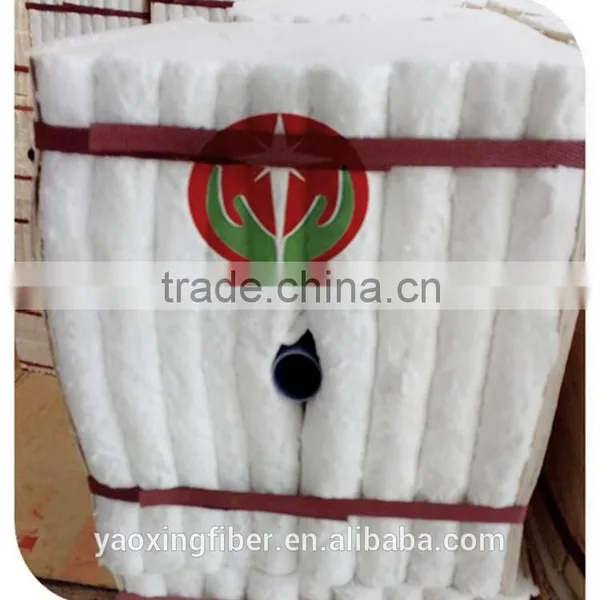

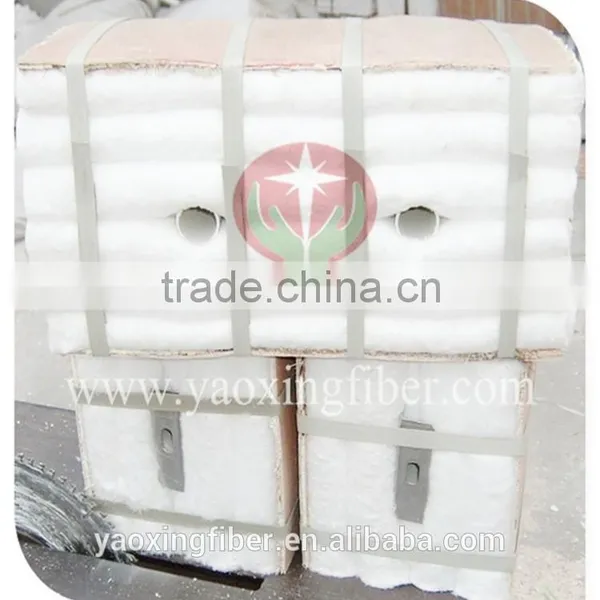

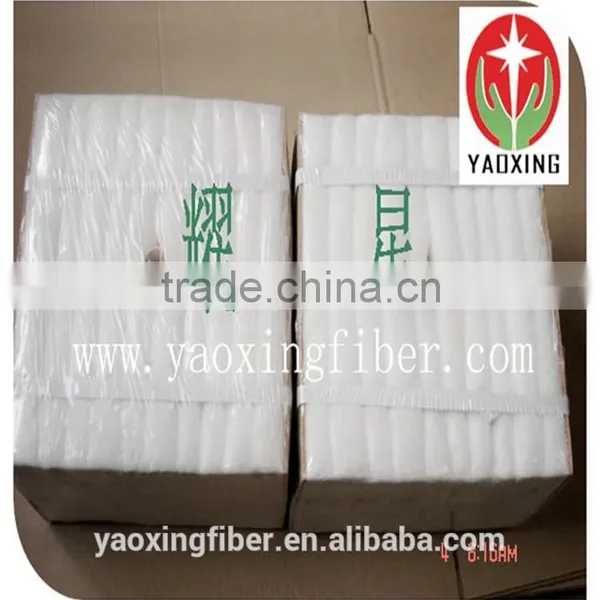

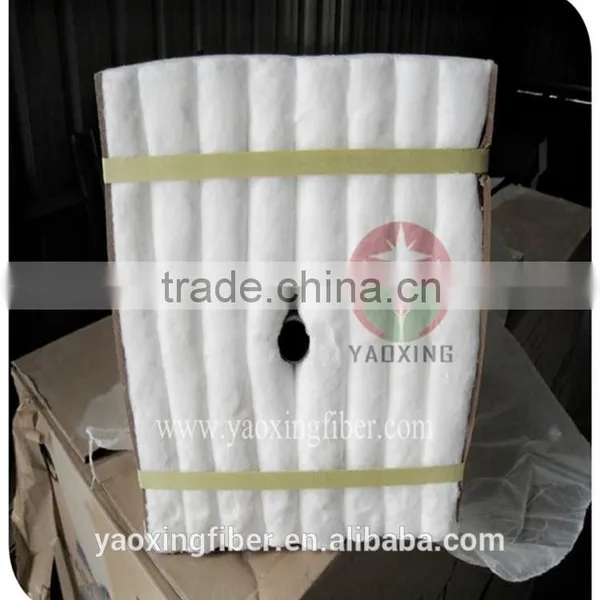

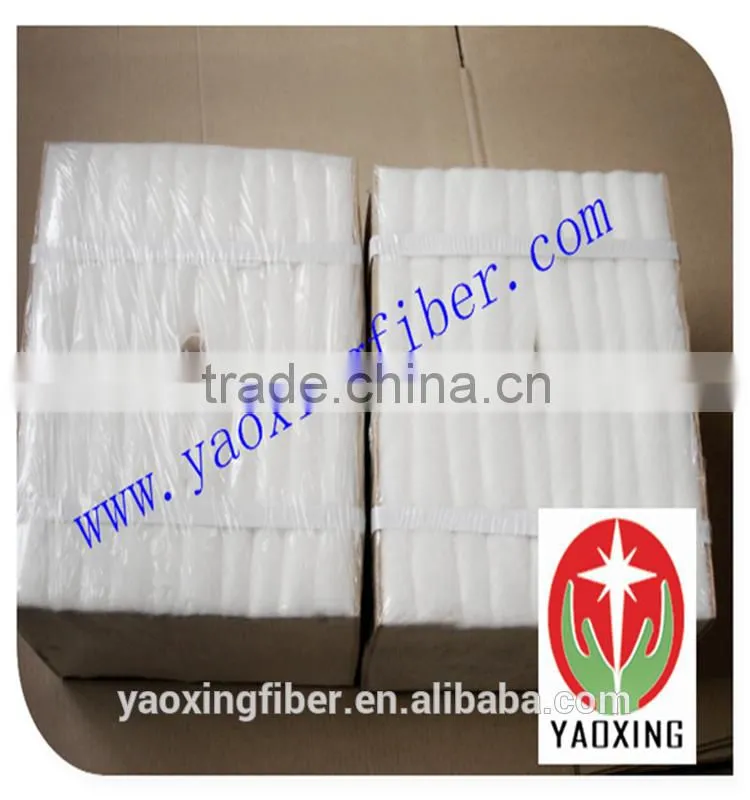

YAO XING modules are made from ceramic fiber blanket stacked with cut edges exposed, and anchor systems to enable quick, easy and efficient installation in most furnace linings. These prefabricated modules are designed to meet the thermal insulation requirements of high temperature furnaces.
Classification Temperature:1050°C ,1260°C, 1360°C, 1430°C
Density: 200/220kg/m3

Advantages

 Excellent thermal and physical stability
 Low thermal conductivity
 Low heat storage
 Excellent corrosion resistance
 Faster temperature cycling

 Fast and easy installation

Availabilities

 300mm x 300mmx 200~300mm (Thickness)

 Custom sizes available upon request
 Z-Block modules are available upon request,





Applications



 Oil heaters
 Reformer
 Forge furnaces
 Process heaters
 Preheating furnaces

 Crude oil heaters
 Fume incinerators
 Tunnel kilns
 Cracking Furnaces
 Shuttle kilns
 Annealing furnaces







Technical Index

Classification

Temperature

1050

1260

1400

Code

YXTX-189

YXTX-289

YXTX-389

TXTX-489

TXTX-589

Shrinkage on Heating (%)

950°C×24h

≤-3

1000°C×24h

≤-3

1100°C×24h

≤-3

1200°C×24h

≤-3

1350°C×24h

≤-3

Theoretical

Density (kg/m3)

200±10

Shot Content

(φ≥0.25mm)(%)

≤15

Theoretical

Thermal Conductivity

(W/m·k)

0.050-0.060(200°C)

0.095-0.120(400°C)

0.160-0.195(600°C)

 Al2O3 (%)

≥44

≥45

≥45

52-55

38-40

Al2O3+SiO2 (%)

≥96

≥97

≥99

≥99

-

ZrO2 (%)

-

-

-

-

15-17

Al2O3+SiO2+ ZrO2 (%)

-

-

-

-

≥99

Fe2O3 (%)

≤1.2

≤1.0

≤0.2

≤0.2

≤0.2

K2O+Na2O (%)

≤0.5

≤0.5

≤0.2

≤0.2

≤0.2

 Specification (mm)

300×300×200,According to your requirements

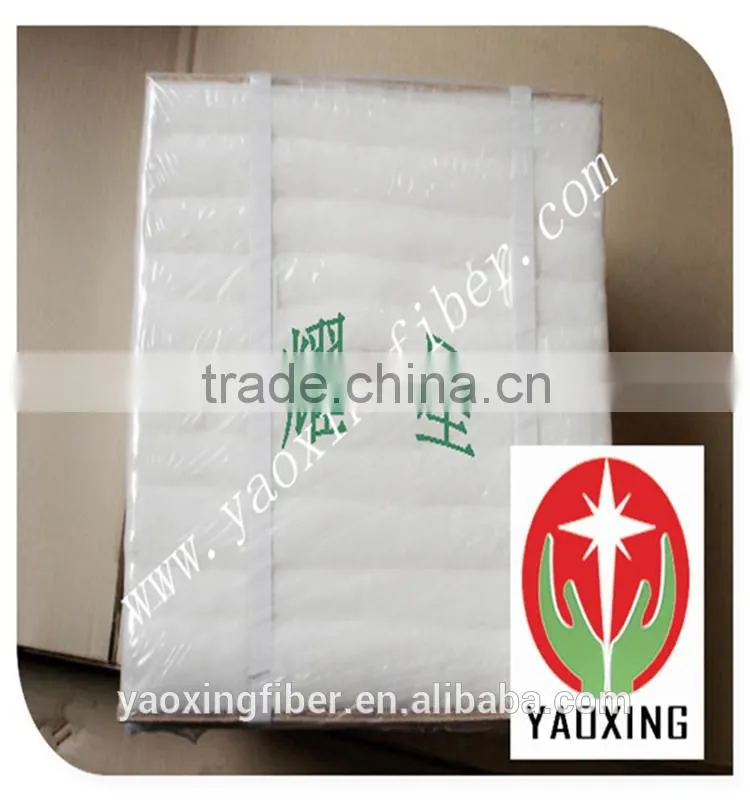

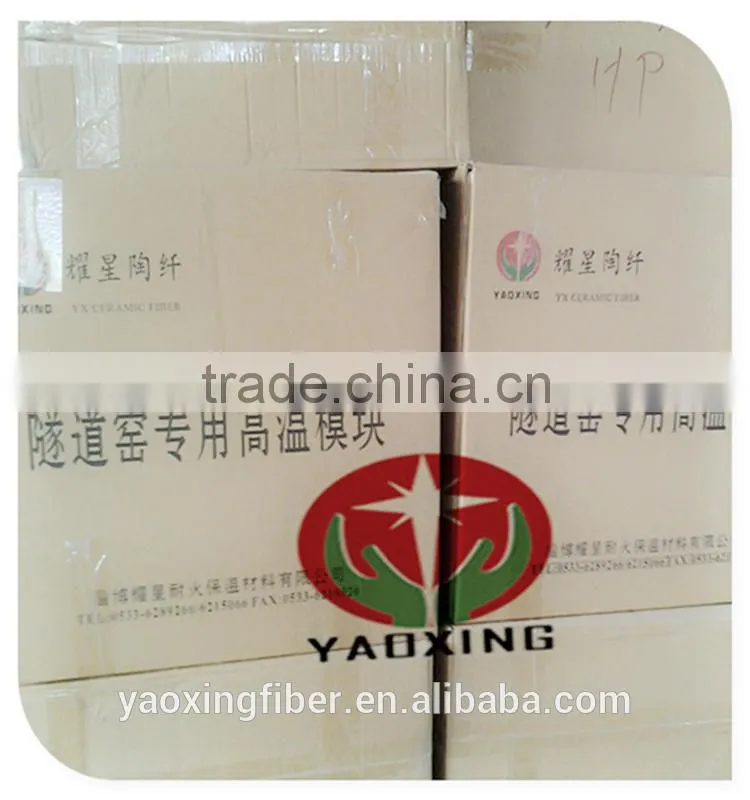

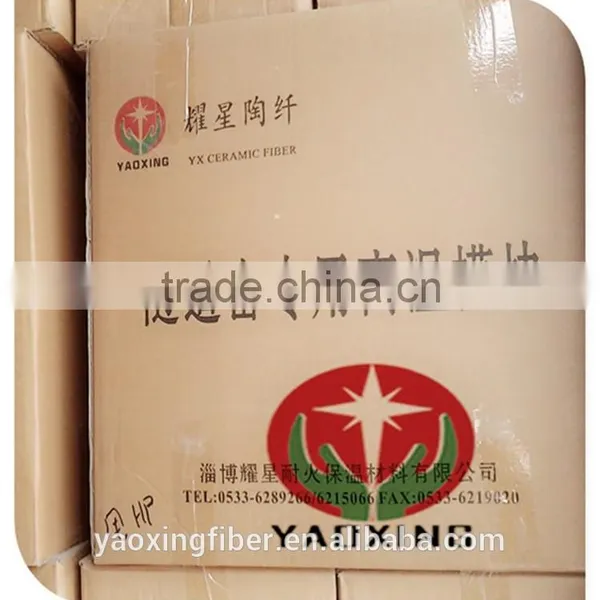

Package

Woven Bag/Carton

Quality Control System

ISO9001-2000 ,ISO14001-1996
