Negotiable MOQ: 80 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
YaoXing
Model Number:
YXTX-489
Contact Supplier Request Quote Chat Now
Zibo Yao Xing Fire-Resistant And Heat-Preservation Material Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name YaoXing
Model Number YXTX-489
Application refractory material, Industrial furnace
Grade HA (High Aluminum)
Dimensions 300*300*200/250mm
Working Temperature 1200C
Fiber Diameter 3um
Thermal Conductivity 0.045
Shrinkage (1800℉, 3h) <3%









Product Description

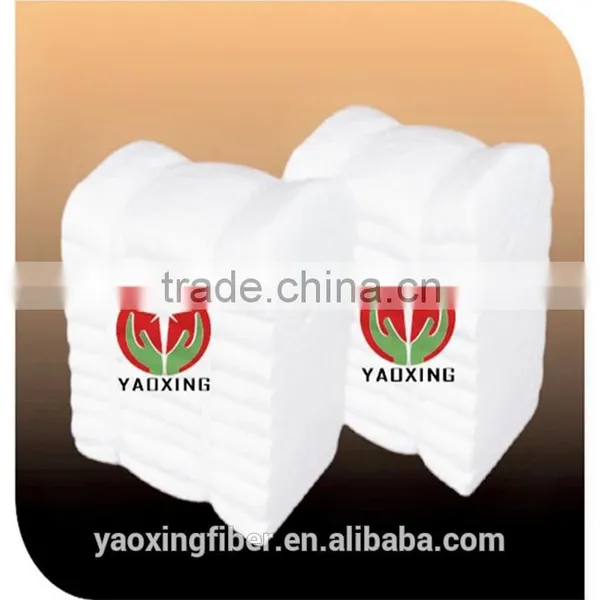

Ceramic Fiber Module

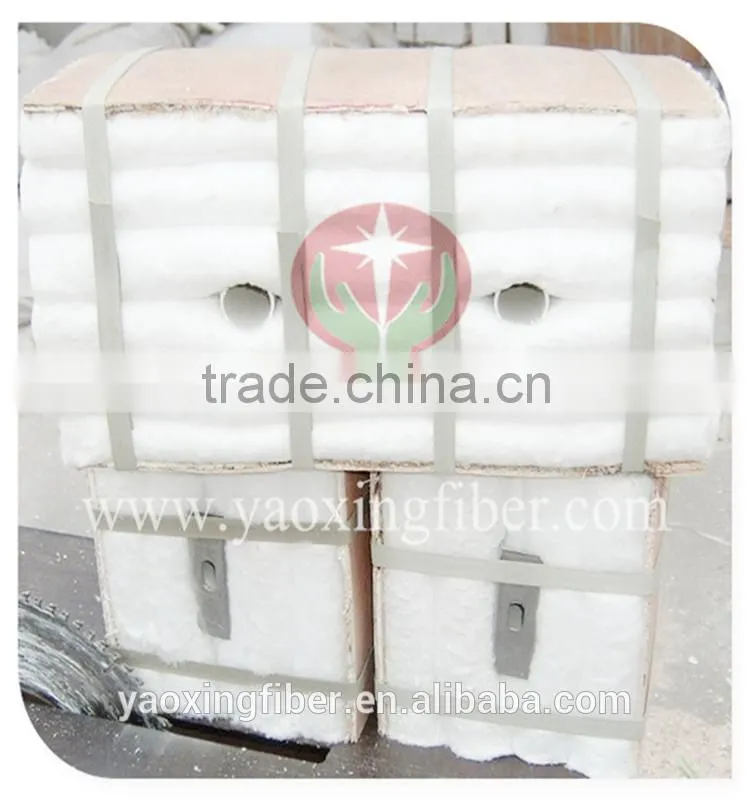

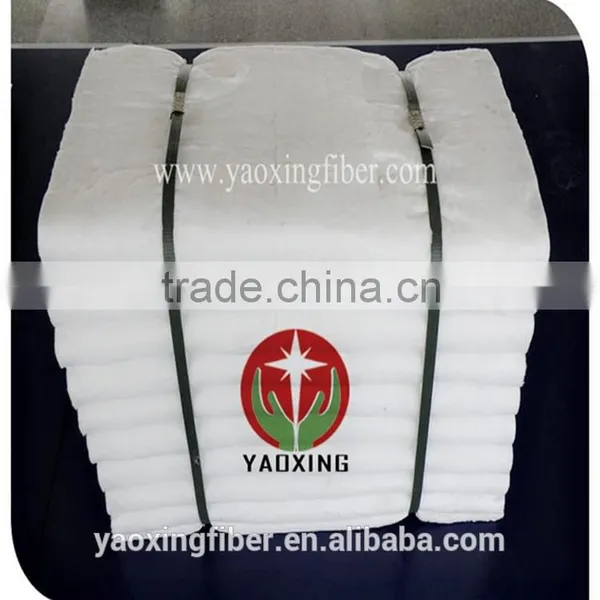

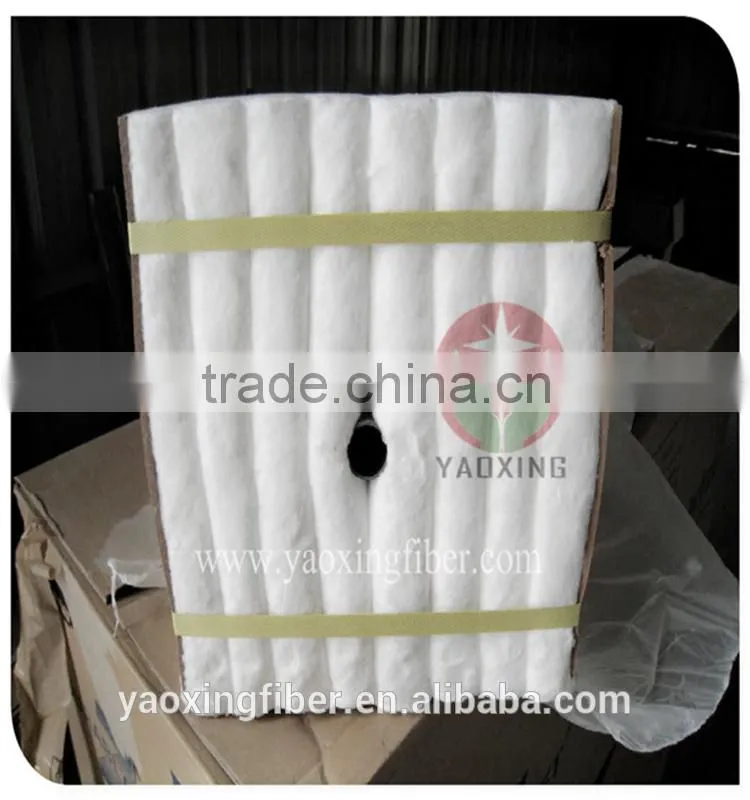

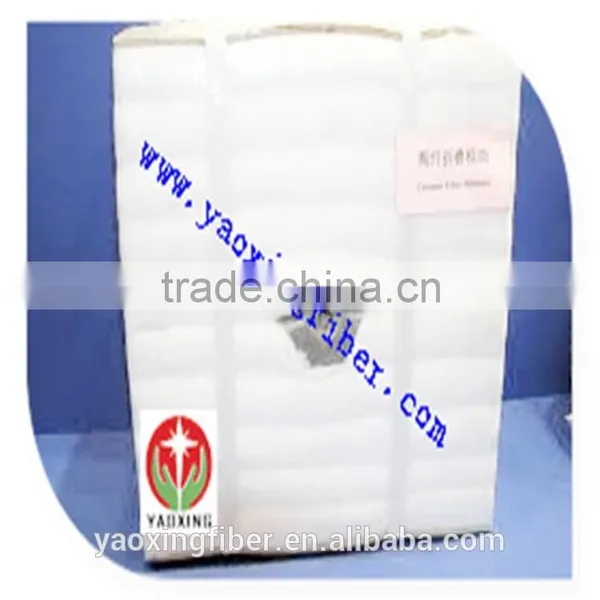

YAO XING modules are made from ceramic fiber blanket stacked with cut edges exposed,

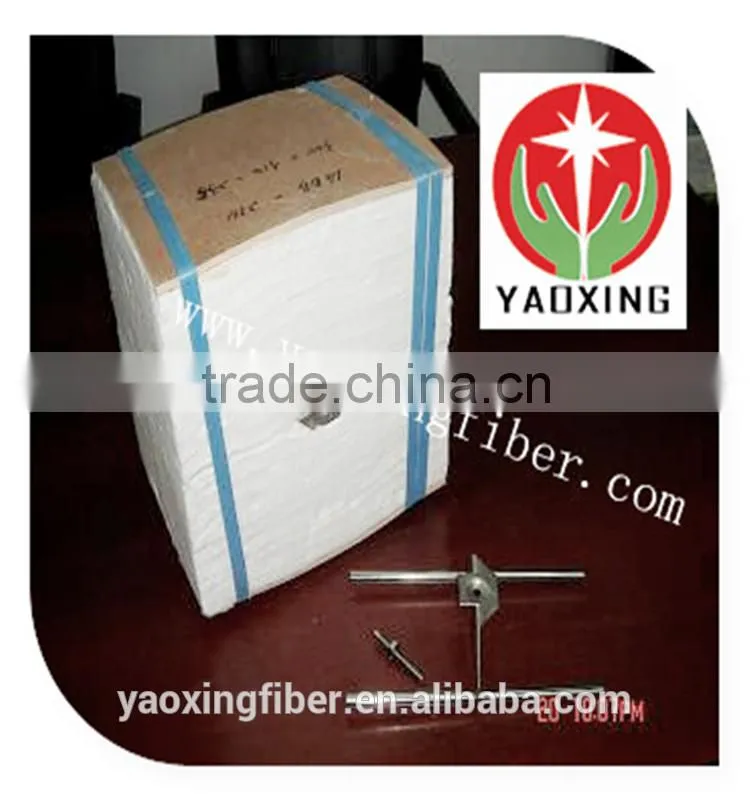

and anchor systems to enable quick, easy and efficient installation in most furnace linings.

These prefabricated modules are designed to meet the thermal insulation requirements of

high temperature furnaces.
Classification Temperature: 1050°C ,1260°C, 1400°C,
Density: 200/220kg/m3

Advantages



1. Excellent thermal and physical stability
2. Low thermal conductivity
3. Low heat storage
4. Excellent corrosion resistance
5. Faster temperature cycling

6. Fast and easy installation



Availabilities

 300mm x 300mmx 200~300mm (Thickness)

 Custom sizes available upon request
 Z-Block modules are available upon request,





Applications



 1.Oil heaters

 2.Reformer
 3.Forge furnaces
 4.Process heaters
 5.Preheating furnaces

 6.Crude oil heaters
 7.Fume incinerators
 8.Tunnel kilns
 9.Cracking Furnaces
10.Shuttle kilns
11.Annealing furnaces











Technical Index:

Classification

Temperature

1050

1260

1400

Code

YXTX-189

YXTX-289

YXTX-389

TXTX-489

TXTX-589

Shrinkage on

Heating(%)

950°C×24h≤-3

1000°C×24h≤-3

1100°C×24h≤-3

1200°C×24h≤-3

1350°C×24h≤-3

Theoretical Density

(kg/m3)

200±10

Shot Content

(φ≥0.25mm)(%)

≤15

Theoretical

Thermal

Conductivity

(W/m·k)

0.050-0.060(200°C)

0.095-0.120(400°C)

0.160-0.195(600°C)

 Al2O3 (%)

≥44

≥45

≥45

52-55

38-40

Al2O3+SiO2 (%)

≥96

≥97

≥99

≥99

-

ZrO2 (%)

-

-

-

-

15-17

Al2O3+SiO2+ ZrO2 (%)

-

-

-

-

≥99

Fe2O3 (%)

≤1.2

≤1.0

≤0.2

≤0.2

≤0.2

K2O+Na2O (%)

≤0.5

≤0.5

≤0.2

≤0.2

≤0.2

 Specification (mm)

300×300×200,According to your requirements

Package

Woven Bag/Carton

Quality Control

System

ISO9001-2000 ,ISO14001-1996





Packaging & Shipping



 High aluminum ceramic fiber module high temperature ceramic fiber module thermal insulation ceramic fiber moduleHigh aluminum ceramic fiber module high temperature ceramic fiber module thermal insulation ceramic fiber moduleHigh aluminum ceramic fiber module high temperature ceramic fiber module thermal insulation ceramic fiber moduleHigh aluminum ceramic fiber module high temperature ceramic fiber module thermal insulation ceramic fiber moduleHigh aluminum ceramic fiber module high temperature ceramic fiber module thermal insulation ceramic fiber moduleHigh aluminum ceramic fiber module high temperature ceramic fiber module thermal insulation ceramic fiber module





Our Services







Prompt reply within 24 hours without delay by our specialized after-sale service sector.

Provide high temperature solutions and professionals construction services for different

fields for our customers.

Provide the most reasonable logistics for customers to save every penny.

Production of goods are finished, thoughtful provide products and packaging photos

for our customers.
