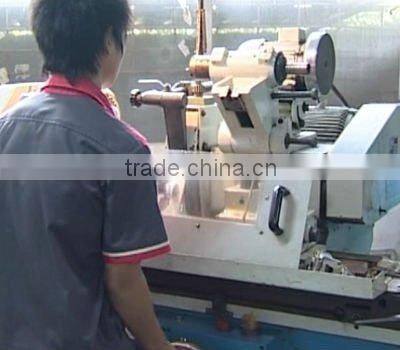

M1450x3000 Universal Cylinderical Grinding Machine

US$ 94,000 - 94,638 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Cylindrical Grinding Machine

CNC or Not:

Normal

Long Life Machinery Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian Shanghai China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Cylindrical Grinding Machine

CNC or Not Normal

Max. Grinding Diameter 500mm

Max. Grinding Length 3000mm

Place of Origin Shanghai, China

Brand Name LFM

Model Number M1450x3000

Voltage 3Phx220V 380V 400V 415V 440V 480V, 50/60Hz

Power(W) 15kW

Dimension(L*W*H) 10240x2680x1560mm

Weight 11350kgs

Certification CE; ISO9001:2008; GB/T19001:2008

After-sales Service Provided Engineers available to service machinery overseas

M1450x3000 Universal Cylindrical Grinding Machine

Machine Features:

a. Wheel bearings hybrid bearing, high accuracy and good rigidity

b. The first frame spindle driven by a DC motor, variable speed within the speed range.

c. Tailstock by a dense ball in the form of its rigidity.

d. With a grinding machine indicator to facilitate high-precision grinding of the workpiece.

Accuracy Test:

External Circularity 0.0015 mm
Internal Circularity 0.0025 mm
Circularity Ra0.32 m
Surface roughness Ra0.63 µm

Specifications	Unit	Parameter
Max. dia. to be ground (O.D./I.D.)	mm	Φ500/200
Max. work piece length to be ground (O.D./I.D.)	mm	1500, 2000,3000/320
piece weight to be ground	kg	1000
Wheel size (O.D × W × I.D),(for cylinder)	mm	Φ500×75×Φ305
Wheel spindle rotating speed	r/min	1330/665
Internal grinding attachment rotating speed	r/min	10000,6000,4200,3000
Center height	mm	270
Max. worktable traverse	mm	1500,2000,3000
Max. worktable speed	m/min	3
Wheel peripheral speed	m/s	35
Wheelhead rapid approach and withdrawal travel	mm	100
Automatic infeed (coarse/fine)	mm	0.02/0.0025
Manual microfeed (coarse/fine)	mm	0.02/0.0025
Hydraulic pump capacity	ml/r	17.3
Hydraulic pump pressure	Mpa	6.3
Coolant ccapacity	l/min	50
Total motor power	KW	14.08
Wheelhead motor power	KW	5/7.5 (for outer circle grinding) 1.5 (for inner circle grinding)
Machine weight (net weight)	kg	11350
Overall dimensions (L×W×H)	mm	10240×2680×1560
