Home > Manufacturing & Processing Machinery > Machine Tools > Grinding Machine > Catalouge of M13/14 Cylindrical Grinding Machine

Catalouge of M13/14 Cylindrical Grinding Machine

US$ 13,000 - 35,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Cylindrical Grinding Machine

CNC or Not:

Normal

Contact Supplier Request Quote Chat Now

Long Life Machinery Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Cylindrical Grinding Machine

CNC or Not Normal

Max. Grinding Diameter 500mm

Max. Grinding Length 3000mm

Place of Origin Liaoning, China

Brand Name LFM

Model Number M13/14 cylindrical grinding machine

Voltage 220V 380V 400V 415V 440V 480V

Power(W) 3~15kW

Dimension(L*W*H) Depends

Weight Depends

Certification CE; ISO9001:2008; GB/T 19001:2008

After-sales Service Provided Engineers available to service machinery overseas

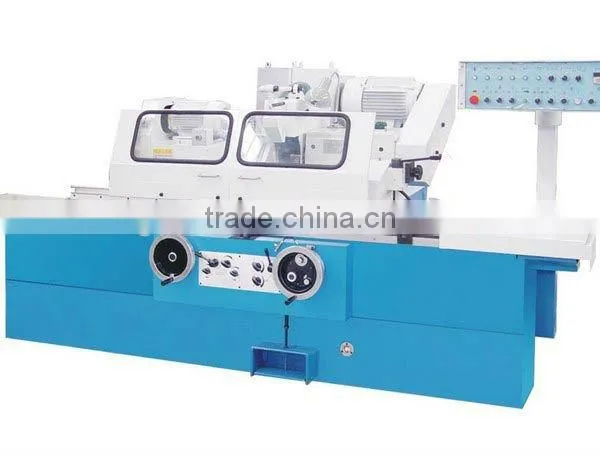

M13/14 Series cylindrical grinding machine

Main Features

Such cylindrical grinding machine lathe has following features:

This machine is plain cylindrical grinder, which is mainly used for grinding cylindrical and conical surface of parts, ideal for tool, repair and small & medium-batch workshop.

Worktable longitudinal traverse is actuated at infinitely variable speed by hydraulic means or by hand operation. Wheelhead cross feed is provided with hyd. rapid approach & withdrwal, manual feed. Workpiece, grinding wheel, oil-pump, coolant pump are driven separately by their individual motors.

l CE Standard and CE Certificate;

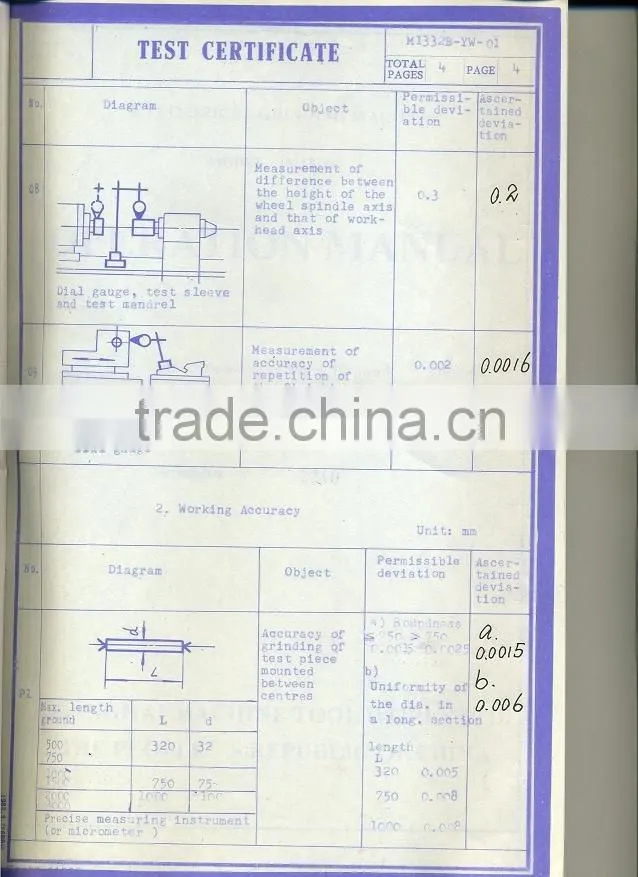

Working Accuracy

Roundness: 0.0015mm

Dia. Uniformity in the long. Section: 0.005mm

Surface roughness: Ra0.32mm

Main Technical Data

SPECIFICATION	Model	M1320E MB1320E	M1332E MB1332E	M1420E MB1420E	M1432E MB1432E	MS1320E MBS1320E	MS1332E MBS1332E
SPECIFICATION	specification	500/ 750/ 1000	500/ 750/ 1000	500/ 750/ 1000	500/ 750/ 1000	500/ 750/ 1000	500/ 750/ 1000
Center height(mm)		125	180	125	180	125	180
Max. length of workpiece between centers(mm)		520 /765 /1080	520 /765 /1080	520 /765 /1080	520 /765 /1080	520 /765 /1080	520 /765 /1080
Max. workpiece diameter for external(mm)		240	350	240	350	240	350
Max. grinding length(mm)		500/ 750/ 1000	500/ 750/ 1000	500/ 750/ 1000	500/ 750/ 1000	500/ 750/ 1000	500/ 750/ 1000
External grinding range (mm)		φ5~φ200	φ5~φ320	φ5~φ200	φ5~φ320	φ5~φ200	φ5~φ320
Max. weight of workpiece between centers(kg)		50	100	50	100	50	100
Grinding wheel	Dimensions(mm)	(Outer diameter×width×bore) 400×(32~50)×203
Grinding wheel	Max. linear velocity (m/sec)	35				50
Swiveling angle of table	Clockwise	9 /8 /3	9/8 /3	9 /8 /3	9 /8 /3	9 /8 /3	9 /8 /3
Swiveling angle of table	Counter-clockwise	9 /8 /7	9 /8 /7	9 /8 /7	9 /8 /7	9 /8/7	9 /8 /7
Total power (kW)		4.975	4.975	5.525	5.525	4.975	4.975
