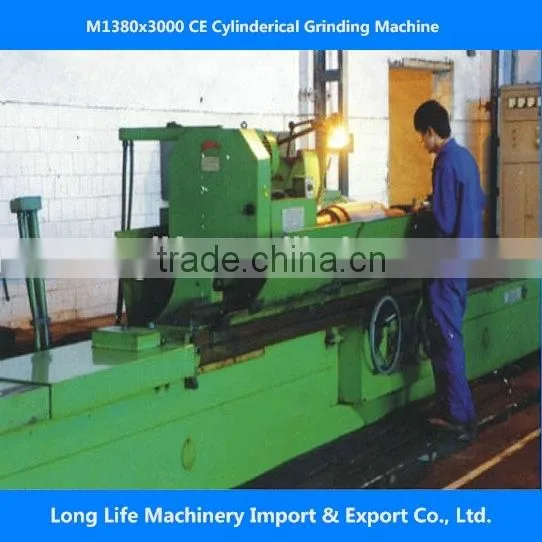

M1380x3000 cylindrical grinding gachine
M1380 cylindrical grinding machine is a plain-type cylindrical grinder, mainly used for grinding cylindrical surface requiring accuracy-class IT6-IT7, suitable for single-piece or small batch production.
Worktable long, movement is carried out by means of hydraulic drive with infinitely variable speed, or by handwheel drive. Wheelhead cross feed is provided with auto. Hydraulic micro intermittent-feed and rapid advance and retract, and also with rough and fine feed by means of handwheel.
Work rotating speed is realized in accor dance with the electric-adjusted infinitely-variable speed, and driven by AC frequency-conversion motor.
Wheel spindle is supported by hydro-satic-pressure bearings, for raising ground surface quality,
Wheelhead cross feed is provided with magnetic-grating digital display unit for displacement, and also equipped with grinding indicator for the convenience of operation.
Open-type screw-throttle hydro-static-pressure guides are adopted as wheelhead carriage and worktable guides with stable working.
External Circularity:0.0015 mm
Internal Circularity: 0.0025 mm
Circularity: Ra0.32 m
Surface roughness: Ra0.63 µm
Specifications |
Unit |
Parameter |
|
Cylindrical dia. to be ground (with steady-rest) |
mm |
Min.φ180 Max.φ500 |
|
Cylindrical dia. to be ground (without steady-rest) |
mm |
Min.φ50 Max. φ800 |
Max. Workpiece Weight |
kg |
3000 |
Max. Grinding Length |
mm |
3000 |
Max. Grinding Diameter |
mm |
φ800 |
Distance between centers |
mm |
3000 |
Height of Center |
mm |
500 |
Worktable Hydraulic driving speed |
m/min |
0.1~2.5 |
Worktable Max. longitudinal stroke |
mm |
3000 |
Speed of driving plate (infinitely) |
r/min |
5~150 |
Tailstock center movement |
mm |
70 |
Headstock and tailstock center tapered-bore |
|
Metric 80 |
Max. cross travel on leadscrew |
mm |
260 |
Wheelhead rapid travel |
mm |
100 |
Spindle rotation speed |
r/min |
362/725 |
Wheel periphery speed |
m/s |
17.5/35 |
Travel per rev. o f infeed handwheel |
mm |
4(Coarse) 0.5 ( Fine) |
Travel per div. of infeed handwheel |
mm |
0.023(Coarse) 0.0025( Fine) |
Min. intermittent feed |
mm |
0.02(Coarse) 0.0025( Fine) |
Wheel dia. |
mm |
Max. 900 |
Wheel dia. |
mm |
Min. 660 |
Wheelhead housing adjustment on middle seat |
mm |
Forward: 370 |
Backward |
|
Rear part aligns with middle seat |
Wheelhead automatic intermittent infeed |
|
Yes |
Main system pressure regulated |
MPa |
1.0~1.4 |
Aux. system pressure regulated |
Mpa |
0.7~1.0 |
Lub. system pressure regulated |
Mpa |
0.4~0.6 |
Wheelhead bearing pressure |
MPa |
1.6~2 |
Total power |
kW |
32.22 |
Air cooling motor |
kW |
0.18 |
Cycle motor |
kW |
2.2 |
Oil pump motor |
kW |
0.12 |
Magnetic separator motor |
kW |
0.37 |
Coolant pump motor |
kW |
0.12 |
Center grinding motor |
kW |
0.55 |
Headstock DC motor |
kW |
15 |
