MKA1332x1500 Economic Cnc Cylindrical Grinding Machine

US$ 61,050 - 62,250 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Cylindrical Grinding Machine

CNC or Not:

CNC

Long Life Machinery Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian/Tianjing/Shanghai/Qingdao China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Cylindrical Grinding Machine

CNC or Not CNC

Max. Grinding Diameter 320mm

Max. Grinding Length 1500mm

Place of Origin Liaoning, China

Brand Name LFM

Model Number MKA1332x1500 cnc cylindrical grinding machine

Voltage 3Phx220V 380V 400V 415V 440V 480V, 50/60Hz

Power(W) 14.55kW

Dimension(L*W*H) 3680x1810x1665mm

Weight 5000kgs

Certification CE; ISO9001:2008; GB/T 19001:2008

After-sales Service Provided Engineers available to service machinery overseas

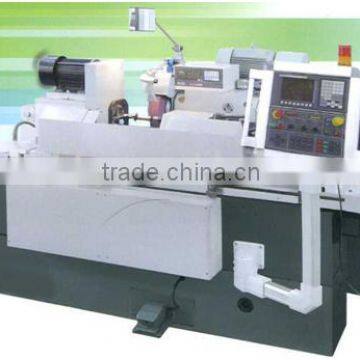

MKA1332x1500 economic cnc cylindrical grinding machine

Main Features

Such cnc cylindrical grinding machine has following features:

Economic automatic type, but with mature structure and steady performance

High precision, high rigidity and high stability

CNC controller is easy to operate;

Suitable for many fields such as motor, hydraulic, automobiles, for external grinding of shaft parts in large quantity.

ACCURACY

Item	Unit	parameter
Max. moving speed	mm/min	4000
Max. long travel X-axis	mm	280
Max. long travel Z-axis	mm	1200
Unidirectional repeatability of positioning X-axis	mm	0.006
Unidirectional repeatability of positioning Z-axis	mm	0.013
roundness	mm	0.0015
Consistency of diameter of longitudinal section	mm	0.008
Consistency of diameter of 20 workpieces (without gage)	mm	0.02
Consistency of diameter of 20 workpieces (with gage)	mm	0.01
Surface roughness(feed-in grinding)	μm	Ra 0.63
Surface roughness(longitudinal grinding)	μm	Ra 0.32

Main Technical Data

Specifications	Unit	Parameter
Outside diameter grinding No Center Frame	mm	Min/Max: Ø8~Ø320
Max. Workpiece Weight	kg	150
Max. Grinding Length	mm	1000
Distance between centers	mm	1000
Height of center	mm	180
Wheelhead spindle diameter	mm	55x60x210
workhead		Fixed spindle Rotation spindle(optional)
Chuck(should use the rotation spindle) 3-jaw chuck		200
Chuck(should use the rotation spindle) 4-jaw chuck		160
Workhead center		MT-5
Tailstock center		MT-4
Manual tailstock sleeve travel	mm	30
Workhead rotating speed (stepless speed control based on Converter)	rpm	30~300
Wheel peripheral velocity	m/s	35(hydrodynamic bearing)
Wheel peripheral velocity	m/s	optional 35/45(Hydro-hybrid bearing)
Max. swing angle of upper table(clockwise)	°	3
Max. swing angle of upper table(counter-clockwise)	°	5
Gross weight	kg	4500
