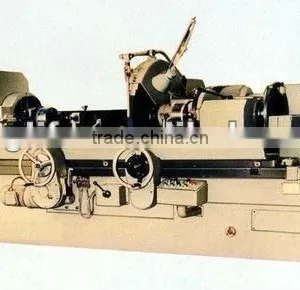

LMQ8260B Series Crankshaft Grinding Machine

LMQ8260B Series Crankshaft Grinding Machine photo-1
US$ 67,517 - 68,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Crankshaft Grinding Machine
CNC or Not:
Normal
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Other, Crankshaft Grinding Machine
CNC or Not Normal
Max. Grinding Diameter 600mm
Max. Grinding Length 1600mm
Place of Origin Liaoning, China
Brand Name LFM
Model Number LMQ8260x1600
Voltage 3Phx220V 380V 400V 415V 440V 480V, 50/60Hz
Power(W) 9.45kW
Dimension(L*W*H) 4000x2100x2130
Weight 6700kgs
Certification CE Certificate; ISO9001:2008; GB/T19001:2008
After-sales Service Provided Engineers available to service machinery overseas

LMQ8260Bx1600 crankshaft  grinding machine



Main Usage

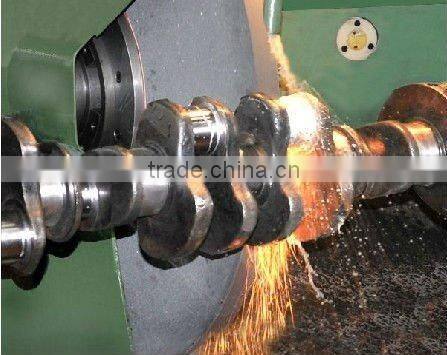

a. Such machine is suitable for grinding the crankshaft of marine diesel engines and vehicle diesels.

b. It is applied to  batch-production, single-piece production or repair factories.

c. It can also be used for cylindrical grinding.

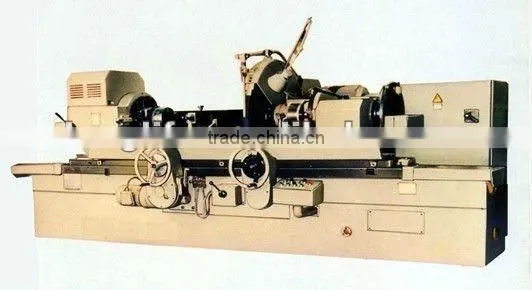

LMQ8260B Series crankshaft grinding machine

Accuracy Test

No

Item



Price

  1.

Roundness

mm

0.015

  1.

Cylindricity

mm

0.015

  1.

Roughness: cylindrical / end- face

mm

Ra 0.4 / Ra0.8

Main Technical Data

Specifications

Unit

Parameter

Max. swing dia. over table

mm

580

Max. crankpin throw

mm

110

Grinding diameter supported by steady-rest

mm

30~100

Grinding cylindrical diameter

mm

30~200

Max. grinding length (clamped by 3-jaw chuck)

mm

1300

Max. grinding length (clamped by centers)

mm

1600

Max. workpiece weight

Kg

120

Center height

mm

300

Workhead spindle speed (three steps)

r/min

25,50,100

Wheelhead spindle speed

r/min

760

Max. wheelhead travel along leadscrew

mm

200

Wheelhead displacement per rev. of feed handwheel

mm

1

Wheelhead displacement per div. of feed handwheel

mm

0.005

Rapid wheelhead advance/withdrawal

mm

100

Max. longitudinal worktable travel

mm

1600

Oil-pump flow-rate

Ml/r

11

Oil-pump pressure

Map

6.3

Coolant pump flow-rate

L/min

50

Total motor power

KW

9.45

Machine weight

Kg

6700

Overall dimensions(LxWxH)

mm

4000x2100x2130

Free Std Accessories

 1. Coolant tank;

2. Wheel dresser;

3. Vertical aligning plate;

4. End-face dresser;

5. Left & right chuck;

6. Levelling wedge;

7. Stendy-rest;

8. Horizontal aligning plate;

LMQ8260B Series crankshaft grinding machine
