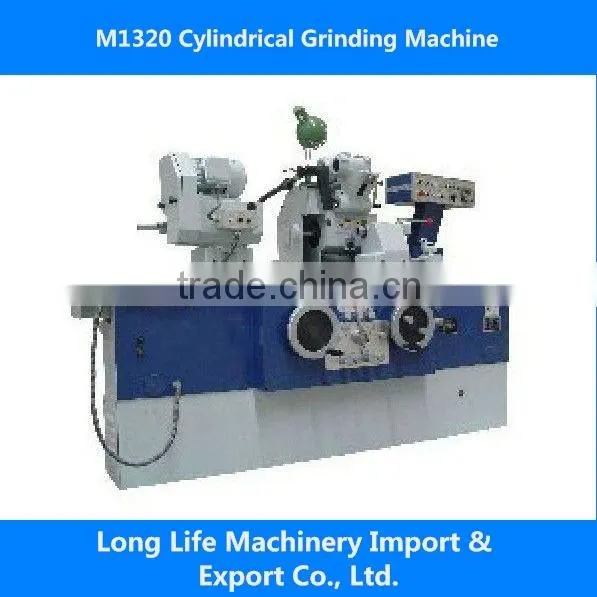

M1320x500/750 manual cylindrical grinding machine
Such cylindrical grinding machine has following features:
This machine is plain cylindrical grinder, which is mainly used for grinding cylindrical and conical surface of parts, ideal for tool, repair and small & medium-batch workshop.
Worktable longitudinal traverse is actuated at infinitely variable speed by hydraulic means or by hand operation. Wheelhead cross feed is provided with hyd. rapid approach & withdrwal, manual feed. Workpiece, grinding wheel, oil-pump, coolant pump are driven separately by their individual motors.
CE Standard and CE Certificate;
Roundness: 0.0015mm
Dia. Uniformity in the long. Section: 0.005mm
Surface roughness: Ra0.32mm
Specifications |
Unit |
Parameter |
|
Grinding capacity |
mm |
Φ200×500 |
Φ200×750 |
Grinding diameter with steady-rest min/max |
mm |
8/60 |
8/60 |
Without steady-rest min/max |
mm |
8/200 |
8/200 |
Max. work weight |
kg |
50 |
50 |
Max. grinding length |
mm |
500 |
750 |
Center height |
mm |
135 |
135 |
Distance between centers |
mm |
500,750 |
500,750 |
Max. grinding length when dressing wheel on tailstock |
mm |
400,650 |
400,650 |
Wheel spindle speed 50Hz |
m/s |
35,50,70,100,140,280 |
35,50,70,100,140,280 |
60Hz |
m/s |
42,60,84,120,168,336 |
42,60,84,120,168,336 |
Wheel dimensions (O.D.×W×I.D) Max |
mm |
Φ400×50×Φ203 |
Φ400×50×Φ203 |
Min |
mm |
Φ300×50×Φ203 |
Φ300×50×Φ203 |
Wheel peripheral velocity |
m/s |
35 |
35 |
Wheelhead spindle speed |
r/min |
1670 |
1670 |
Wheelhead displacement Max |
mm |
250 |
250 |
Wheelhead rapid advance & withdrawal |
mm |
50 |
50 |
Max. worktable longitudinal travel |
mm |
550,800 |
550,800 |
Total motor power |
KW |
5.43 |
5.43 |
Overall dimensions (L×W×H) length |
mm |
2200×1800×1650 |
2500×1800×1650 |
Machine weight |
Kg |
2840,3240 |
3040,3540 |
