MA1420x750 Universal Cylindrical Grinding Machine for Sale

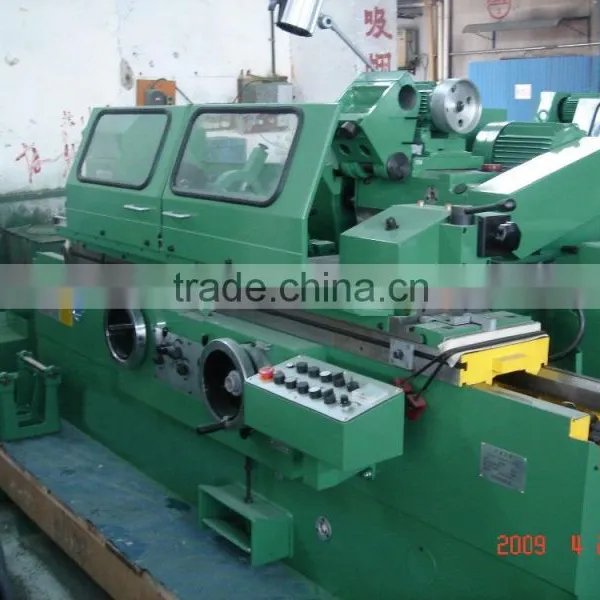

MA1420x750 Universal Cylindrical Grinding Machine for Sale photo-1
US$ 17,000 - 17,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Cylindrical Grinding Machine
CNC or Not:
Normal
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian Shanghai China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Cylindrical Grinding Machine
CNC or Not Normal
Max. Grinding Diameter 200mm
Max. Grinding Length 750mm
Place of Origin Liaoning, China
Brand Name LFM
Model Number M1420x750 universal cylindrical grinding machine
Voltage 3Phx220V 380V 400V 415V 440V 480V, 50/60Hz
Power(W) 5.5kW
Dimension(L*W*H) 3000x1800x1650mm
Weight 3700kgs
Certification CE Certificate; ISO9001:2008; GB/T19001:2008
After-sales Service Provided Engineers available to service machinery overseas

MA1420x750 universal cylindrical grinding machine

Main Usage

1. mainly used for grinding internal, external cylindrical and conical surface of parts.

2. It is ideal for single piece and small & medium-batch workshop.


Main Features

Such universal cylindrical grinding machine has following features:

1. Workpieces, internal and external grinding wheel, oil-pump, coolant pump are driven separately by their individual motors.

2. Worktable longitudinal traverse is actuated at infinitely variable speed by hydraulic means or by hand operation.

3. Wheelhead cross feed is provided with hyd.

4. Rapid approach & withdrawal, auto. Intermittent feed, manual feed.

5. CE Standard and CE Certificate;

MA1420x750 universal cylindrical grinding machine for sale
Main Technical Data

Specifications

Unit

Parameter

Outside diameter grinding

With steady-rest

mm

Min/Max: 8/60

Outside diameter grinding

Without steady-rest

mm

Min/Max: 8/200

Inside diameter grinding

With steady-rest

mm

Min/Max: 35/100

Inside diameter grinding

Without steady-rest

mm

Min/Max:25/100

Max. Workpiece Weight

kg

50

Max. Grinding Length(O.D.)

mm

500

Max. Grinding Length(I.D.)

mm

125

Height of center

mm

135

Wheel Spindle Speed

rmp

1670

Wheel Size ( diameter x width x bore )



Min/Max

Φ280 × 50 ×Φ203

Φ400×50×Φ203

Wheel peripheral velocity

m/s

35

Wheel size for int. grinding attachment

mm

Min/max

Ø17×20ר6

Ø50×25ר13

Max. worktable longitudinal travel

mm

550mm

Motor total power

kW

6.52

Overall dimensions(L×W×H)

mm

2500×1800×1650

Machine weight

kg

3200
