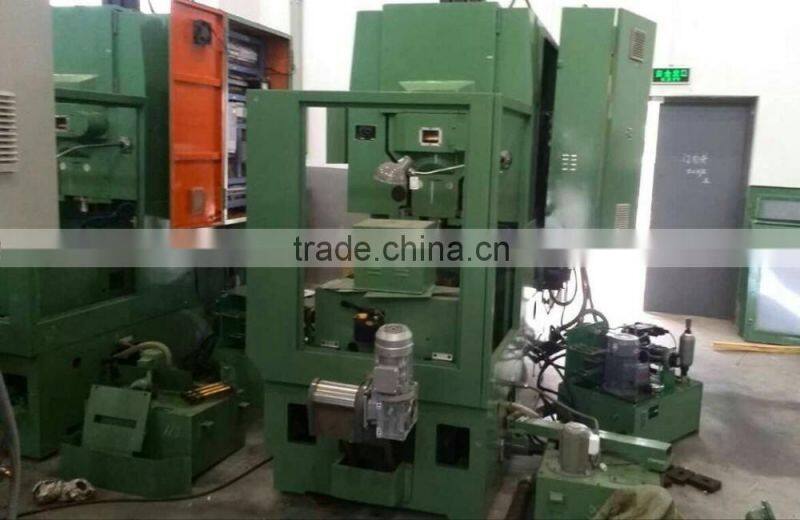

YP5150 gear shaping machine
Such gear shaping machine has following features:
The machine is featured in featured in smooth running, low noise, versatile functions, nice adaptability, easy set-up and simple operation, thus being well-suited for mass batch production of rears adopted on automobiles and tractors. The machine can also be used for small batch and job-lot gear production.
The long stroke length of the cutter spindle enables the machine to cut deep internal gear teeth. The one-can cutter relieving deign and the unique adjusting mechanism enables the machine to perform both inward and outward cutter back-off, so it is not necessary to change the cam or disconnect the transmission chain for making any adjustment when cutting an internal gear.
Main spindle speed and circular federate can be automatically switched between rough cut and finish cut. Circular federate is infinitely variable radial federate is also infinitely variable, and the number and depth of radial cut-in can be freely set according to user’s need. Once the radial feed is finished, the worktable will be automatically clamped and this assures the stability of the workpiece position and create a nice working accuracy.
Specifications | Unit | Parameter |
Max. workpiece dia. | mm | external gear:500 Internal gear (mounting dia.): 600 |
Max. module | mm | 8 |
Max. tooth width | mm | 125 |
Max. length of gear rack to be cut | mm | 630 |
Max. helix angle of helical gear | ° | 40 |
Stroke rate of cutter spindle per minute | times/min | N low N high 100 150 200 300 330 400 500 600 |
Circular feed per min(when cutter dia. is 100mm) | mm/min | 15~600 |
Radial feed per min(infinitely variable) | mm | 2~20 |
Max. rapid travel of worktable | mm | 180 |
Cutter spindle back-off at its up-most position | mm | 0.35 |
Column offset for oblique cutter relieving | mm | ±30 |
Max. stroke length of cutter spindle | mm | 140 |
Diameter of worktable surface | mm | 550 |
Diameter of worktable bore | mm | 160 |
Distance from cutter center to worktable center Surface | mm | 0~340 |
Distance from spindle nose to worktable surface | mm | 120~300 |
Distance from tailstock center to worktable surface | mm | 190~650 |
Main drive motor power | kW | 3/4 |
Main drive motor power speed | rpm | 960~1430 |
Servo motor for circular feed (power) | kW | 2.9 |
Servo motor for circular feed (speed) | rpm | 44~1750 |
Hydraulic pump motor (power) | kW | 1.5 |
Hydraulic pump motor (speed) | rpm | 1400 |
Chip conveyor motor (power) | kW | 0.37 |
Chip conveyor motor (speed) | rpm | 900 |
Cooling pump motor (power) | kW | 0.12 |
Cooling pump motor (speed) | rpm | 2800 |
Net weight of machine | kg | 6000 |
Overall dimensions of machine | mm | 2070x1260x2210 |
