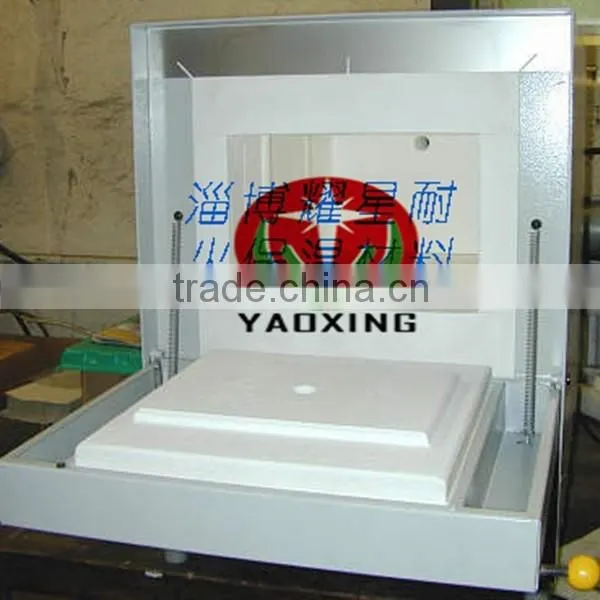

Help CenterCeramic Fiber Board Metallurgy Ceramic Plate Ceramic Fiber Board for Pyroreaction Equipment
Related Products
-
Vacuum Insulation Panel Ceramic Fiber Board Fire BoardsNegotiableMOQ: 100 Pieces -
Fireproof Ceramic Wool Board for Furnace 1400C 320K Fiber Boards Ceramic Fire BoardNegotiableMOQ: 100 Pieces
-
Fire Board Ceramic Fiber Board Thermal Ceramic BoardNegotiableMOQ: 100 Pieces
-
Inorganic Heat Insulation Ceramic Fibre Board 300KNegotiableMOQ: 200 Pieces
-
Fiber Boards Vacuum Insulation Panels Fireplace Ceramic BoardNegotiableMOQ: 100 Pieces
Technical Index
Type |
Common |
Standard |
HP |
HAl |
HZ |
|
Code |
YXTX-134 |
YXTX-234 |
YXTX-334 |
YXTX-434 |
YXTX-534 |
|
|
Classification Temperature |
1050 |
1260 |
1260 |
1400 |
1400 |
|
|
Shrinkage on Heating (%) |
950°C×24h ≤-3 |
1000°C×24h ≤-3 |
1100°C×24h ≤-3 |
1200°C×24h ≤-3 |
1350°C×24h ≤-3 |
|
|
Theoretical Thermal Conductivity (W/m·k) (128kg/m3) |
(200°Caverage) (400°Caverage) (600°Caverage) |
0.045-0.060 0.085-0.110 0.152-0.20 |
0.052-0.070 0.095-0.120 0.164-0.210 |
|||
|
Theoretical Density (kg/m3) |
96/128 |
128 |
96/128 |
|||
Specification (mm) |
1200/1000/900/600×1000/600/400×10/20//30/40/50 According to your requirements |
|||||
|
Tensile Strength (25mm thick) MPa |
0.5 |
|||||
AL2O3(%) |
≥44 |
≥45 |
≥45 |
52~55 |
38~40 |
|
ZrO2((%) |
- |
15~17 |
||||
AL2O3+SiO2(%) |
≥96 |
≥97 |
≥99 |
≥99 |
— |
|
AL2O3+SiO2+ZrO2(%) |
— |
— |
— |
— |
≥99 |
|
Fe2O3(%) |
≤1.2 |
≤1.0 |
≤0.2 |
≤0.2 |
≤0.2 |
|
K2O+Na2O(%) |
≤0.5 |
≤0.5 |
≤0.2 |
≤0.2 |
≤0.2 |
|

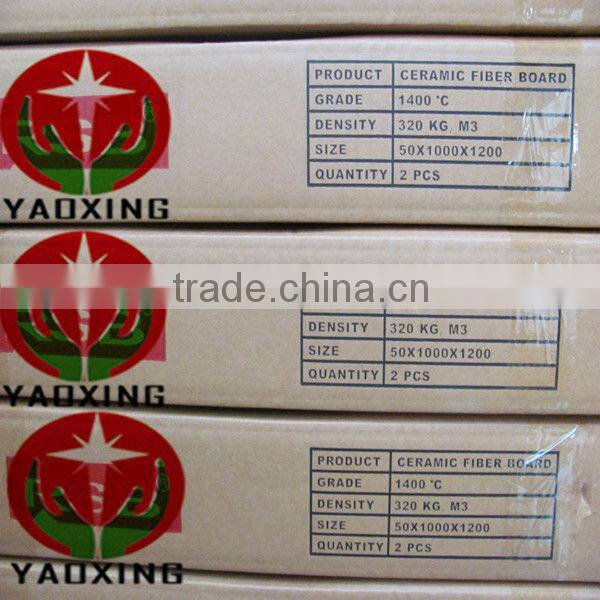

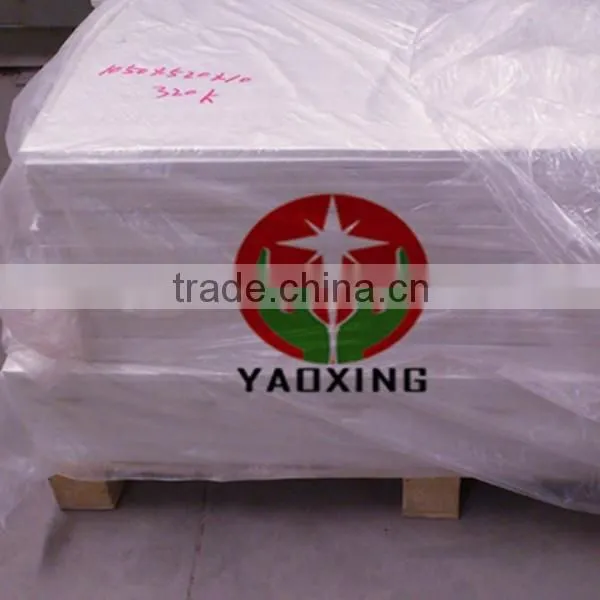

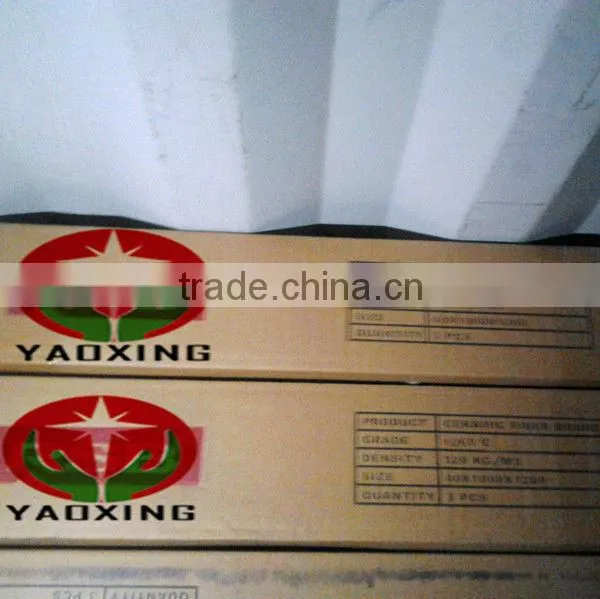

Package |
Plastic Bag Inside, Carton Box Outside |
|||||
Quality Control System |
ISO9001-2000, ISO14001-1996 |
|||||
Application
1.Heat preservation and insulation materials as the back lines for the kilns
in the field of cement building
2.Heat preservation materials as the back lines for the kilns in the field of ceramic

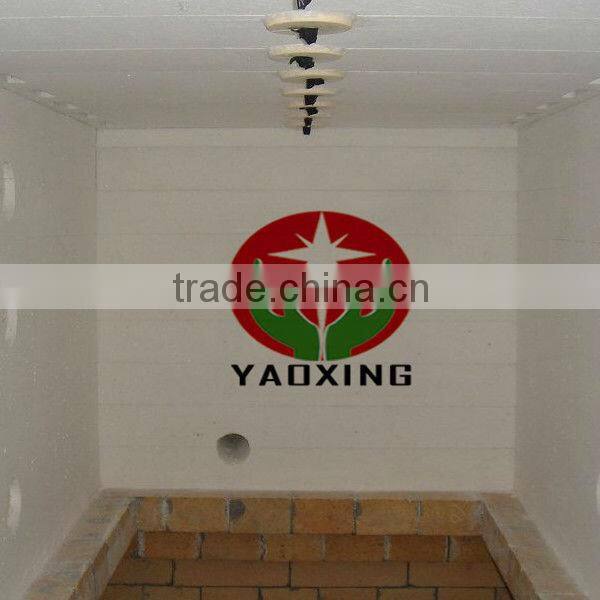

3.Heat preservation materials as the wall lines and back lines for the kilns
in the field of metallurgy and petrochemical industry
4.Heat preservation materials as the wall lines and back lines for the Glass furnace.
5.Refractory and insulating materials for heat treatment equipment
6.The back lines of refractory brick for electrolytic reducing bath in aluminum factory
7.Materials of the wall lines and back lines of heat and pyroreaction equipment
Characteristic:
1.Low Heat Storage,low thermal conductivity
2.Excellent compressive strength
3.Not fragile materials, excellent flexibility
4.Exact measurement,excellent flatness
5.Homogeneous structure, excellent machine-processed capability
6.Easily fixing specialty
7.Processed continuously,the fibers interweave shapely and excellent stability
8.Excellent chemical stability and thermal shock resistance
