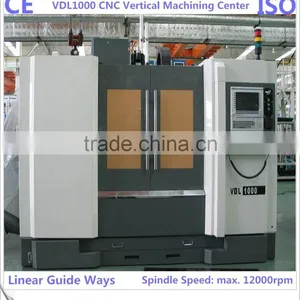

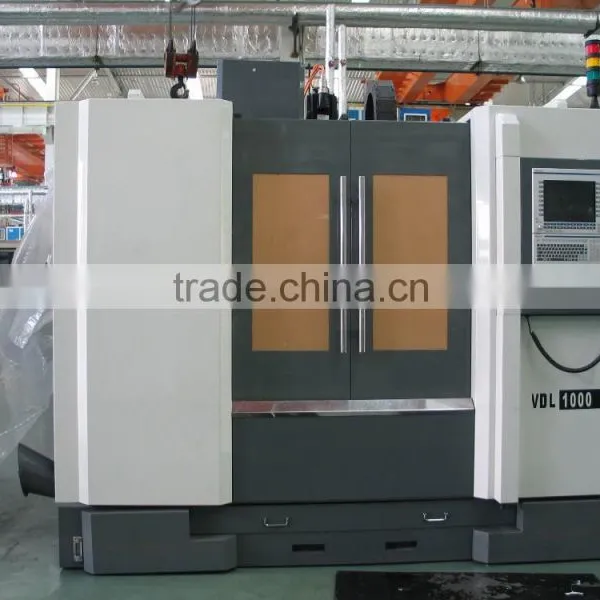

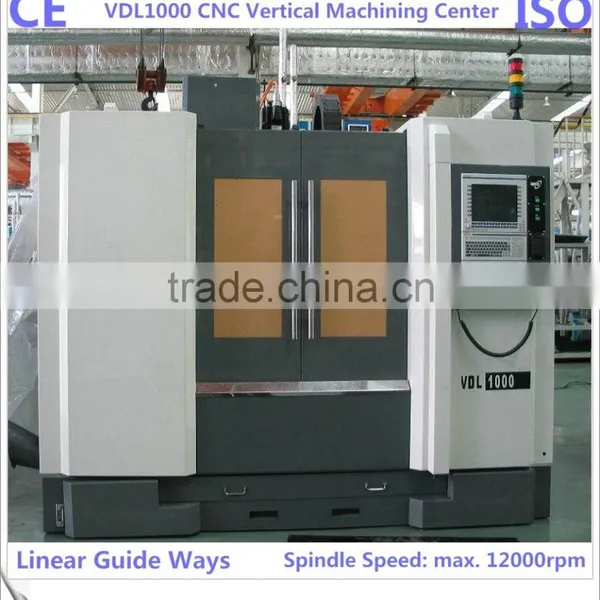

Help CenterVDL1000 CE Linear Way Cnc Vertical Machining Center for Sale
Related Products
-
VDF1000 Box Way Cnc Vertical Machining Center for SaleUS$ 51,519 - 57,346MOQ: 1 Set -
VDF Series Box Way CNC Vertical Machining Center With CEUS$ 45,132 - 108,060MOQ: 1 Set
-
Linear Guide Way CNC Vertical Machining Center With CE Hot-sale VDL1000US$ 34,780 - 108,060MOQ: 1 Set
-
High-speed Drilling And Tapping Center With CE Hot-sale TD500AUS$ 37,400 - 51,470MOQ: 1 Set
-
High-speed Drilling Center With CE and Tapping Function Hot-sale TD500AUS$ 37,400 - 51,470MOQ: 1 Set
VDL1000 vertical machining center Technical Data
1. With CE Certificate;
2. National Inspection-free products
3. Highly rigid and stable machine structure;
4. High precision linear on all three-axis;
5. High precision spindle and High spindle speed: 8000~10000rpm;
6. Fast and reliable tool changing mechanism;
7. Cooling system;
8. Multi-functional CNC control system, such as: FANUC, SIEMENS, FAGOR, REXROTH, MITSUBISHI, etc;
Specifications |
Unit |
vdl1000 vertical machining center |
Table(L×W) |
mm |
1120×560 |
T-slot(Numbers×Width×Distance)(b/t slots) |
mm |
5×18×100 |
Table load Max. |
kg |
750 |
Distance from spindle center line to column guide way surface |
mm |
629 |
Distance from spindle nose end face to table upper surface |
mm |
135~735 |
X/Y/Z travel |
mm |
1020/560/600 |
X/Y/Z guide way type |
|
X/Y: Linear way |
X/Y/Z rapid traverse speed |
m/min |
24/24/18 |
Feed rate |
mm/min |
1~10000 |
X/Y/Z servo motor power |
kW |
3/3/3 |
X/Y/Z servo motor torque |
N.m |
22/22/22 |
Positioning accuracy |
mm |
X:0.025 Y/Z:0.020 |
Repeat positioning accuracy |
Nm |
X:0.010 Y/Z:0.008 |
Spindle motor power |
kW |
7.5/11 |
Spindle speed range |
r/min |
60~8000 |
Spindle taper |
|
#40(7/24) |
Tool magazine capacity/Type |
|
20/drum |
Tool adaptor type |
|
BT40 |
Max. Tool weight |
kg |
7 |
Max. Tool diameter/length |
mm |
100/305drum 77/305swing arm |
Time of tool change(T-T) |
sec |
6~8/3 |
Air pressure requirement |
MPa |
0.6 |
Power requirement |
kW |
25 |
Overall dimension(L×W×H) |
mm |
2530×2820×2500 |
Net weight |
kg |
7000 |
1, Your inquiry will be replied in 24 hours;
2, Our manufacture/company has been a Gold supplier continuously in this Alibaba website for 7 years. And there is more industry technology experience for 24years with our manufactures;
3, To offer free spare parts and service within one year of warranty;
4, Technical Support Provide operation video for training;
5, Professional after-sales service team;
Call us at any time: +86 -15641121240/15641121140
Fax us:+86-411-84410129
Payment Term:
- 30% down payment, 70% by T/T before shipment;
- 100% LC at sight(optional and shall be discussed before placing order);
Minimum Order Quantity:
- 1 Set;
- ≥2 sets, there will be much discounts.
Warranty:
- Normally, 12 months for parts as of delivery of the machines;
Shipment:
- For machine itself, by sea or train(inland countries).
- For documents, by international express. eg DHL, TNT or EMS.
