Product Series:

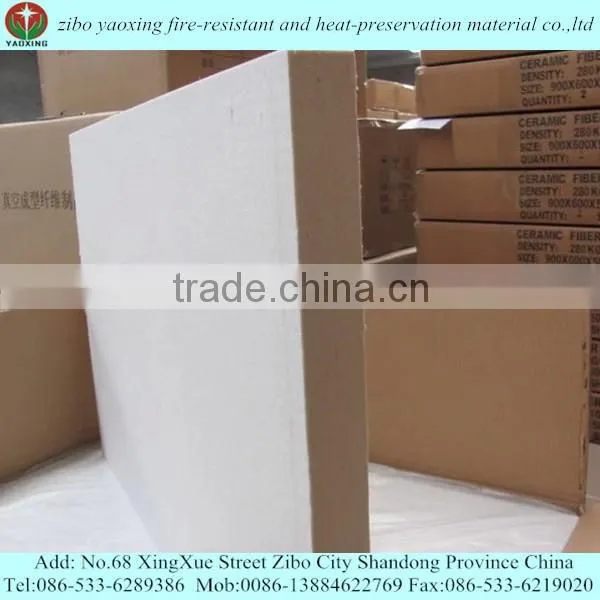

YAOXING 1050 Ceramic Fiber Board YXTX-134
YAOXING 1260 Ceramic Fiber Board YXTX-234
YAOXING High Pure Ceramic Fiber Board YXTX-334
YAOXING High Aluminum Ceramic Fiber Board YXTX-434
YAOXING High Zirconium Ceramic Fiber Board YXTX-534
Description:
1.YAOXING 1050/1260 Ceramic Fiber Board was processed by the advanced production line,
which was adopted the full automatic control and the continuous- processing method.
2.YAOXING 1050/1260 Ceramic Fiber Board have many typical characteristics,
such as exact measurement,excellent toughness,excellent heat preservation and can be cut discretionally
3.The processing work is much advanced,
which totally avoid the long production cycle and the low production capacity.
4.YAOXING 1050/1260 Ceramic Fiber Board is divided in different series by the temperature,
can be widely used as the back lining of industrial furnace and the hot surface of the low temperature furnace.
It is one of the guarantees of reaching the energy conservation and the high quality.
Characteristic:
1.Low Heat Storage
2.low thermal conductivity
3.Excellent compressive strength
4.Not fragile materials
5.Excellent flexibility
6.Exact measurement
7.Excellent flatness
8.Homogeneous structure
9.Excellent machine-processed capability
10.Easily fixing specialty
11.Processed continuously,the fibers interweave shapely
12.Excellent stability
13.Excellent chemical stability and thermal shock resistance
Technical Index
Name |
1050 Ceramic Fiber Board |
1260 Ceramic Fiber Board |
High Pure Ceramic Fiber Board |
Code |
YXTX-134 |
YXTX-234 |
YXTX-334 |
|
Shrinkage on Heating (%) |
950×24h≤-3 |
1000×24h≤-3 |
1100×24h≤-3 |
|
Theoretical Thermal Conductivity W/(m·k) |
0.060-0.085(200℃average) 0.092-0.112(400℃average) 0.112-0.126(600℃average)
|
||
|
Compressive Strength ≥(Mpa) |
0.5 |
||
|
Theoretical Density (kg/m3) |
220-320 |
220-400 |
220-450 |
|
Moisture Content (%) |
≤1 |
||
|
Organic Content (%) |
≤8 |
||
|
Specification (mm) |
1200/1000/900/600×1000/600/400×10/20/30/40/50 According to your requirements |
||
Package |
Plastic Bags inside, Carton outside |
||
|
|||
Name |
High Aluminum Ceramic Fiber Board |
High Zirconium Ceramic Fiber Board |
|
Code |
YXTX-434 |
YXTX-534 |
|
Shrinkage on Heating (%) |
1200×24h≤-3 |
1350×24h≤-3 |
|
|
Theoretical Thermal Conductivity W/(m·k) |
(200℃average) (400℃average) (600℃average)
|
0.103 0.125 0.151 |
|
|
Compressive Strength, ≥(Mpa) |
0.5 |
||
Theoretical Density (kg/m3) |
220-500 |
||
Moisture Content(%) |
≤1 |
||
Organic Content(%) |
≤8 |
||
Specification (mm) |
1200×1000×10,According to your requirements |
||
Package |
Plastic Bags inside, Carton outside |
||
|
|||

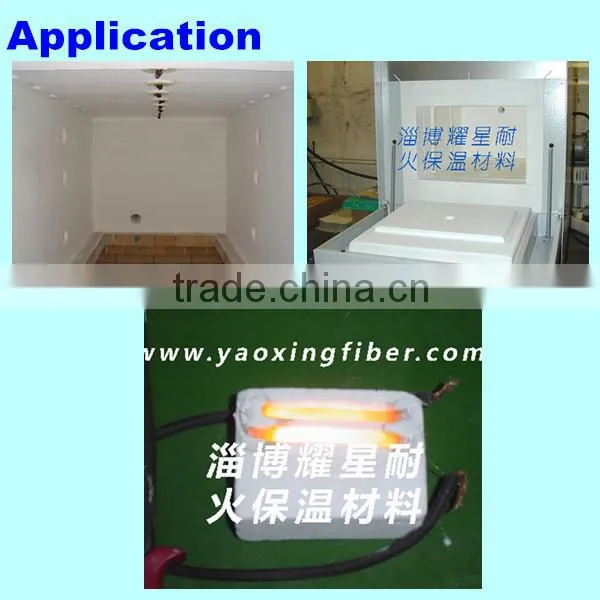

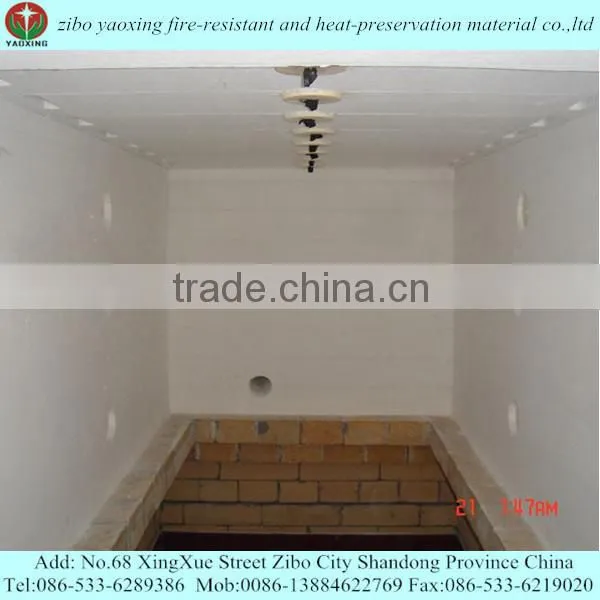

Application
1.Heat preservation and insulation materials as the back lines for the kilns in the field of cement building
2.Heat preservation materials as the back lines for the kilns in the field of ceramic
3.Heat preservation materials as the wall lines and back lines for the kilns
in the field of metallurgy and petrochemical industry
4.Heat preservation materials as the wall lines and back lines for the Glass furnace.
5.Refractory and insulating materials for heat treatment equipment
6.The back lines of refractory brick for electrolytic reducing bath in aluminum factory
7.Materials of the wall lines and back lines of heat and pyroreaction equipment

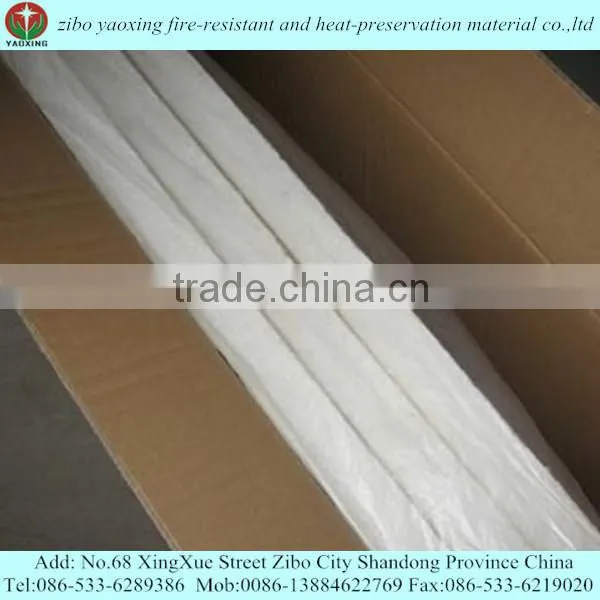

Loading&Packaging
|
Specification (MM) |
Density (KG/M3) |
NW/CNT (KG) |
CNT Size (MM) |
QTY/CNT (PCS) |
CONT Size (FOOT) |
PCS/CONT (CNTS) |
900*600*10 |
300-350 |
1.62-1.89 |
910*610*220 |
20 |
20 |
240 |
900*600*20 |
300-350 |
1.62-1.89 |
910*610*220 |
10 |
40GP |
489 |
900*600*50 |
300-350 |
1.62-1.89 |
910*610*220 |
4 |
40HQ |
592 |
We, Zibo Yaoxing Fire-Resistant &Heat-Preservation Material Co., Ltd.,
are one of Chinese top professional ceramic fiber products manufacturer,
dealing with all kinds of ceramic fiber bulk/blanket/paper/board/module.
Since the founding, we insist on the principle "Honest" and "Excellent",
build up a hi-Tech production line and own a strict quality control system and management system.
We have exported to lots of countries:
Malaysia, Korea, Japan, Hongkong, Pakistan, Spanish, Thailand, Nigeria,
Sri Lanka, Iran, Vietnam, Oman, Indonesia, Tajikistan, Germany and so on.
So our products are perfect, please trust our strength to be your top supplier of ceramic fiber products.
You can contact with us for further information, we also give a competitive price for honored company.
