CKE61125Mx2000 Heavy Duty Flat Bed Cnc Lathe With CE

Name: CKE61125Mx2000 Heavy Duty Flat Bed Cnc Lathe With CE
Brand: DALIAN
SKU: 102714013
Availability: InStock

CKE61125Mx2000 Heavy Duty Flat Bed Cnc Lathe With CE thumbnail-1

CKE61125Mx2000 Heavy Duty Flat Bed Cnc Lathe With CE thumbnail-2

CKE61125Mx2000 Heavy Duty Flat Bed Cnc Lathe With CE photo-1

CKE61125Mx2000 Heavy Duty Flat Bed Cnc Lathe With CE photo-2

US$ 91,508 - 114,021 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Horizontal

CNC or Not:

CNC

Contact Supplier Request Quote Chat Now

Long Life Machinery Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Horizontal

CNC or Not CNC

Automatic Grade Automatic

Max. Swing Diameter 1250mm

Place of Origin Liaoning, China

Brand Name DALIAN

Model Number CKE61125Mx2000mm heavy duty flat bed cnc lathe

Voltage 3Phx220V 380V 400V 415V 440V 480V, 50/60Hz

Power(W) 22/26kW

Dimension(L*W*H) depends

Weight 15000kgs

Certification ISO9001:2008; GB/T19001:2008;

After-sales Service Provided Engineers available to service machinery overseas

CKE61125Mx2000 Heavy Flat bed CNC Lathe

Machine Features:

1. CKE61100M is heavy-duty flat-bed CNC lathe: max load capacity can be 6000kgs;

2. It is a two-axis simultaneously controlled machine with semi-closed-loop CNC feedback system.

3. Servo main motors, 22/26kW;

4. Kinds of CNC Controllers for your choice: FANUC, SIEMENS, FARGO, GSK, etc.

5. With full splash-cover;

6. Vertical 4-station Electrical Tool Post; Horizontal 6/8 Electrcial Tool Post is available, too.

7. With CE Certificate;

8. Featuring heavy duty load, high rigidity & reliable design and structure, it is able to meet various machining, ie. ID & OD turning, threading, contouring, taper turning, end facing, etc. on rotary parts (shafts & discs) of ferrous or non-ferrous metals.

9. Wide applications are made in industries such as automotive, power generation, power transformer, steel, casting & foundry milll, general machining, chemical, petroleum, aerospace & aviation, hydro-mechanical, pump, paper machinery, food machinery, motor, electronics, textile machinery, etc.

Main Technical Data

Specifications	Unit	Parameter
Max. swing over bed	mm	1250
Width of bed	mm	755
Max. length of work piece	mm	2000
Max. swing over slide	mm	880
X travel	mm	640
Z travel	mm	1900
Spindle nose		A2-15
Taper of spindle bore	Morse	1:20
Spindle bore	mm	φ130
Steps of spindle speed		3-gears automatic
Frequency conversion motor power	kW	22
Rapid traverse X/Z	m/min	6/8
Positioning accuracy	mm	X: 0.030 Z:0.050
Repeat positioning accuracy	mm	X: 0.012 Z:0.020
Vertical 4-position Tool post changing time	s	4.0
Horizontal 6-position Tool post changing time	s	3.0
Diameter of tailstock quill	mm	200
Travel of tailstock quill	mm	300
Taper of tailstock quill	Morse	M6
Net weight	kg	15
Overall dimensions	mm
Overall dimensions	mm

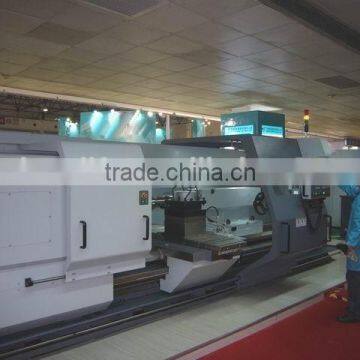

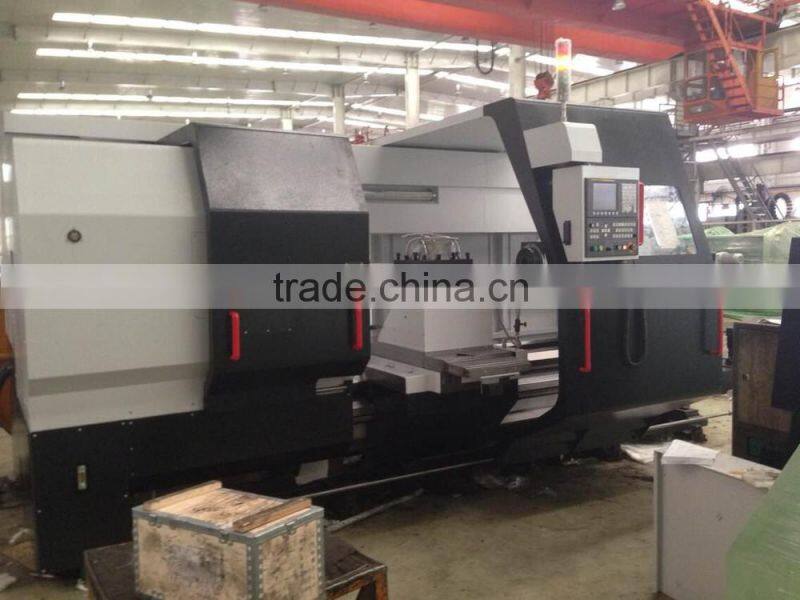

Real Photos:

Std Configuration

Servo main motor, X/Z axis servo motor , automatic 3 gears, infinitely variable speeds within the gear,
Spindle Speed: 5~500rpm, 4-position electric turret, Spindle bore: φ130mm,
Bed width: 750mm, φ1000mm manual 4-jaw chuck, manual tailstock;

Factory Overview:
