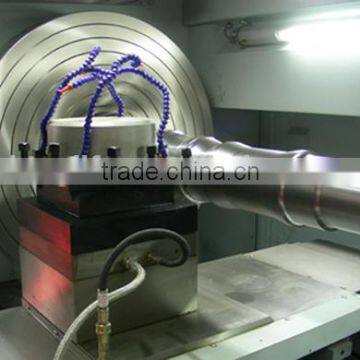

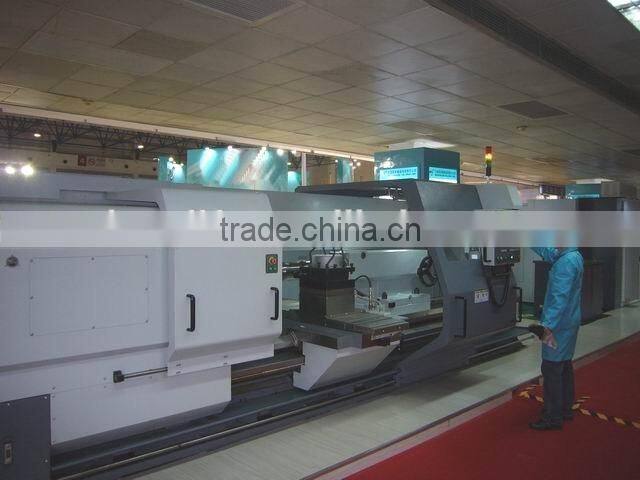

CKE61100Mx3000 heavy flat bed cnc lathe
1. CKE61100M is heavy-duty flat bed cnc lathe: max load capacity can be 6000kgs;
2. It is a two-axis simultaneously controlled machine with semi-closed-loop CNC feedback system.
3. Servo main motors, 22/26kW;
4. Kinds of CNC Controllers for your choice: FANUC, SIEMENS, FARGO, GSK, etc.
5. With full splash-cover;
6. Vertical 4-station Electrical Tool Post; Horizontal 6/8 Electrcial Tool Post is available, too.
7. With CE Certificate;
8. Featuring heavy duty load, high rigidity & reliable design and structure, it is able to meet various machining, ie. ID & OD turning, threading, contouring, taper turning, end facing, etc. on rotary parts (shafts & discs) of ferrous or non-ferrous metals.
9. Wide applications are made in industries such as automotive, power generation, power transformer, steel, casting & foundry milll, general machining, chemical, petroleum, aerospace & aviation, hydro-mechanical, pump, paper machinery, food machinery, motor, electronics, textile machinery, etc.
Specifications |
Unit |
Parameter |
Max. swing over bed |
mm |
φ1000 |
Width of bed |
mm |
755 |
Max. length of work piece |
mm |
3000 |
Max. swing over slide |
mm |
φ630 |
X travel |
mm |
520 |
Z travel |
mm |
2900 |
Spindle nose |
|
A2-15 |
Chuck size |
mm |
|
Taper of spindle bore |
Morse |
1:20 |
Spindle bore |
mm |
φ130 |
Steps of spindle speed |
|
4-step actuator |
Frequency conversion motor power |
kW |
22 |
Rapid traverse X/Z |
m/min |
6/8 |
Positioning accuracy |
mm |
X: 0.030 Z:0.060 |
Repeat positioning accuracy |
mm |
X: 0.012 Z:0.025 |
Vertical 4-position Tool post changing time |
s |
4.0 |
Horizontal 6-position Tool post changing time |
s |
3.0 |
Diameter of tailstock quill |
mm |
200 |
Travel of tailstock quill |
mm |
300 |
Taper of tailstock quill |
Morse |
M6 |
Net weight |
t |
15 |
Overall dimensions |
mm |
|
- Servo main motor, X/Z axis servo motor , automatic 3 gears, infinitely variable speeds within the gear,
- Spindle Speed: 5~500rpm, 4-position electric turret, Spindle bore: φ130mm,
- Bed width: 750mm, φ1000mm manual 4-jaw chuck, manual tailstock;
