GB42 Series Double-column Band Sawing Machine

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Liaoning, China

Condition:

New

After-sales Service Provided:

Engineers available to service machinery overseas

Long Life Machinery Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Liaoning, China

Condition New

After-sales Service Provided Engineers available to service machinery overseas

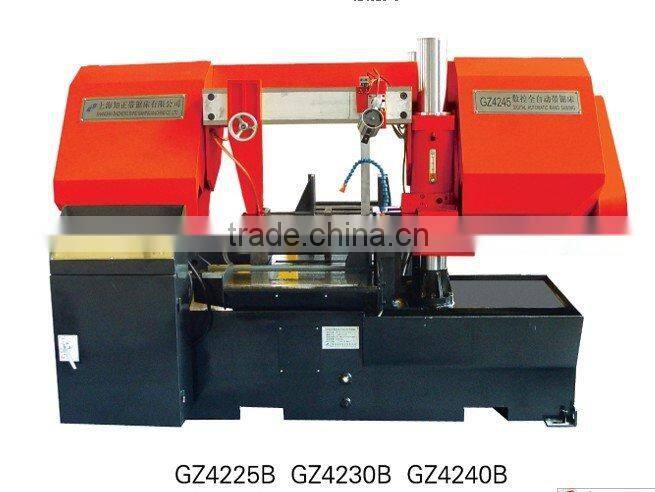

GB42 Series Double-column horizontal band sawing machine

Specifications	Unit	Parameter
Specifications	Unit	GB4225	GB4230/40	GB4240	GB4245	GB4250	GB4265	GB4280	GB42100
Maximum Range Round/square	mm	φ250/ 250×250	φ300/ 300×400	φ400/ 400×400	φ450 /450×450	φ500/ 500×500	φ650 /650×650	φ800 /800×800	φ1000/ 1000×1000
Transmission Saw blade speed	m/min	25/38/52/65/80	25/38/52/65/80	25/38/52/65/80	25/38/52/65/80	25/42/68	25/42/68	25/42/68	Variable-frequency speed
Blade Specifications (L × W × T)	mm	3820×27×1.1	3820×34×1.1	4570×34×1.1	5300×41×1.3	5700×41×1.3	6600×54×1.6	7740×54×1.6	10270×67×1.6
Productivity	cm²/min	≥50	≥50	≥50	≥55	≥55	≥60	≥65	≥70
Hydraulic working pressure	Mpa	2	2	2	2	2	2	2	2
Main Motor	kW	2.6	3.3	4.6	4.6	6	8.2	10.1	17.5
Package size( L× W × H)	mm	2100×1100×1260	2100×1100×1400	2300×1300×1600	2400×1700×1700	2700×1350×1950	3200×1450×2300	3800×1800×2450	5200×2000×2750
Machine weight	kg	1000	1150	1800	2400	4500	5600	7000	15000
