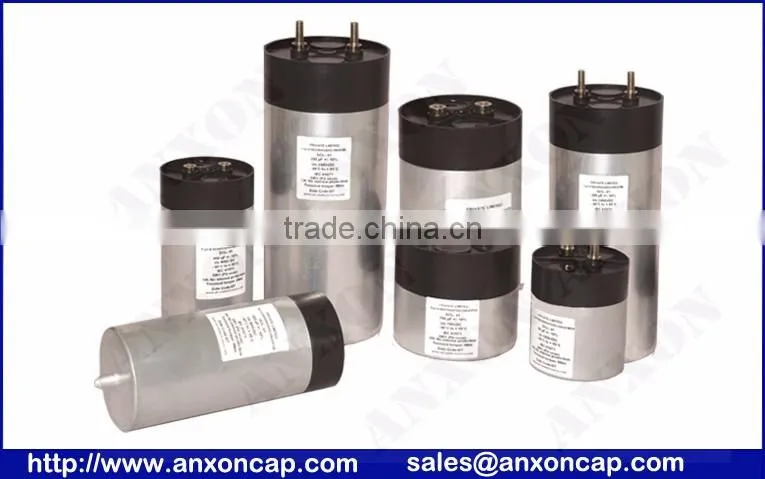

Product name: Direct cross to PK16 XC E50.N11-224NT0 1300V 215uF 215MFD 220uF 220MFD Induction Heating Capacitor
DC LINK Capacitor 1300V 215uF, DC power capacitor 1300VDC 215MFD, high power DC Capacitor 1300V 220mfd, Capacitor for DC LINK converter, 1300V 220uf inverter capacitor from AnXon Electronic
Rated Spec: |
1300V 220uF , 1300VDC 220mfd |
Tolerance: |
K, ±10% |
Type: |
Aluminum case, Screw Mounting |
Dielectric : |
Metallized polypropylene film |
Operating Temperature: |
-40C ~ 85C |

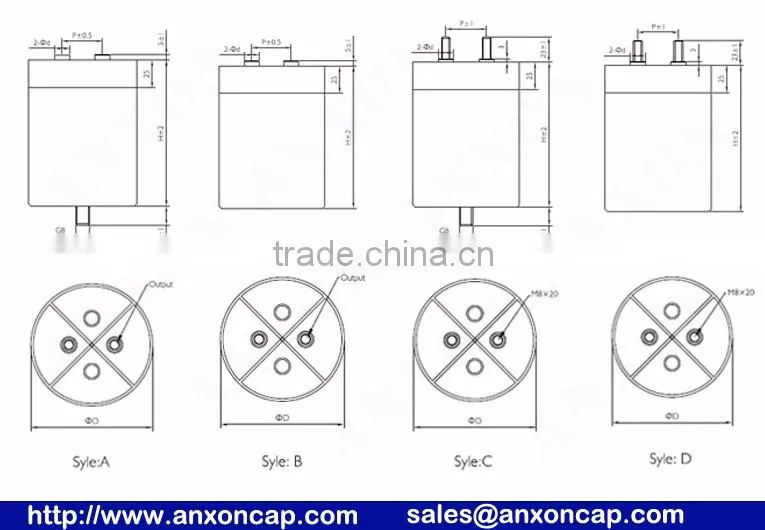

Size / Dimension(ΦD×L): |
D:85mm, H:110mm |
Choose the best capacitor for any of your power electronics applications, high quality equivalent Direct cross to Electronicon PK16 XI series capcitors provided by AnXon Electronic, 600V, 700V, 800V, 900V, 1100V, 1300V, 1500V, 1800V, 2000V, 2200V, 2400V, 2600V, 2800V, 3000V, 3200V, 3600V, 4000V DC Link capacitors
AnXon Part No. |
Rated Spec |
I |
ESL |
D x L |
Equivalent to Electronicon PK16 XC P/N |
kVdc / uF |
A |
nH |
mm |
||
Un 1300VDC Us 1950V Utt 1950VDC Utc 4320V AC/2s | |||||
AXCT27125K132SA |
1300V 125uF |
20 |
50 |
67x114 |
E50.L11-134N40 |
AXCT27170K132FA |
1300V 170uF |
30 |
40 |
75x126 |
E50.M12-174NT7 |
AXCT27190K132FA |
1300V 190uF |
30 |
40 |
75x136 |
E50.M13-194NT7 |
AXCT27210K132FA |
1300V 210uF |
30 |
45 |
75x146 |
E50.M14-214NT7 |
AXCT27215K132CA |
1300V 215uF |
30 |
60 |
85x110 |
E50.N11-224NT0 |
AXCT27270K132CA |
1300V 270uF |
40 |
55 |
85x136 |
E50.N13-274NT0 |
AXCT27300K132CA |
1300V 300uF |
40 |
40 |
85x146 |
E50.N14-304NZ0 |
AXCT27390K132CA |
1300V 390uF |
40 |
60 |
85x181 |
E50.N18-394NT0 |
AXCT27410K132GA |
1300V 410uF |
40 |
40 |
100x155 |
E50.Q15-414N57 |
AXCT27455K132GA |
1300V 455uF |
40 |
60 |
100x165 |
E50.Q16-464N57 |
AXCT27605K132DA |
1300V 605uF |
40 |
40 |
116x165 |
E50.R16-614NT0 |
AXCT27700K132DA |
1300V 700uF |
40 |
50 |
116x190 |
E50.R19-704NT0 |
AXCT27760K132DA |
1300V 760uF |
60 |
50 |
116x215 |
E50.R21-764NT0 |
AXCT27780K132CA |
1300V 780uF |
60 |
100 |
85x348 |
E50.N35-784NT0 |
AXCT271120K132DA |
1300V 1120uF |
60 |
70 |
116x295 |
E50.R29-115NT1 |
AXCT271400K132DA |
1300V 1400uF |
60 |
70 |
116x345 |
E50.R34-145NT1 |
AXCT271600K132EA |
1300V 1600uF |
60 |
70 |
136x295 |
E50.S29-165NT1 |
AXCT272010K132EA |
1300V 2010uF |
60 |
70 |
136x345 |
E50.S34-205NT1 |
Specifications
• Capacitance range 50μF to 7400μF
• Rated Voltage 600vdc to 4000vdc
• Capacitance Tolerance ±10%,±5%
• Dissipation factor ( Tan d) 0.0002
• Insulation Resistance MΩ x μF 5,000S @ 25°C (S = MΩ x μF)
• Dielectric strength between terminals (U ) 1.5 x rated voltage for 60 secs T-T
• Test Voltage Terminal to case (U ) Up to 4800 Vac 50 Hz T-c
• Operating Temperature: -40°C to +85°C
Features
• High RMS current
• Low ESR
• Life Expectancy 100,000 Hours
• Fully encapsulated dry construction
• Flame retardant UL94 - V0, ROHS compliant
• Reference Standard: IEC 61071 and IEC 60068
Applications
• DC Link and DC Filter applications in Power converters for
• Uninterruptible power supplies
• Wind power inverters
• Solar power inverters
• Traction and industrial drives.
• Impulse discharge capacitors for magnetizing and welding
Custom design products are available on request, please contact us for more spec details.
