Help CenterReplacements of PK16 XC E50.M14-214NT7 1300V 210uF 210MFD 200uF 200MFD High Voltage Inverter Capacitor
Related Products
-
Alternative for PK16 XC E50.M13-194NT7 1300V 190uF 190MFD 200uF 200MFD EV HEV DC Filter CapacitorUS$ 5 - 99MOQ: 10 Pieces -
Similar to PK16 XC E50.M12-174NT7 1300V 170uF 170MFD 150uF 150MFD DC Link High Power CapacitorUS$ 5 - 99MOQ: 10 Pieces
-
Replacement of PK16 XC E50.L11-134N40 1300V 125uF 125MFD 130uF 130MFD EV HEV Hybrid Inverter CapacitorUS$ 5 - 99MOQ: 10 Pieces
-
Equivalent to PK16 XC E50.S34-315NT0 1100V 3060uF 3060MFD 3000uF 3000MFD 3100uF 3100MFD UPS EPS CapacitorUS$ 5 - 99MOQ: 10 Pieces
-
Direct Cross to PK16 XC E50.S29-245NT0 1100V 2400uF 2400MFD 2450uF 2450MFD 2500uF 2500MFD DC Link Power CapacitorUS$ 5 - 99MOQ: 10 Pieces
1, Germany quality
2, Factory price
3, Fast delivery
4, Low cost shipping solutions
5, Samples available for evaluate
6, World class customers experience

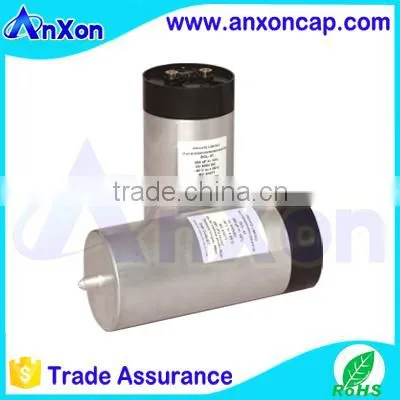

Product name: Replacements of PK16 XC E50.M14-214NT7 1300V 210uF 210MFD 200uF 200MFD High Voltage inverter capacitor
DC LINK Capacitor 1300V 210uF, DC power capacitor 1300VDC 210MFD, high power DC Capacitor 1300V 200mfd, Capacitor for DC LINK converter, 1300V 200uf inverter capacitor from AnXon Electronic
Rated Spec: |
1300V 210uF , 1300VDC 210mfd |
Tolerance: |
K, ±10% |
Type: |
Aluminum case, Screw Mounting |
Dielectric : |
Metallized polypropylene film |
Operating Temperature: |
-40C ~ 85C |
Size / Dimension(ΦD×L): |
D:75mm, H:146mm |
Choose the best capacitor for any of your power electronics applications, high quality equivalent Direct cross to Electronicon PK16 XI series capcitors provided by AnXon Electronic, 600V, 700V, 800V, 900V, 1100V, 1300V, 1500V, 1800V, 2000V, 2200V, 2400V, 2600V, 2800V, 3000V, 3200V, 3600V, 4000V DC Link capacitors
AnXon Part No. |
Rated Spec |
I |
ESL |
D x L |
Equivalent to Electronicon PK16 XC P/N |
kVdc / uF |
A |
nH |
mm |
||
Un 1300VDC Us 1950V Utt 1950VDC Utc 4320V AC/2s | |||||
AXCT27125K132SA |
1300V 125uF |
20 |
50 |
67x114 |
E50.L11-134N40 |
AXCT27170K132FA |
1300V 170uF |
30 |
40 |
75x126 |
E50.M12-174NT7 |
AXCT27190K132FA |
1300V 190uF |
30 |
40 |
75x136 |
E50.M13-194NT7 |
AXCT27210K132FA |
1300V 210uF |
30 |
45 |
75x146 |
E50.M14-214NT7 |
AXCT27215K132CA |
1300V 215uF |
30 |
60 |
85x110 |
E50.N11-224NT0 |
AXCT27270K132CA |
1300V 270uF |
40 |
55 |
85x136 |
E50.N13-274NT0 |
AXCT27300K132CA |
1300V 300uF |
40 |
40 |
85x146 |
E50.N14-304NZ0 |
AXCT27390K132CA |
1300V 390uF |
40 |
60 |
85x181 |
E50.N18-394NT0 |
AXCT27410K132GA |
1300V 410uF |
40 |
40 |
100x155 |
E50.Q15-414N57 |
AXCT27455K132GA |
1300V 455uF |
40 |
60 |
100x165 |
E50.Q16-464N57 |
AXCT27605K132DA |
1300V 605uF |
40 |
40 |
116x165 |
E50.R16-614NT0 |
AXCT27700K132DA |
1300V 700uF |
40 |
50 |
116x190 |
E50.R19-704NT0 |
AXCT27760K132DA |
1300V 760uF |
60 |
50 |
116x215 |
E50.R21-764NT0 |
AXCT27780K132CA |
1300V 780uF |
60 |
100 |
85x348 |
E50.N35-784NT0 |
AXCT271120K132DA |
1300V 1120uF |
60 |
70 |
116x295 |
E50.R29-115NT1 |
AXCT271400K132DA |
1300V 1400uF |
60 |
70 |
116x345 |
E50.R34-145NT1 |
AXCT271600K132EA |
1300V 1600uF |
60 |
70 |
136x295 |
E50.S29-165NT1 |
AXCT272010K132EA |
1300V 2010uF |
60 |
70 |
136x345 |
E50.S34-205NT1 |
Specifications
• Capacitance range 50μF to 7400μF
• Rated Voltage 600vdc to 4000vdc
• Capacitance Tolerance ±10%,±5%
• Dissipation factor ( Tan d) 0.0002
• Insulation Resistance MΩ x μF 5,000S @ 25°C (S = MΩ x μF)
• Dielectric strength between terminals (U ) 1.5 x rated voltage for 60 secs T-T
• Test Voltage Terminal to case (U ) Up to 4800 Vac 50 Hz T-c
• Operating Temperature: -40°C to +85°C
Features
• High RMS current
• Low ESR
• Life Expectancy 100,000 Hours
• Fully encapsulated dry construction
• Flame retardant UL94 - V0, ROHS compliant
• Reference Standard: IEC 61071 and IEC 60068
Applications
• DC Link and DC Filter applications in Power converters for
• Uninterruptible power supplies
• Wind power inverters
• Solar power inverters
• Traction and industrial drives.
• Impulse discharge capacitors for magnetizing and welding
Custom design products are available on request, please contact us for more spec details.
Our Innovation
1.Quality & Service At AnXon, our #1 priority has always been providing our clients with great quality products and superior customer service.
2.Quick Lead Time We're dedicated to providing the quickest turnaround times and work very Hard to ensure that all of your deadlines are met.
3.Unbeatable Prices We continuously strive to find ways of reducing our production costs, and passing the savings Over to you!
4.Brand Awareness The goal of any strong brand is achieve a level of awareness that instills the idea of quality and value into all of your potential customers.
High Quality,Good Price,Fast Delivery,Please send us your RFQ!
