30KV 1000PF 102 direct cross to TDK ceramic capacitor
- 2000 Piece / Pieces per Month
- Ningbo
- Credit Card
-
2016 Hot sale low price resistance
-
nRF51822 Bluetooth Smart Beacon Kit 256kB flash 16kB RAM BLE4.0 Bluetooth 2.4G Wireless Module nRF51822-QFAA
-
Nordic beacon WT51822 S4AT with CE FCC RoHS bluetooth le beacon serial module WT51822S4AT nRF51822
-
Remote Wireless Networking Equipment ESP8266 cheap embedded WIFI module small wireless transceiver module ESP8266 ESP-12e
-
Cap Ceramic 47uF 10V X5R 20% SMD 1210 85?? Embossed T/R
-
3.3uF 33uF SMD Tantalum Capacitor
Product Details
| Place of Origin: | Zhejiang, China | Brand Name: | AnXon direct cross to TDK ceramic capacitor | Model Number: | CT8G direct cross to TDK ceramic capacitor |
| Type: | Ceramic Capacitor | Application: | Hight Voltage | Package Type: | Through Hole |
| Capacitance: | 1000PF direct cross to TDK ceramic capacitor | Rated Voltage: | 30KV direct cross to TDK ceramic capacitor | Operating Temperature: | -30C ~ 85C |
Product Description
1, Factory price
2, Quality gurrantee
3, Fast delivery
4, Low cost shipping
5, Samples available for evaluate
6, World class customers experience
Product Name: 30KV 1000PF 102 direct cross to TDK ceramic capacitor

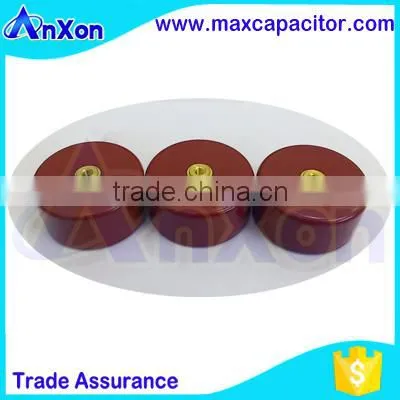

High Voltage Ceramic Capacitor 30KV 1000PF, Molded type Ultra-high Voltage Ceramic Capacitors 30KVAC, 30KVrms 102 high voltage doorknob capacitor, UHV doorknob ceramic capacitor offered by AnXon Electronic
Rated Spec: | 30KV 1000PF , 30KV 102 |
AnXon P/N | AXCHV30DL102KDB |
Tolerance: | K, ±10% |
Type: | Molded / Doorknob / Screw Mounting |
Ceramic Dielectric : | N4700 |
Operating Temperature: | -30C ~ 85C |
Size / Dimension(ΦD×T*H): | D:38mm, H:28mm |
High Voltage Ceramic Capacitor 3.6KV, 6.5KV, 7.2KV, 10KV, 12KV, 13KV, 15KV, 20KV, 24KV, 25KV, 30KV, 35KV, 36KV, 40KV, 50KV, 60KV, 70KV, 80KV, 100KV, 120KV, 150KV Information:
- Rated Voltage (V): 3.6KVrms -70KVrms, 10KVdc-150KVdc
- Withstand Voltage: 6KVrms-50KVrms, 20KVdc-200KVdc
- Impulse Voltage: 45KVdc-225KVdc
- Capacitance Range: 10pF - 100000pF
- Operating frequency: 20KHZ-1000KHZ
- Materials: N4700, Y5T, Y5P, Y5V, Y5U
High voltage ceramic capacitor supplier, molded doorknob capacitor manufacturer,
More specifications
Part No. | Rated Spec | Testing voltage | Partial discharge | Dissipation factor | Dimension(mm) | ||
kVdc | kV/1min |
| 1kHz/1V | D | H | M | |
AXCHV30DL401KDB | 30KV 400PF | DC45KV AC30KV | AC15KV<5PC | ≤0.1% | 24 | 26 | M4X5 |
AXCHV30DL501KDA | 30KV 500PF | 24 | 28 | M4X5 | |||
AXCHV30DL501KDB | 30KV 500PF | 30 | 34 | M4X5 | |||
AXCHV30DL601KDB | 30KV 600PF | 30 | 28 | M4X5 | |||
AXCHV30DL901KDA | 30KV 900PF | 30 | 28 | M4X5 | |||
AXCHV30DL901KDB | 30KV 900PF | 38 | 28 | M4X5 | |||
AXCHV30DL951KDB | 30KV 950PF | 38 | 28 | M4X5 | |||
AXCHV30DL102KDB | 30KV 1000PF | 38 | 28 | M4X5 | |||
AXCHV30DL112KDB | 30KV 1100PF | 38 | 28 | M4X5 | |||
AXCHV30DL172KDB | 30KV 1700PF | 52 | 28 | M5X5 | |||
AXCHV30DL202KDB | 30KV 2000PF | 52 | 28 | M5X5 | |||
AXCHV30DL252KDB | 30KV 2500PF | 52 | 28 | M5X5 | |||
AXCHV30DL272KDB | 30KV 2700PF | 52 | 28 | M5X5 | |||
AXCHV30DL402KDB | 30KV 4000PF | 58 | 28 | M5X5 | |||
AXCHV30DL502KDB | 30KV 5000PF | 70 | 36 | M8X8 | |||
AXCHV30DL702KDB | 30KV 7000PF | 80 | 36 | M8X8 | |||
AXCHV30DL103KDA | 30KV 10000PF | 106 | 38 | M8X10 | |||
AXCHV30DL103KDB | 30KV 10000PF | 98 | 120 | M8X10 | |||
AXCHV30DL203KDB | 30KV 20000PF | 98 | 170 | M8X10 | |||
HV Capacitor Application Guide
Advantage:
1.Low MOQ: It can meet your testing purpose very well.
2.Custom Design Accepted : We can produce as your design .
3.Good Service : We treat clients as friend.
4.Good Quality :We have strict quality control system .Good reputation in the market.
5.Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).
Our Innovation
1.Quality & Service At AnXon, our #1 priority has always been providing our clients with great quality products and superior customer service.
2.Quick Lead Time We're dedicated to providing the quickest turnaround times and work very Hard to ensure that all of your deadlines are met.
3.Unbeatable Prices We continuously strive to find ways of reducing our production costs, and passing the savings Over to you!
4.Brand Awareness The goal of any strong brand is achieve a level of awareness that instills the idea of quality and value into all of your potential customers.
High Quality,Good Price,Fast Delivery,Please send us your RFQ!
