Home > Products > Dry Mortar Production Line > Small automatic building and construction equipmen
Small automatic building and construction equipmen
- 60 Set / Sets per Month
- Qingdao/Tianjin/Shanghai
- T/T Credit Card
- Dry mortar making machine dry mortar mixing production line
- electric mortar mixer dry mortar mix mortar plant mixing machine
- Warranty high efficiency facility best quality Dry Mixed Mortar whole set Equipment Machines made in china
- 5.5KW Dry Mortar Mixer Mini Plant Small Manufacturing Machines For Sale
- 7.5kw 1600L Tile Adhesive/wall Putty/waterproofing/dry Mortar Mixer Tile Mortar Mixer
- 5.5KW 2021 Horizontal Mix Sand And Cement New Screw Dry Mortar Mixer
Product Details
Condition: | New | Application: | dry mortar | Production Capacity: | 100T/day |
Place of Origin: | Henan, China | Brand Name: | SENHE | Model Number: | MM21994 |
Voltage: | 220/380v | Certification: | CE,ISO9001 | Warranty: | one year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications

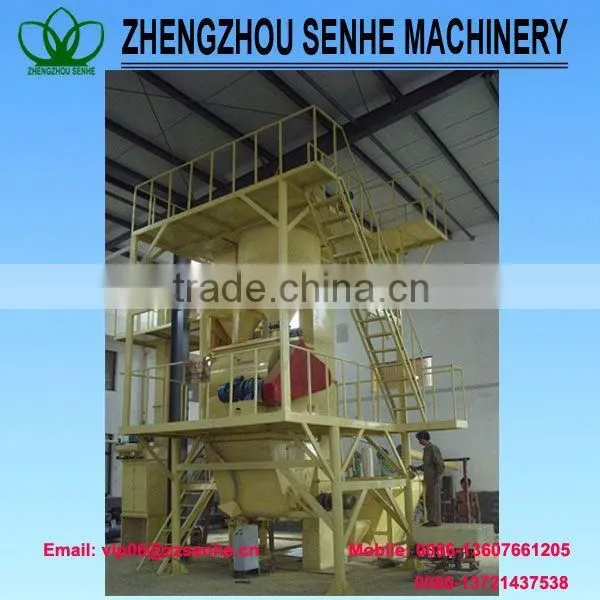

Dry mortar plantDry mixed mortar ribbon machine
Weightless twin shaft paddle mixing machine
Usage of MM21994 Small automatic building and construction equipmen:
building materials and feedstuff
-----------------------------------------------------------------------------------------------------------------------
-----------------------------------------------------------------------------------------------------------------------
Types of MM21994 Small automatic building and construction equipmen:
1.Dry mixed mortar ribbon machine
Advantage
1,Running smoothly
2,High speed. Only 5-10 minutes per batch
3,Mixed uniformity
4,Small residual amount.
5,Easy to operation ,2-3 people can make it.
6,Low cost. Small investment, high efficiency.
Features:
Good dispersion: the equipment totally solves the problems like low uniformity caused by the proportional weight of material and dead space. It adopts the structure stirred by three spirals, dispersing all kinds of short fiber.
Wide usage: it can meet the needs to produce dry mix mortar of different performance requirement
Small investment: it bears advantage like the low price, small investment and apparent effectiveness.
Easy and convenient usage: the machine occupies small area, easy operation, and low energy consumption producing 5-8t per hour.
Long life: the easy injured part of the equipment adopts components of high strength wear-resistant steel which guarantee its useful life.
Technical Parameter
Model | WZ300 | WZ500 | WZ1000 |
Power | 2.2kw | 5.5kw | 7.5kw |
Elevator power | 1.5kw | 2.2kw | 2.2kw |
Capacity | 300kg/batch | 500kg/batch | 1000kg/batch |
Mixing time | 5-10min | 5-10min | 5-10min |
-----------------------------------------------------------------------------------------------------------------------
-----------------------------------------------------------------------------------------------------------------------
2.Weightless twin shaft paddle mixing machine
Advantage
1,Low power consumption
2,Less wear and tear
3,Quick discharging of mixture
4,Easy to clean
Features:
Twin shaft paddle mixing machine has a strong and efficient features and short mixing time, the design of the mixing time of 3 minutes, to 1:1000 put the proportion of uniformity greater than 95%; horizontal cylinder body two stirring shaft constant velocity anti-to the rotation axis of special angle of the blade to ensure that the material radial, circumferential and axial to shed movement, to form a composite cycle, to achieve uniform mixing within a very short time.
Discharge form
The form of the material of the flap valve pneumatic (manual), arc valves are closely embedded in the barrel, flush with the inner wall of material accumulation, and mixed dead space phenomenon; standard open the door a small door, large door openings to the tube side of the discharge clean and fast, less residue.
Two blade
To reduce the cost of equipment, the replacement of wearing parts, the paddle blades can be made into two type, a removable small leaves in the leaf base pad may direct replacement of worn blades, economic and efficient.
Blade and cylinder gap
Paddle blade and the cylinder wall clearance directly affect the mixing effect, as well as the material body material residues; my company product leaves the cylinder gap control in the 3 ~ 5mm.
