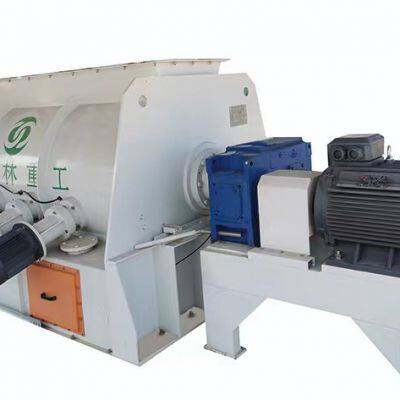

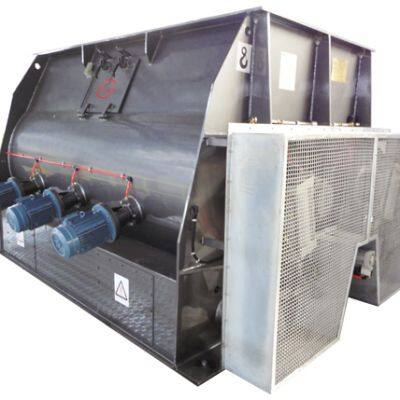

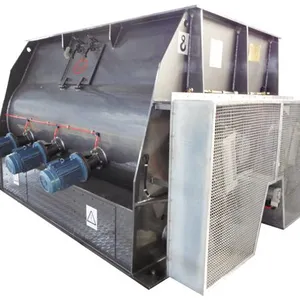

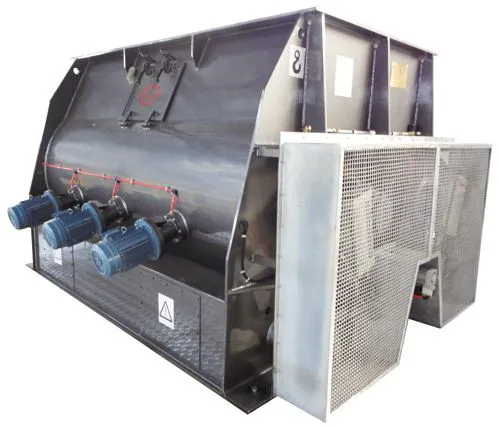

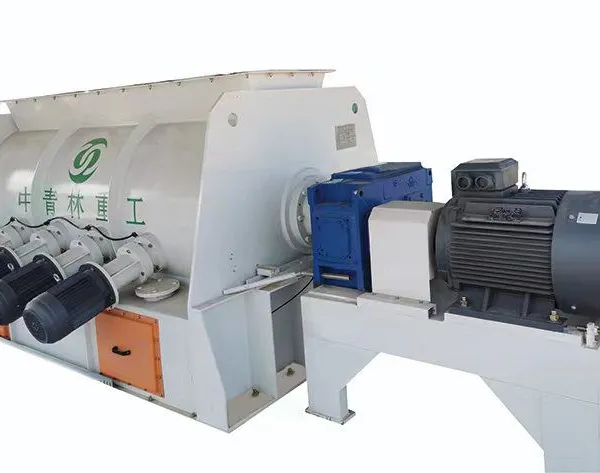

Single-shaft Horizontal Mixer
The single-shaft mixer means several plough blades are installed on the only one main shaft. This design can make all area inside be including.
Raw materials in mixer move following the force generated by the continuously blending plough blade, thus to achieve scattering, dispersing and fast mixing.
Single-shaft mixer can mix different kinds of dry mortar. When some special dry mortars need adding additive like fiber ,high speed choppers can be installed inside mixer to scatter and dispense these materials.

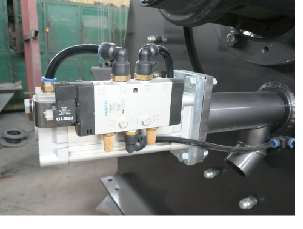

A working sampling device is side-mounted on the machine. It can help us easily observe the mixing effect in the mixer. Moreover, side-mounted design can better show the mixing result.
The technical parameters are as follows:
| Model | Volume (L) |
Power (kw) |
Weight (kg) |
Load factor | Fly-cutter (set) |
| DW500 | 500 | 7.5 | 800 | ≤0.7 | - |
| DW1000 | 1000 | 11-15 | 2000 | ≤0.7 | - |
| DW2000 | 2000 | 18.5-37 | 3000 | ≤0.7 | - |
| DW3000 | 3000 | 37-45 | 3500 | ≤0.7 | 4 |
| DW4000 | 4000 | 45-75 | 4000 | ≤0.7 | 4 |
| DW6000 | 6000 | 75-100 | 5000 | ≤0.7 | 6 |
| DW10000 | 10000 | 100-150 | 8000 | ≤0.7 | 6 |
