Yigong produce dry mortar production line,dry mix mortar production line,Automatic dry mortar equipment
Introduction:
1, Good dispersion: The equipment completely solved this problem that the proportion of different materials due to segregation and fiber and other issues of secondary reunion
2, Use range: this equipment can satisfy different performance requirements of the dry mortar production. Such as: bonding mortar, plastering mortar, heat preservation system required polymer mortar, polystyrene particle insulation mortar, etc.
3, Small investment: this equipment has obvious advantages, the price of small investment, quick effect.
4, Simple to use : the equipment has cover an area small, simple operation, low energy consumption, can produce 3-8 tons per hour
5, long service life: all damageable parts of this equipment use high strength steel (wear-resisting of high manganese steel) for the component, make it has long service life.

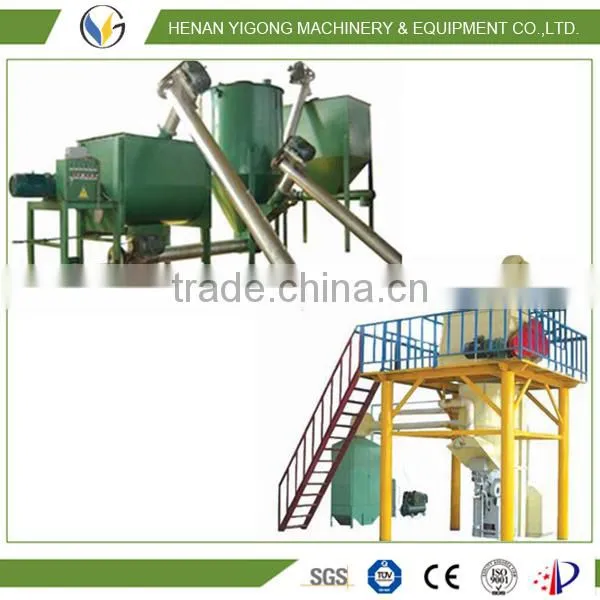

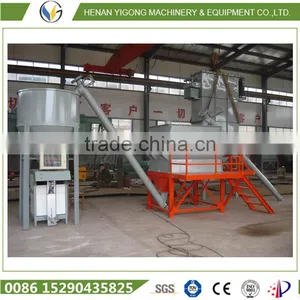

Small Production Lines we do:
Production line mode |
Output |
Occupied area |
Equipment height |
Remark of batching and packing |
Simple |
1-15t/h |
40m2 |
5-10m |
Manual batching and packing |
Basic |
5-15t/h |
40-60m2 |
6-10m |
Manual batching, automatic packing |
Semiautomatic of serial mode |
5-15t/h |
40-80m2 |
8-12m |
Automatic batching of coarse material, manual batching of additive, automatic packing |

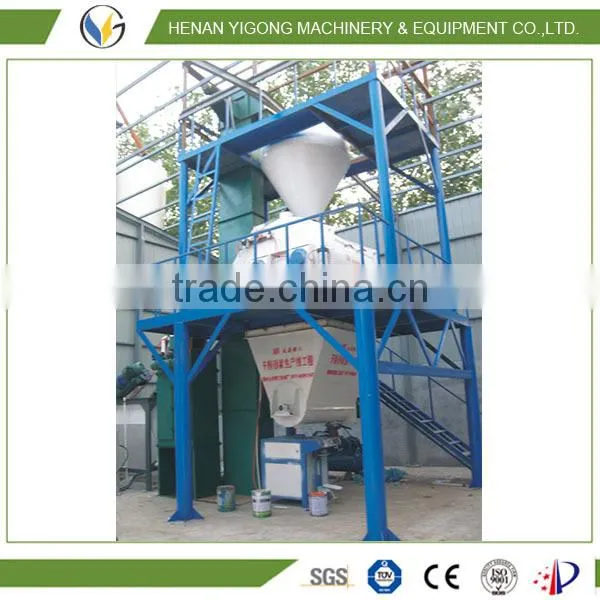

Semiautomatic of tower mode |
5-50t/h |
40-100m2 |
10-25m |
the same to serial semiautomatic mode |

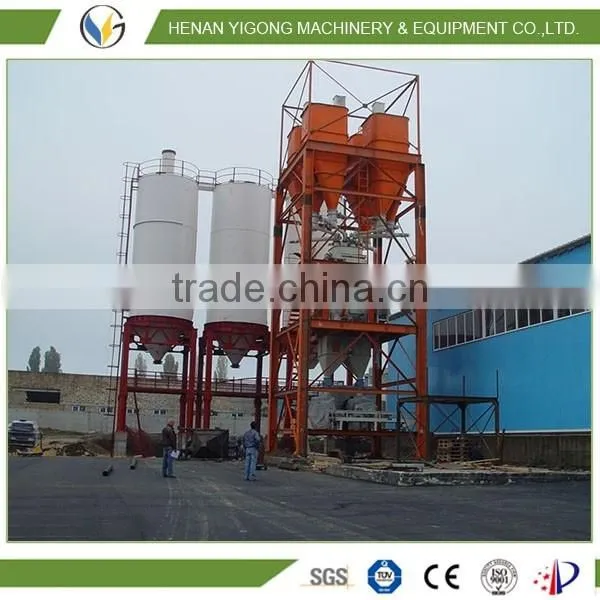

Fully automatic of tower mode |
5-50t/h |
60-500m2 |
10-25m |
Automatic batching of all raw material and packing |
1.Main configuration for 20-25T/H dry mortar

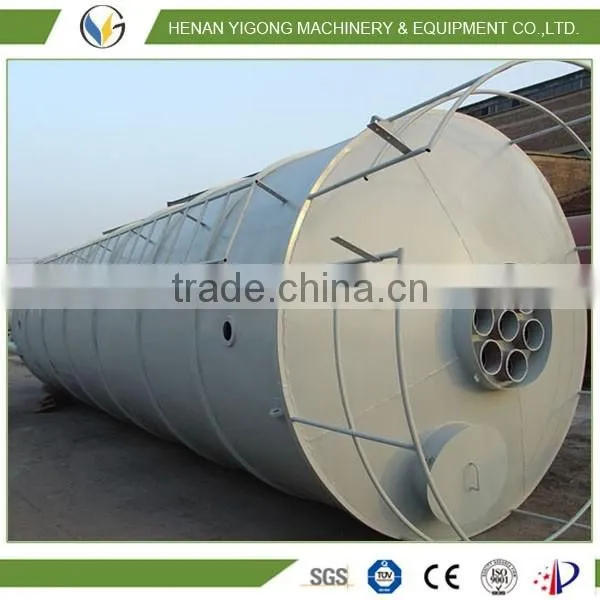

- 1.Raw material Storage Silos
- 2.Sand Drying Unit

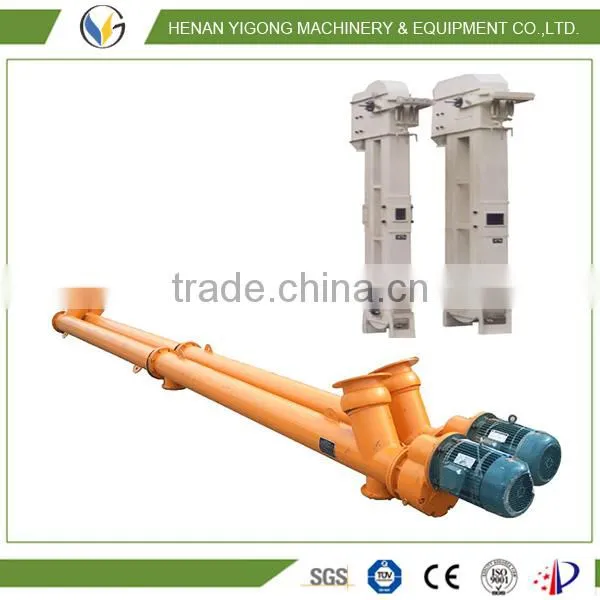

- 3.Bucket Elevator
- 4.Sprial Conveyor
- 5.Weighing System

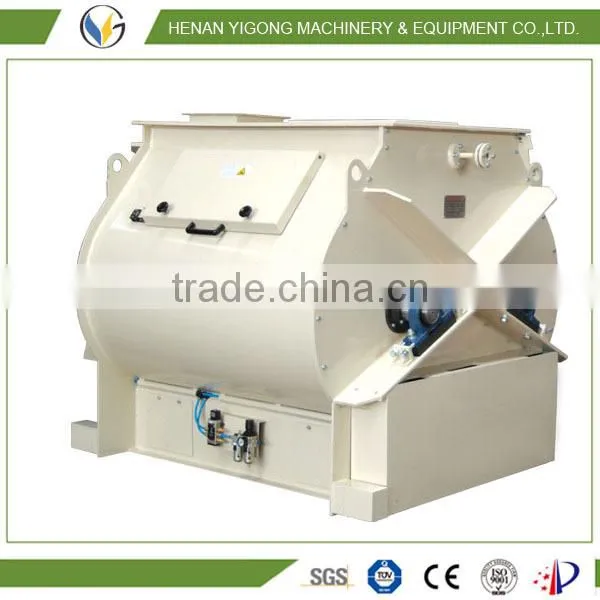

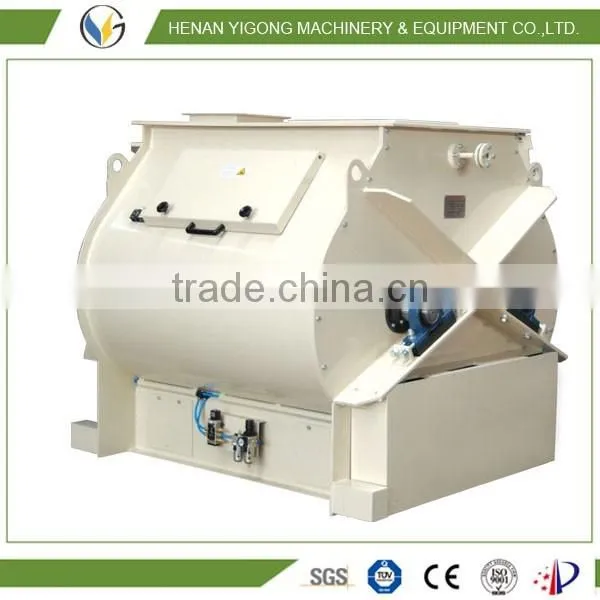

- 6.Mixer
- 7.End Product hopper
- 8.Bagging System

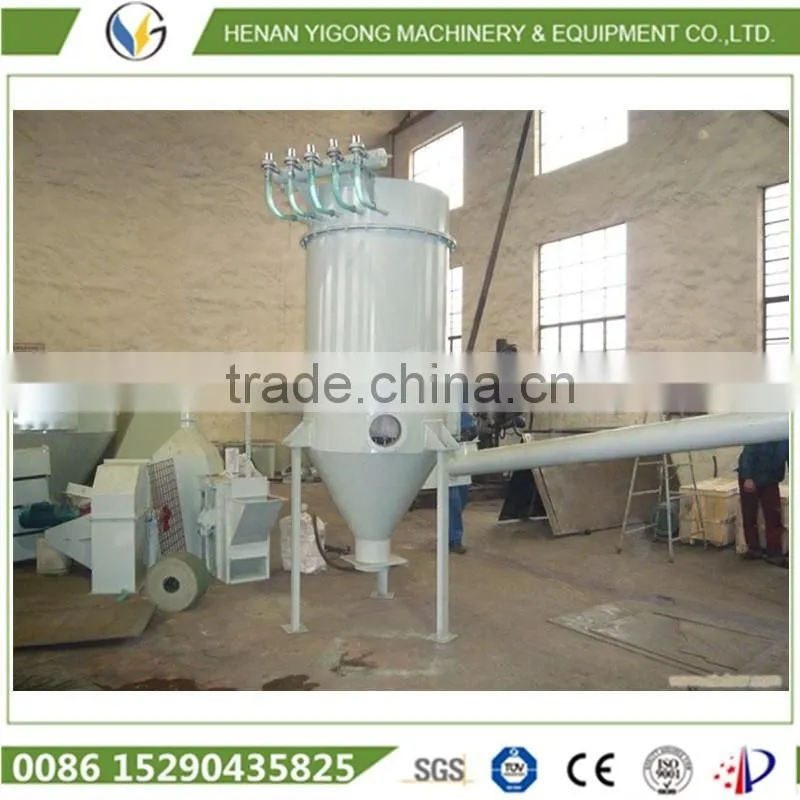

- 9.De-dusting System
- 10.Computer control system
- 11.Air Compressor
- 12.Air-phase Balance System
- 13.Steel Structure
- 14.End Products Storage Silos
2. Features for 20-25T/H dry mortar
1. Stable performance, particularly strong wear resistance, long service life, the material is mixed evenly;
2. Moderate investment, short construction period, investment returns quickly.
3.Advantage for 20-25T/H dry mortar
1. In contrast to work-site mortars ,dry mortar is also called pre-mixed mortar ,which is produced in the factory with dedicated facilities on batching and blending of ingredients in highly-controlled process .It can be used directly just by adding water in work site .
2. It has advantages of consistent quality ,controlled inventory ,saving time and labor cost .By adding different chemical additives ,it has fine properties of bond ,thermal and acoustic insulation,crack-resistance ,workability , Water-retention,wear-proof,anti-corrosion,etc.
3. Dry mortar can match different kinds of new construction materials by improving formulation.These good properties not only improve building’s quality and life greatly,but also decrease the usage of mortar in a large degree.
4. The demand for dry mortar has increased rapidly due to its outstanding merit comparing with the mortar mad in work-site.
4.Technical Parameter for 20-25T/H dry mortar
Name |
Parameters |
||
Total Power |
≥77KW |
Standard |
|
Productivity |
15T/h |
|
|
Feeding capacity |
2.0m³ |
||
Discharge capacity |
2.0M³ |
||
Working cycle |
150S |
||
Electric power supply |
380V 50HZ |
Three-phase five wire cable |
|
|
Voltage fluctuation ≤±5%; Frequency change≤±0.5HZ |
||
Supply transformer |
≥200KVA |
||

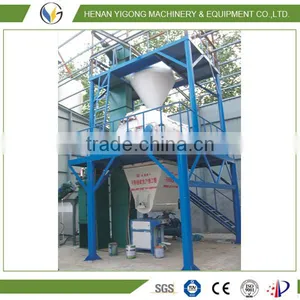

5.Detailed pictures of 20-25T/H dry mortar
