Help Center20KV 2500PF 252 High Voltage Coupler Capacitor
Related Products
-
20KV 4NF 4000PF 402 Multiplier Circuit High Voltage CapacitorUS$ 20 - 45MOQ: 10 Pieces -
20KV 5000PF 502 5NF High Frequency Pulse CapacitorUS$ 20 - 45MOQ: 10 Pieces
-
20KV 8NF 8000PF 802 Anxon High Voltage Ceramic CapacitorUS$ 30 - 50MOQ: 10 Pieces
-
20KV 0.01UF 10NF 10000PF 103 AXC High Voltage Ceramic CapacitorUS$ 30 - 50MOQ: 10 Pieces
-
30KV 400PF 401 Direct Cross to LCC Ceramic CapacitorUS$ 7 - 28MOQ: 10 Pieces
1, Factory price
2, Quality gurrantee
3, Fast delivery
4, Low cost shipping
5, Samples available for evaluate
6, World class customers experience

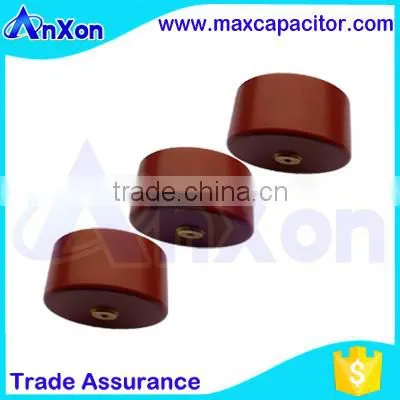

Product Name: 20KV 2500PF 252 high voltage coupler capacitor
High Voltage Ceramic Capacitor 20KV 2500PF, Molded type Ultra-high Voltage Ceramic Capacitors 20KVAC, 20KVrms 252 high voltage doorknob capacitor, UHV doorknob ceramic capacitor offered by AnXon Electronic
Rated Spec: |
20KV 2500PF , 20KV 252 |
AnXon P/N |
AXCHV20DL252KDB |
Tolerance: |
K, ±10% |
Type: |
Molded / Doorknob / Screw Mounting |
Ceramic Dielectric : |
N4700 |
Operating Temperature: |
-30C ~ 85C |
Size / Dimension(ΦD×T*H): |
D:52mm, H:24mm |
High Voltage Ceramic Capacitor 3.6KV, 6.5KV, 7.2KV, 10KV, 12KV, 13KV, 15KV, 20KV, 24KV, 25KV, 30KV, 35KV, 36KV, 40KV, 50KV, 60KV, 70KV, 80KV, 100KV, 120KV, 150KV Information:
- Rated Voltage (V): 3.6KVrms -70KVrms, 10KVdc-150KVdc
- Withstand Voltage: 6KVrms-50KVrms, 20KVdc-200KVdc
- Impulse Voltage: 45KVdc-225KVdc
- Capacitance Range: 10pF - 100000pF
- Operating frequency: 20KHZ-1000KHZ
- Materials: N4700, Y5T, Y5P, Y5V, Y5U
High voltage ceramic capacitor supplier, molded doorknob capacitor manufacturer,
More specifications
Part No. |
Rated Spec |
Testing voltage |
Partial discharge |
Dissipation factor |
Dimension(mm) |
||
kVdc |
kV/1min |
|
1kHz/1V |
D |
H |
M |
|
AXCHV20DL281KDB |
20KV 280PF |
DC30KV AC20KV |
AC10KV<5PC |
≤0.1% |
20 |
24 |
M4X5 |
AXCHV20DL881KDB |
20KV 880PF |
30 |
24 |
M4X5 |
|||
AXCHV20DL142KDB |
20KV 1400PF |
38 |
24 |
M4X5 |
|||
AXCHV20DL252KDB |
20KV 2500PF |
52 |
24 |
M5X5 |
|||
AXCHV20DL402KDB |
20KV 4000PF |
58 |
24 |
M5X5 |
|||
AXCHV20DL502KDB |
20KV 5000PF |
60 |
24 |
M5X5 |
|||
AXCHV20DL802KDB |
20KV 8000PF |
70 |
24 |
M5X6 |
|||
AXCHV20DL103KDB |
20KV 10000PF |
80 |
24 |
M5X6 |
|||
HV Capacitor Application Guide
