Home > Electrical & Electronics > Passive Components > Capacitor > 20KV 470PF 6 Elements Ceramic Capacitor Stacks Assembly

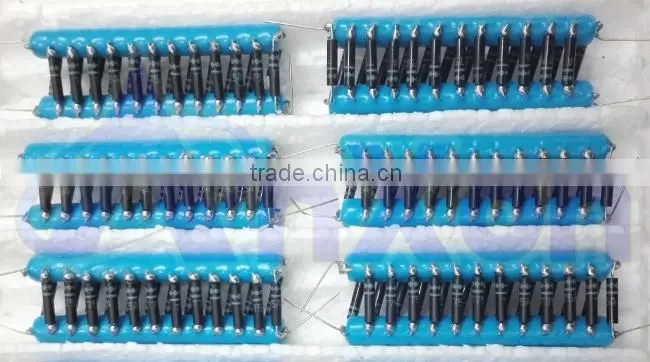

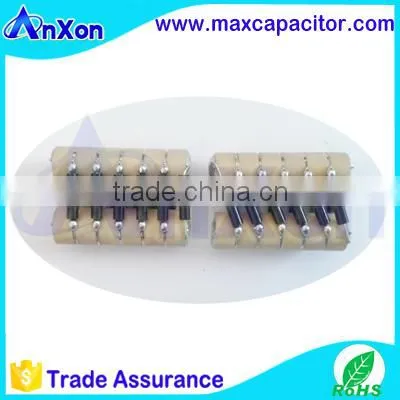

20KV 470PF 6 Elements Ceramic Capacitor Stacks Assembly

Name: 20KV 470PF 6 Elements Ceramic Capacitor Stacks Assembly
Brand: AnXon 6 elements capacitor assembly
SKU: 102706945
Availability: InStock

20KV 470PF 6 Elements Ceramic Capacitor Stacks Assembly thumbnail-1

20KV 470PF 6 Elements Ceramic Capacitor Stacks Assembly thumbnail-2

20KV 470PF 6 Elements Ceramic Capacitor Stacks Assembly photo-1

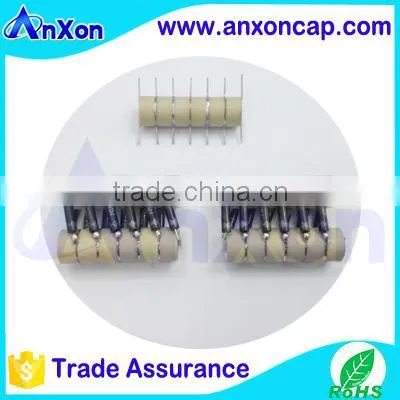

20KV 470PF 6 Elements Ceramic Capacitor Stacks Assembly photo-2

US$ 1 - 10 MOQ: 10 Pieces

Key Specifications

Get Latest Price

Place of Origin:

China

Brand Name:

AnXon 6 elements capacitor assembly

Model Number:

CT8S 6 elements capacitor assembly

Contact Supplier Request Quote Chat Now

Cixi AnXon Electronic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin China

Brand Name AnXon 6 elements capacitor assembly

Model Number CT8S 6 elements capacitor assembly

Type Ceramic Capacitor

Application Hight Voltage

Package Type Through Hole

Capacitance 100PF, 150PF, 180PF, 220PF, 270PF, 300PF, 330PF, 350PF, 470PF, 500PF

Rated Voltage 10KV, 12KV, 15KV, 20KV, 25KV, 30KV

Operating Temperature -30C ~ 85C

Specifications

1, Multiple designs up to 12 stages
2, Voltage ratings of the individual discs from 8 kVdc to 30 kVdc

3, Capacitance ratings of the individual discs from 100pF to 1000pF

4, Stacks with diodes, Other versions on request

5, Small size, Lead (Pb)-free version on request

Product Name: 20KV 470PF 6 elements ceramic capacitor stacks assembly

Description

High Voltage Ceramic Capacitor Stacks 20KV 470PF, High Voltage Multipliers unit 20KV, 20KV 471K Voltage Multiplier Assembly with diodes.

HV Voltage Multiplier Unit Application Guide

• Low power voltage multipliers

• High voltage DC generators.
• X-ray equipment for medical diagnostics

• Industrial x-ray for material control
• Airport security x-ray scanner
• Dentistry x-ray application
• Electrostatic paint spraying equipment.

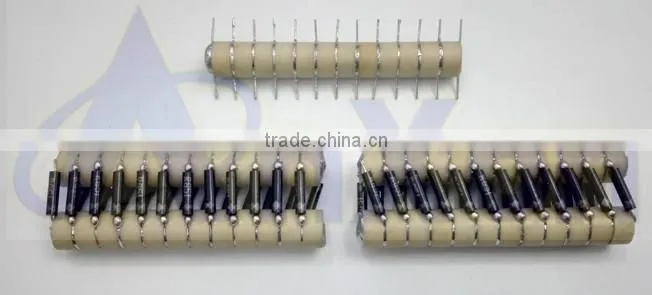

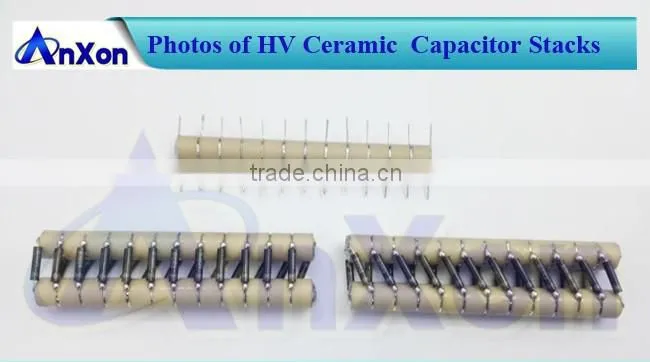

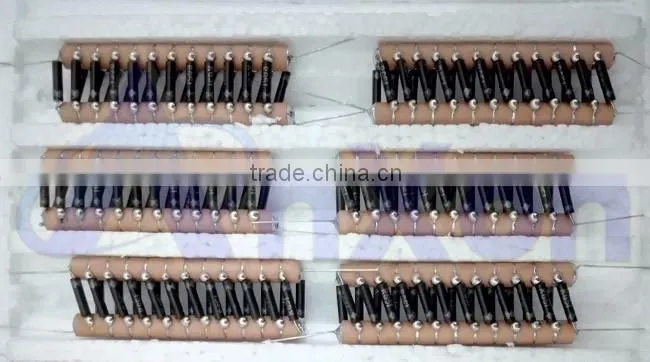

HV Ceramic Capacitor Stacks Features

• Small size, High withstand voltage
• Multiple designs up to 12 stages
• Voltage ratings of the individual discs from 10 kVDC to 30 kVDC
• Excellent performance of charge and discharge.
• Stacks with diodes

High Voltage Ceramic Capacitor Stacks Supplier, Manufacturer supply Voltage Multiplier Unit

HV Ceramic Multiplier Assembly 10KV, 12KV, 15KV, 20KV, 25KV, 30KV Informations:

Part No.	Spec.	No of Discs	Dimensions
Part No.	Spec.	No of Discs	D(mm)	L(mm)	T(mm)
CT8S12N20KV101K	20KV 100PF	12	5.2	60.0	4.3
CT8S12N20KV151K	20KV 150PF	12	6.0	60.0	3.5
CT8S12N20KV221K	20KV 220PF	12	5.8	56	4.0
CT8S13N20KV301K	20KV 300PF	12	7.0	56.2	4.0
CT8S12N20KV331K	20KV 330PF	12	6.0	58.0	4.2
CT8S12N20KV351K	20KV 350PF	12	7.8	61.7	4.4
CT8S12N20KV361K	20KV 360PF	12	8.0	60.0	3.5
CT8S12N20KV471K	20KV 470PF	12	8.7	72.3	4.3
CT8S10N20KV501K	20KV 500PF	10	6.5	54.5	4.7
CT8S12N25KV221K	25KV 220PF	12	5.7	78.2	5.4
CT8S11N25KV351K	25KV 350PF	11	7.0	75	5.5
CT8S12N25KV501K	25KV 500PF	12	9.0	85	5.2
CT8S12N30KV221K	30KV 220PF	12	7.0	83.8	5.2

Advantage:

1.Low MOQ: It can meet your testing purpose very well.

2.Custom Design Accepted : We can produce as your design .

3.Good Service : We treat clients as friend.

4.Good Quality :We have strict quality control system .Good reputation in the market.

5.Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).

Our Innovation

1.Quality & Service At AnXon, our #1 priority has always been providing our clients with great quality products and superior customer service.

2.Quick Lead Time We're dedicated to providing the quickest turnaround times and work very Hard to ensure that all of your deadlines are met.

3.Unbeatable Prices We continuously strive to find ways of reducing our production costs, and passing the savings Over to you!

4.Brand Awareness The goal of any strong brand is achieve a level of awareness that instills the idea of quality and value into all of your potential customers.

High Quality,Good Price,Fast Delivery,Please send us your RFQ!
