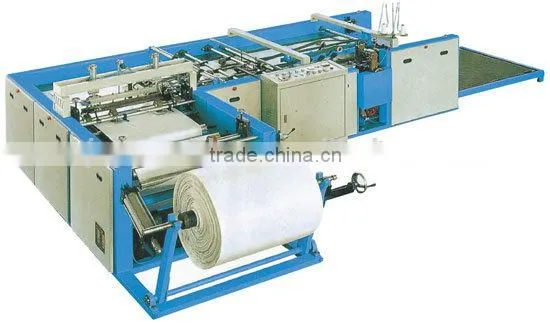

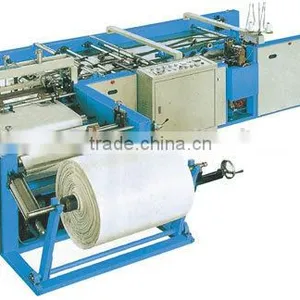

pp woven bag automatic cutting and sewing machine
1. cutting and sewing machine:
2. More imformation for cutting and sewing Machine:
1. It can automatically accomplish the fixed-length thermal cutting and the bottom hemming for the woven cloth in roll, which saves labor forces.
2. It adopts the servo motor to drive, and the optical code meter to count the length, which precisely controls the length of bags.
3. After the heat cutting, the plackets of bags are easy to open, not conglutinated.
4. Pneumatic up-coiling, the operation is convenient.
3. Main Technical parameters:
Max.Diameter of cloth roller(mm) |
1200mm |
Max.cutting width(mm) |
800mm |
Cutting leigth(mm) |
600-1200mm |
Cutting precision(mm) |
4mm |
Folding width(mm) |
20-30mm |
Production capacity(pcs/m) |
20-30 |
Gross power(kw) |
6kw |
Weight(kg) |
2500kg |
Outline size |
6000x2200x1200mm |
Technical Paramters are subject to change without prior notice!
4. Flow chart of woven bag production:

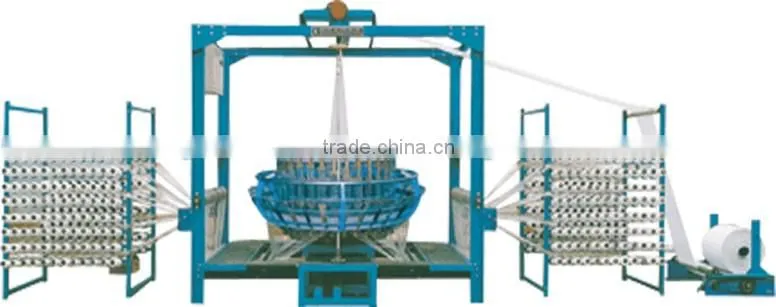

6.Pictures for other type of machines:
7.Contact us:
Wenzhou NanYi Plastic Machinery Co.,Ltd
ADD:No.268, National Road104, Aojiang Town, Wenzhou City, Zhejiang,China
Website: http://www.nanyijixie.comor
https://img13.fr-trading.com
Tel: +86-577-63696280 Fax:+86-577-63690818
Mob:+86-13867739043
Skype: lissy.xie
