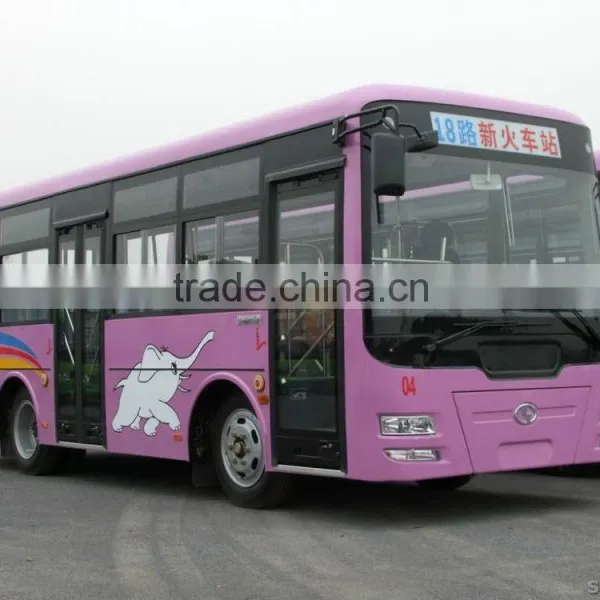

8.1m 34 Seats City Bus

Name: 8.1m 34 Seats City Bus
Brand: Shaolin
SKU: 102647491
Availability: InStock

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Seats:

21 - 40

Emission Standard:

Euro 3

Transmission Type:

Manual

Jinan Huawo Heavy Duty Truck Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

any port in china

Delivery Detail:

Delivery time depends on order quantity.

Seats 21 - 40

Emission Standard Euro 3

Transmission Type Manual

Max Speed 91 - 110 km/h

Steering Position LHD

Fuel Type Diesel

Dimensions (L x W x H) (mm) 8106*2400*3145mm

Place of Origin Henan, China

Brand Name Shaolin

Model Number SLG6810C3GFR

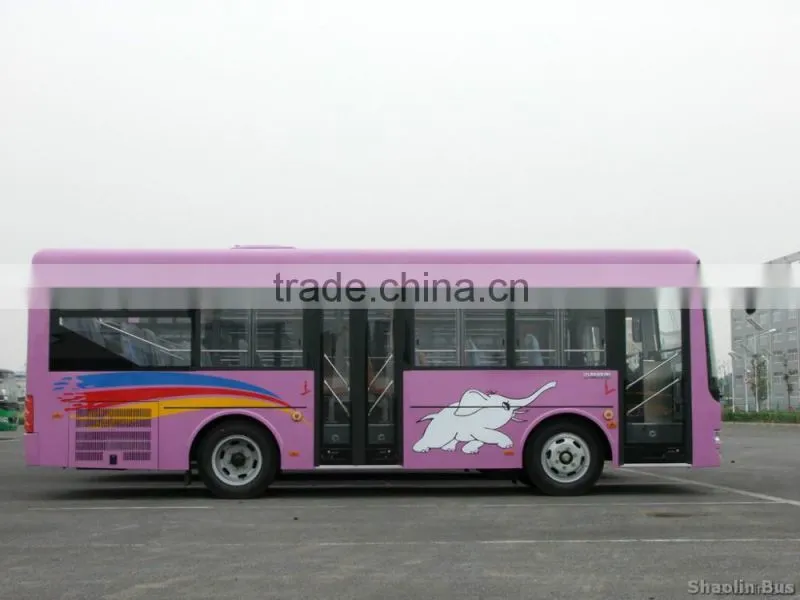

8.1m 34 seats city bus

TECHNICAL DATA:

ITEM		SLG6810C3GFR
DIMENSION	LWH(MM)	810624003145
	Tread F (MM)	1830
	Tread R (MM)	1680
	WHEELBASE (MM)	3800
WEIGHT	TOTAL MASS (KG)	11185
PERFORMANCE	MIN. VEHICLE TURNING CIRCLE (M)	17100
	MAX. SPEED (KM/H)	110
	ANGLE (APP/DEP)	13/10
SEAT CAPACITY		34 seats
FRAMEWORK		STRAIGHT BEAM
ENGINE	MODEL	ISDE180-30
	TYPE	4 CYLINDER IN-LINE
	RATED-POWER (KW/R/MIN)	118KW
	MAX. TORQUE (N.M)	650
	DISPLACEMENT (L)	9.9
	EMISSION STANDARD	EURO III
	FUEL TYPE	DIESEL
CLUTCH	TYPE	SINGLE PLATE DRY CLUCH
	SIZE
	CLUTCH BOOST	WITH PUMP
TRANSMISSION	MODEL	QJ705
	MAX. TORQUE	550
	SHIFTS	5 SPEED MANUA
	CONTROL SYSTEMS	FLEXIBLE SHAFT
FRONT AXLE		3.5T
REAR AXLE		7.0T
BRAKING SYSTEM	STEERING	POWER STEERING
	SERVICE BRAKE	DUAL-CIRCUIT AIR BRAKING SYSTEM
	PARKING BRAKE	Diaphragm spring brake
	F/R BRAKING DIA.	400
	F/R BRAKING SHOE Width	130/180
SUSPENSION STYLE		LITTLE PIECE OF LEAF SPRING
TYRE
OIL TANK CAPACITY		120L

BODY, ELECTRIC APPLIANCE:

ITEMS	NAME	SPECIFICATION	Remark

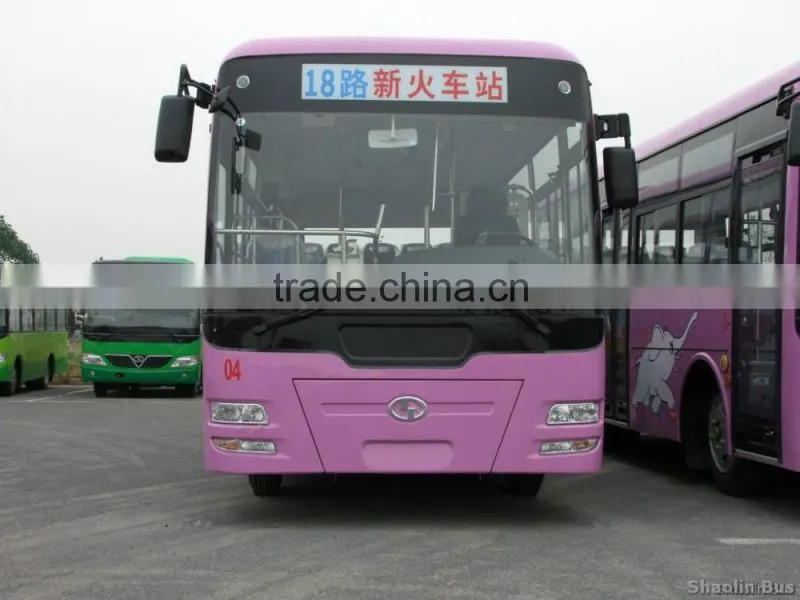

1	FRONT WINDSCREEN	FIXED, LAMINATED GLASS,
2	REAR WINDSCREEN	FIXED, TOUGHENED GLASS
3	BATTERY	TWO PIECE OF 120Ah BATTTERY
4	INNER DECORATION	PLASTICS LATERAL CONFINING ALUMINUM-PLASTIC PLATE
5	REARVIEW MIRROR	ORDINARY MIRRIOR
6	INSIDE MIRROR	STANDARD
7	PASSENGER DOOR	PNEUMATIC FOLDING DOOR
8	SIDE WINDOW	THE UPPER PART FIXED GLASS , BOTTOM OF PUSH-PULL WINDOW
9	PASSENGER SEAT	BLOW MOLDING SEAT
10	CLEARSTORY	ESCAPE HATCH

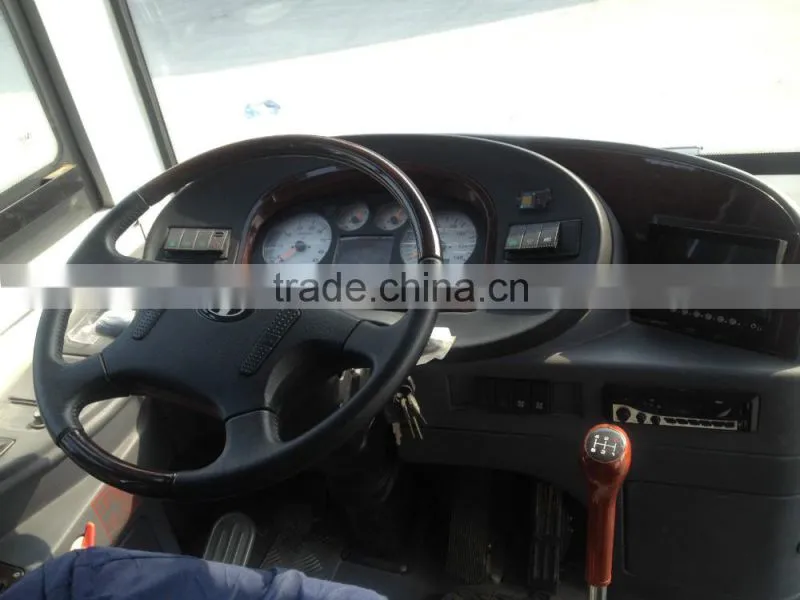

11	STEERING WHEEL	ADJUSTABLE STEERING WHEEL
12	FLOOR BOARD	FLAT FLOOR
