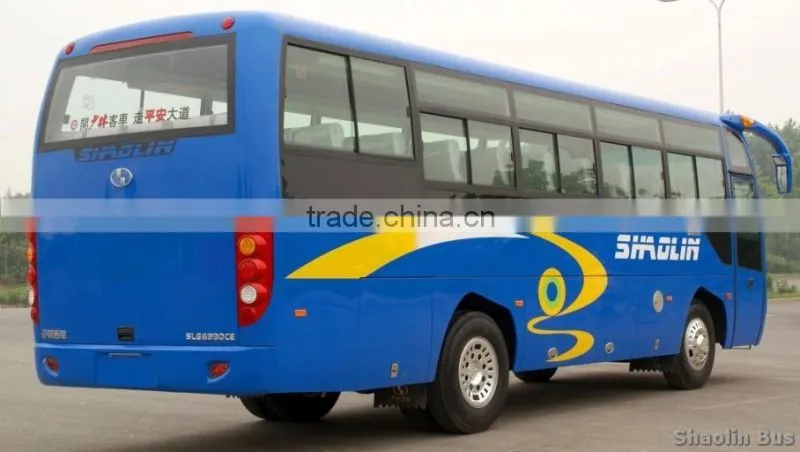

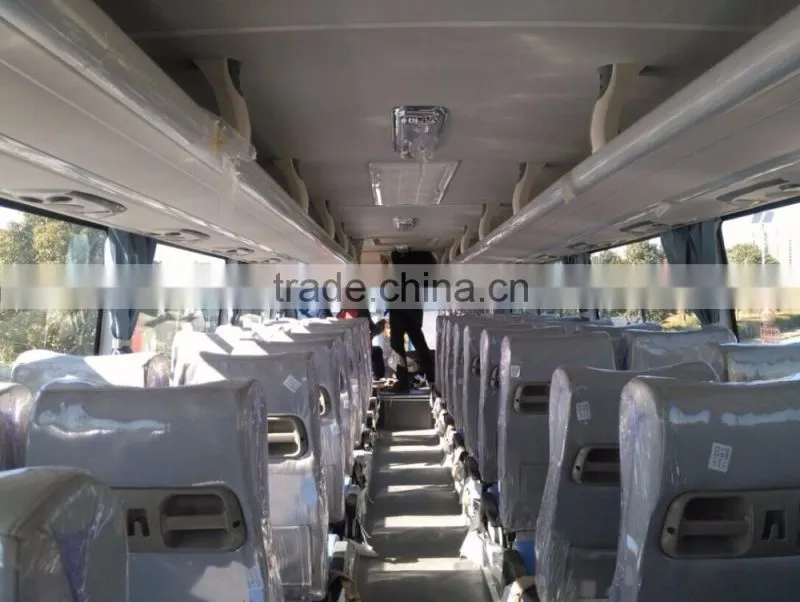

9.8m 48 Seats Bus Front Cum Mins Engine ZF Gearbox

Name: 9.8m 48 Seats Bus Front Cum Mins Engine ZF Gearbox
Brand: Shaolin
SKU: 102647523
Availability: InStock

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Seats:

31 - 50

Emission Standard:

Euro 3

Transmission Type:

Manual

Jinan Huawo Heavy Duty Truck Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

any port in china

Delivery Detail:

Delivery time depends on order quantity.

Seats 31 - 50

Emission Standard Euro 3

Transmission Type Manual

Condition New

Fuel Type Diesel

Place of Origin China

Brand Name Shaolin

Model Number SLG6930C3E RHD

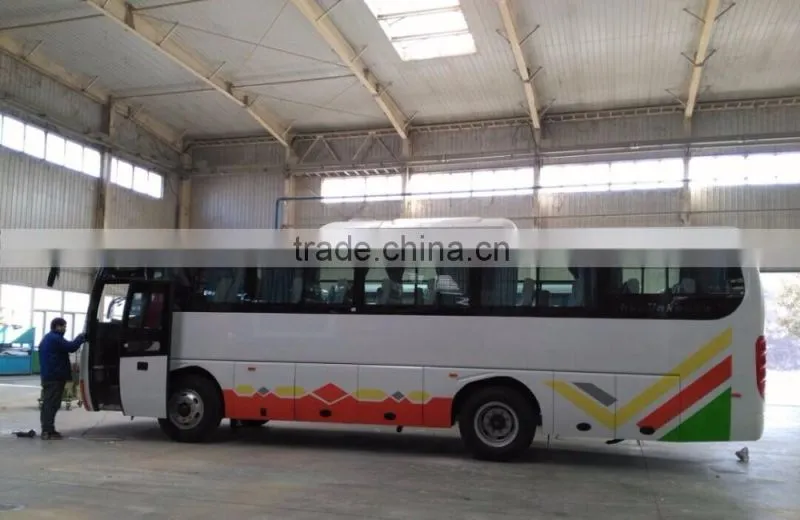

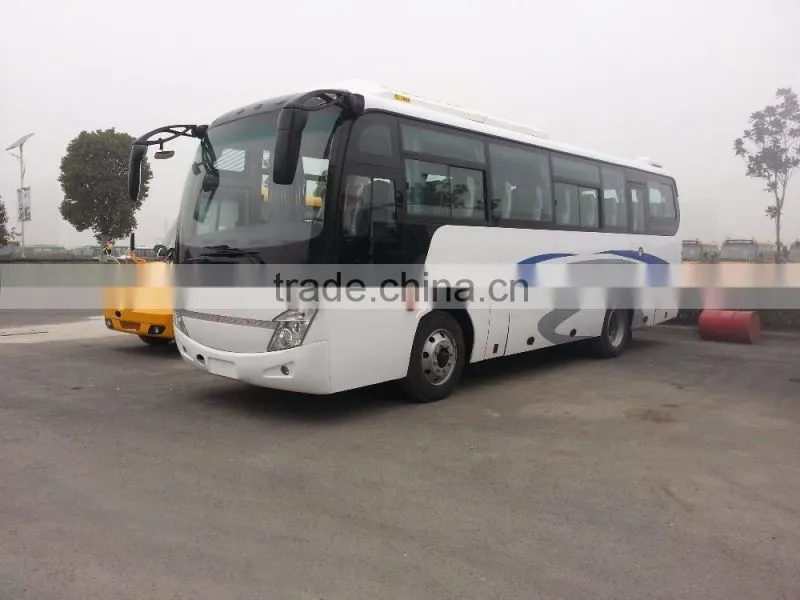

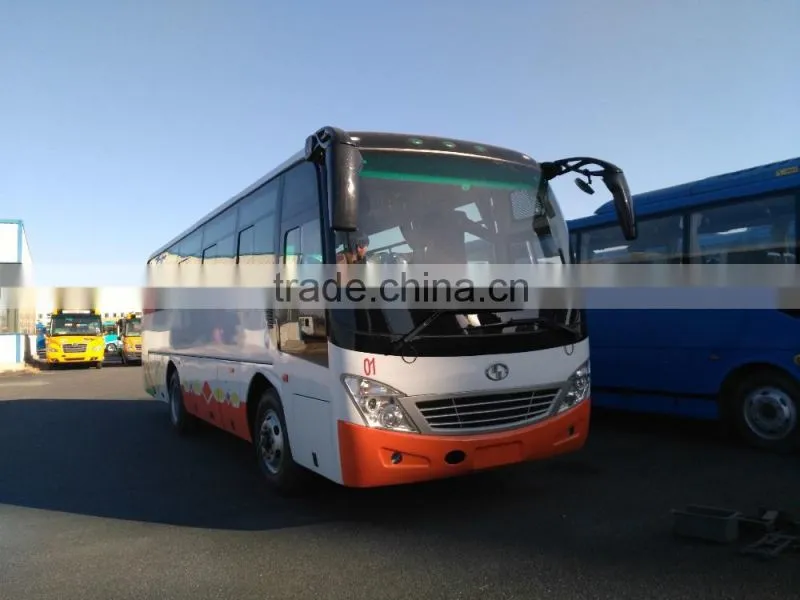

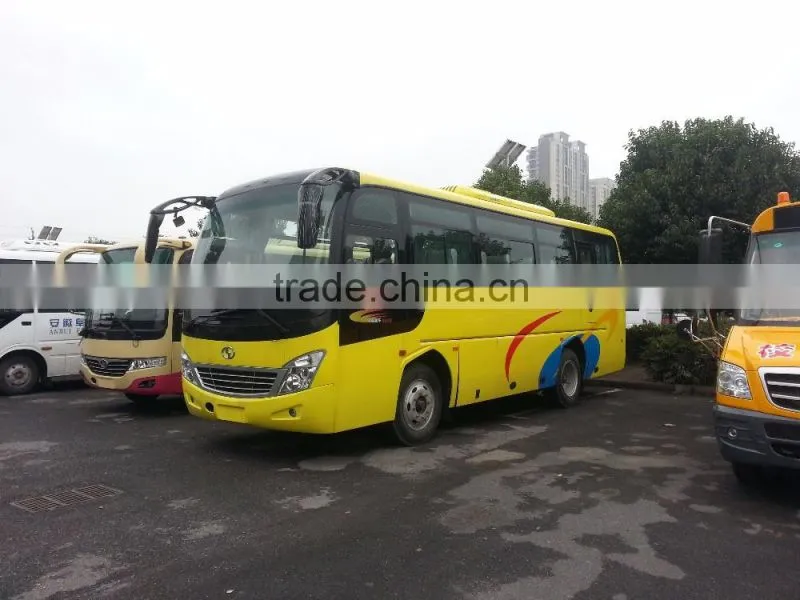

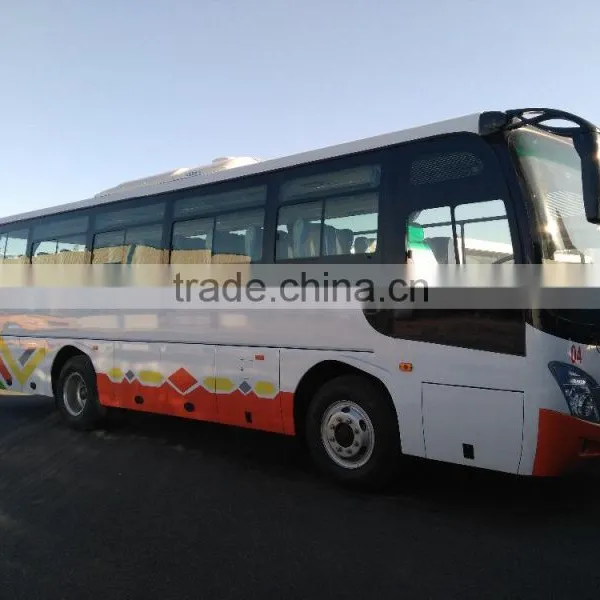

9.8m 48 seats bus front Cum mins engine ZF gearbox

TECHNICAL DATA:

ITEM		SLG6930C3E RHD
DIMENSION	LWH(MM)	980024503480
SEAT CAPACITY		48 seats
FRAMEWORK		STRAIGHT BEAM
ENGINE	MODEL	Cummins EQB210-30
	TYPE	4 CYLINDER IN-LINE
	RATED-POWER (KW/R/MIN)	155KW
	MAX. TORQUE (N.M)	600/600/600
	EMISSION STANDARD	EURO III
	FUEL TYPE	DIESEL
CLUTCH	TYPE	SINGLE PLATE DRY CLUCH
CLUTCH	CLUTCH BOOST	WITH PUMP
TRANSMISSION	MODEL	ZF TECHNOLOGY-QJ
	MAX. TORQUE	550
	SHIFTS	ZF TECHNOLOGY qijiang 6 SPEED MANUA
	CONTROL SYSTEMS	FLEXIBLE SHAFT
FRONT AXLE		4.5T
REAR AXLE		8.0T
BRAKING SYSTEM	STEERING	POWER STEERING
	SERVICE BRAKE	DUAL-CIRCUIT AIR BRAKING SYSTEM
	PARKING BRAKE	Diaphragm spring brake
	F/R BRAKING DIA.	Ø400
	F/R BRAKING SHOE Width	130/155
SUSPENSION STYLE		STEEL LEAF SPRING
TYRE		9.00-20
OIL TANK CAPACITY		140L

BODY, ELECTRIC APPLIANCE:

ITEMS	NAME	SPECIFICATION
1	FRONT WINDSCREEN	FIXED, LAMINATED GLASS,
2	REAR WINDSCREEN	FIXED, TOUGHENED GLASS

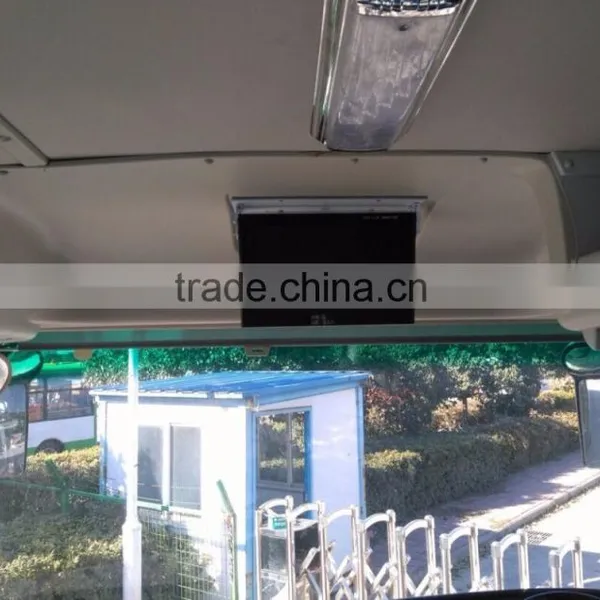

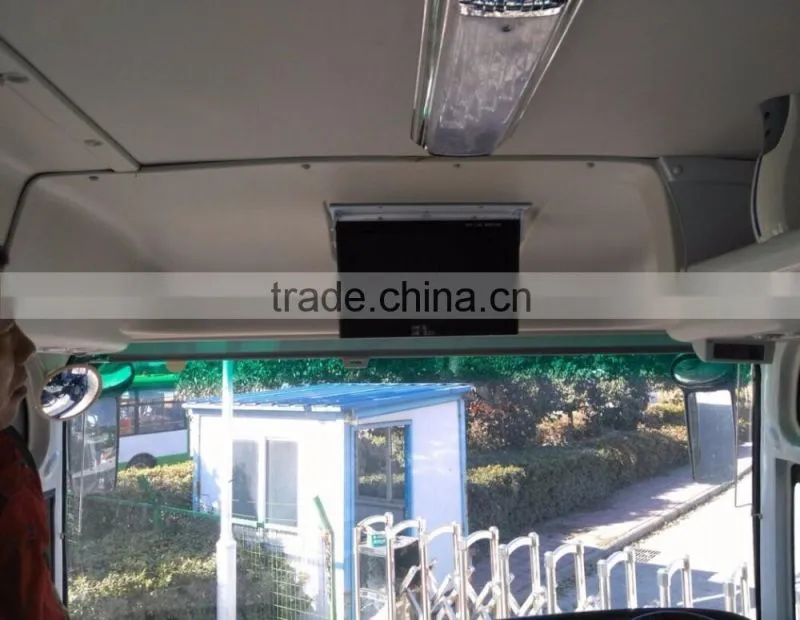

3	INSTRUMENT BOARD	WHOLE SEALED
4	INNER DECORATION	PLASTICS
5	REARVIEW MIRROR	POLE TYPE
6	INSIDE MIRROR	STANDARD
7	PASSENGER DOOR	PNEUMATIC OUT SWING DOOR
8	SIDE WINDOW	WHOLE SLIDING
9	DRIVER SEAT	VINYL FRONT/ REAR ADJUSTABLE DRIVING SEAT

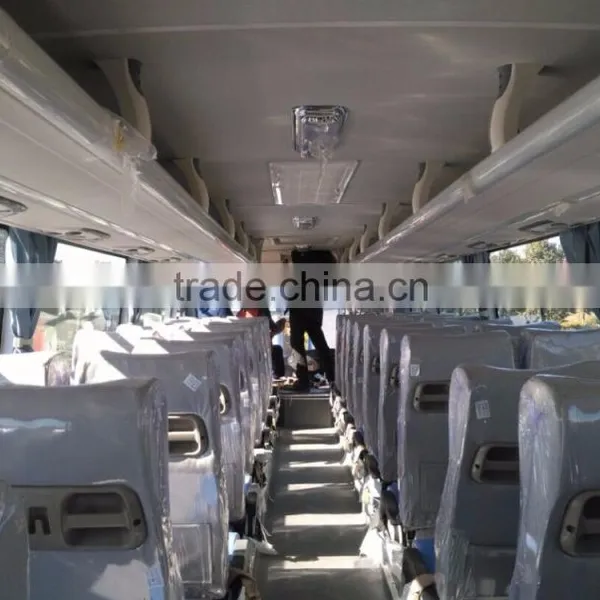

10	PASSENGER SEAT	ADJUSTABLE PASSENGER SEAT
11	CLEARSTORY	1UNIT
12	HANDRAIL	door handrail
13	FLOOR BOARD	BAMBOO AND RUBBER FLOWER
14	RAIN WIPER	YES
15	RADIO	AM/FM RADIO
16	FROTH	FRONT,REAR,TOP AND SIDE (10 MM THICK)
17	ANTISEPSIS GRADE	SUPERFINE
18	REAR LUGGAGE BOX	YES
19	FRONT DEFROST	YES
20	AIR CONDITIONER	YES
