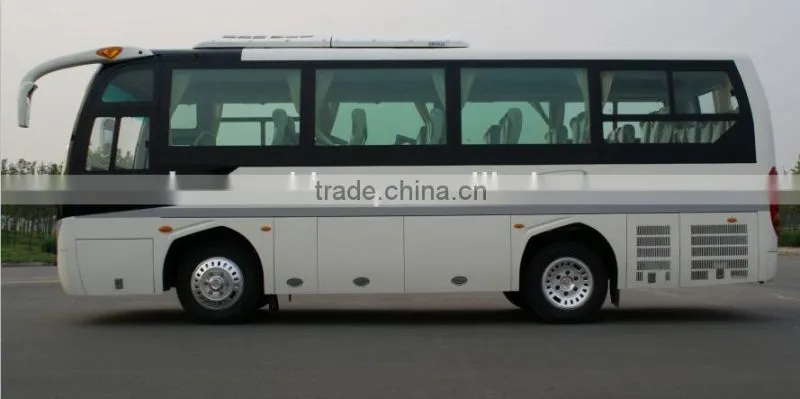

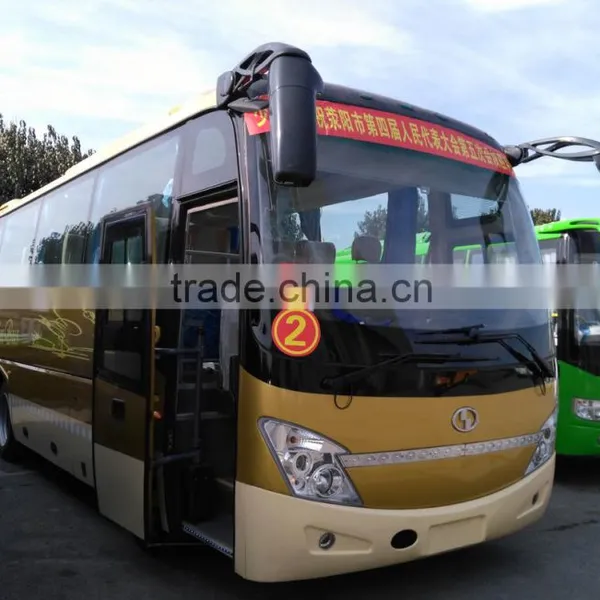

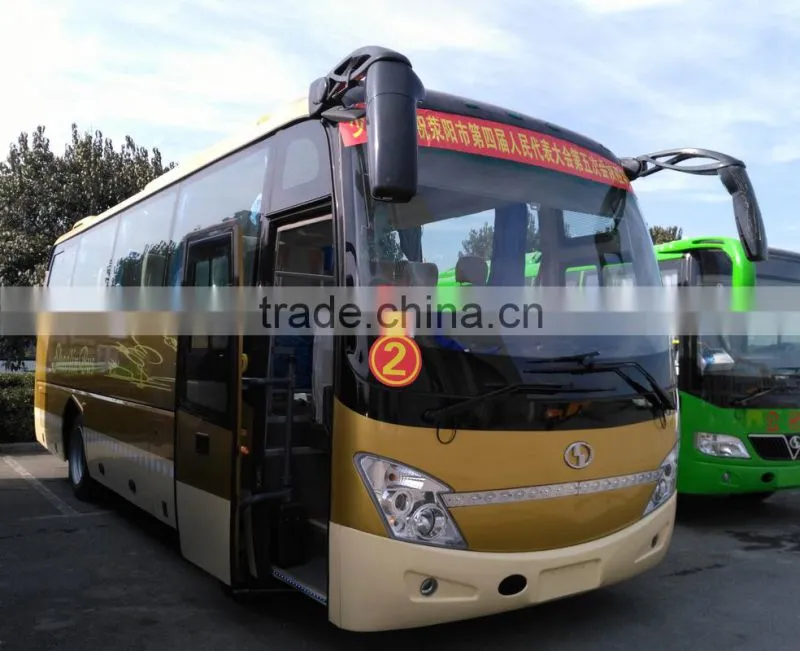

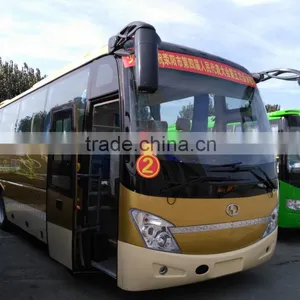

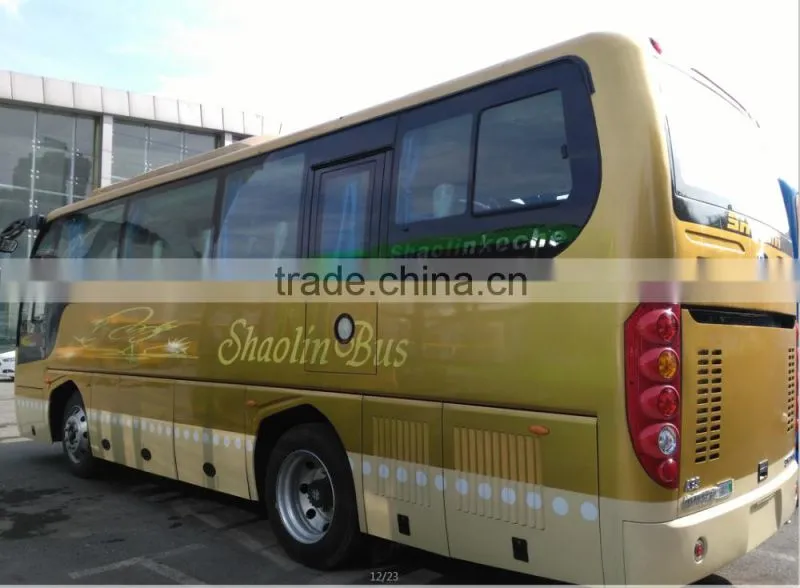

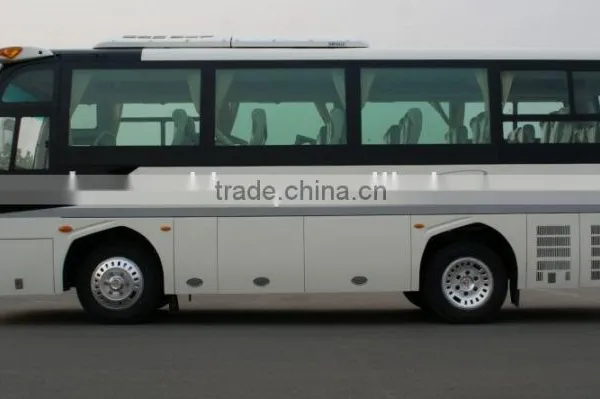

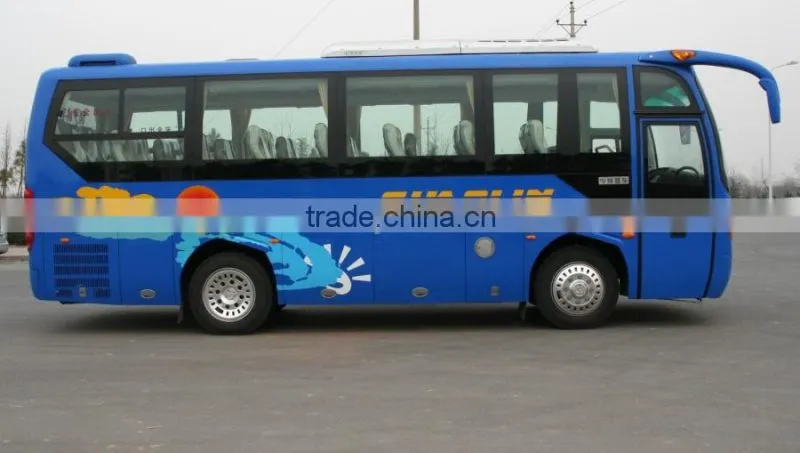

37-40 SEATS 8.5m BUS Rear Engine

Name: 37-40 SEATS 8.5m BUS Rear Engine
Brand: Shaolin
SKU: 102646325

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Seats:

21 - 40

Emission Standard:

Other, EURO2 EURO 3

Transmission Type:

Manual

Jinan Huawo Heavy Duty Truck Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

any port in china

Delivery Detail:

Delivery time depends on order quantity.

Seats 21 - 40

Emission Standard Other, EURO2 EURO 3

Transmission Type Manual

Max Speed 91 - 110 km/h

Steering Position LHD

Fuel Type Diesel

Dimensions (L x W x H) (mm) 8460*2450*3300

Place of Origin Henan, China

Brand Name Shaolin

Model Number SLG6810C4ER

37-40 SEATS 8.5m BUS Rear engine

TECHNICAL DATA:

ITEM		SLG6810C4ER
DIMENSION	LENGTHWIDTHHEIGHT(MM)	8460×2450×3300
	Tread F (MM)	1950
	Tread R (MM)	1800
	WHEELBASE (MM)	4000
WEIGHT	TOTAL MASS (KG)	11200
PERFORMANCE	MIN. VEHICLE TURNING CIRCLE (M)	16512
	MAX. SPEED (KM/H)	100
	ANGLE (APP/DEP)	13/10
Max SEAT CAPACITY		37-40 seats
FRAMEWORK		STRAIGHT BEAM
ENGINE	MODEL	EURO 2 CUMMINS ENGINE EQB180-20 /132KW EQB210-20/155KW EURO 2 YC4G180-20/132KW EURO 3 CUMMINS ENGINE ISDE 180-30/132KW ISDE 210-30/155KW EURO 3 YC4G180-30/132KW
	TYPE	4 CYLINDER IN-LINE
	RATED-POWER (KW/R/MIN)	132KW/155KW
	MAX. TORQUE (N.M)	660/700
	EMISSION STANDARD	EURO II/EURO III
	FUEL TYPE	DIESEL
CLUTCH	TYPE	SINGLE PLATE DRY CLUCH
CLUTCH	CLUTCH BOOST	WITH PUMP
TRANSMISSION	MODEL	ZF TECHNOLOGY QIJIANG QJ5S600
	MAX. TORQUE	600
	SHIFTS	5 SPEED MANUAL/6 SPEED MANUAL
	CONTROL SYSTEMS	FLEXIBLE SHAFT
FRONT AXLE		4.2T
REAR AXLE		6.8T
BRAKING SYSTEM	STEERING	POWER STEERING
	SERVICE BRAKE	DUAL-CIRCUIT AIR BRAKING SYSTEM
	PARKING BRAKE	Diaphragm spring brake
	F/R BRAKING DIA.	¢400
	F/R BRAKING SHOE Width	130/155
SUSPENSION STYLE		STEEL LEAF SPRING
TYRE		8.25-20
OIL TANK CAPACITY		180L

BODY, ELECTRIC APPLIANCE

ITEMS	NAME	SPECIFICATION	Remark
1	FRONT GLASS	HIGH SPEED SAFE GLASS
2	INSTRUMENT PANEL	Multifunctional Luxury Panel
3	INNER DECORATION	Capacious and Bright Interior
4	REARVIEW MIRROR	Luxury VIEW MIRRIOR
5	INSIDE MIRROR	Wide-sighted inside Mirror
6	PASSENGER DOOR	PNEUMATIC OUT SWING DOOR
7	SIDE WINDOW	SLIDING WINDOW
8	PASSENGER SEAT	SOFT SEATS
9	SUNROOF	Adjustable Sunroof
10	STEERING WHEEL	ADJUSTABLE STEERING WHEEL
11	FLOOR BOARD	Durable Anti-skid floor
12	AIR CONDITIONER	Powerful Cooling A/C

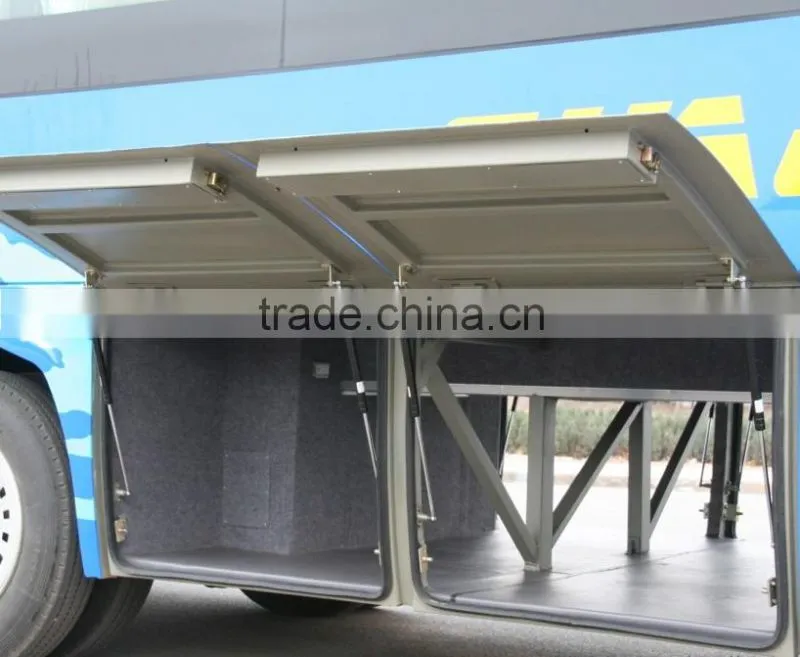

13	Luggage Compartment	Interior , Side Spacious Compartment
14	Audio Entertainment	MP3 USD RADIO
15	FRONT DEFROST	Powerful Defroster
