35-38seats 8.6meters Length Rear Engine Bus Passenger Door Before the Front Axle

Name: 35-38seats 8.6meters Length Rear Engine Bus Passenger Door Before the Front Axle
Brand: Shaolin
SKU: 102646505

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Seats:

21 - 40

Emission Standard:

Euro 2

Transmission Type:

Manual

Jinan Huawo Heavy Duty Truck Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

any port in china

Delivery Detail:

Delivery time depends on order quantity.

Seats 21 - 40

Emission Standard Euro 2

Transmission Type Manual

Max Speed 91 - 110 km/h

Steering Position LHD

Fuel Type Diesel

Dimensions (L x W x H) (mm) 7220*2240*2840mm

Place of Origin Henan, China

Brand Name Shaolin

Model Number SLG6860C3GFR RHD/LHD

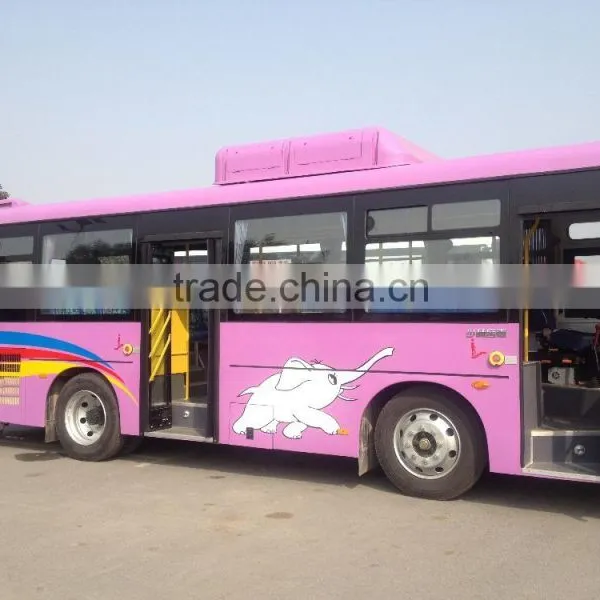

35-38seats 8.6meters length Rear engine bus passenger door before the front Axle

TECHNICAL DATA:

ITEM		SLG6860C3GFR RHD/LHD
DIMENSION	LENGTHWIDTHHEIGHT(MM)	8550×2400×3145
	Tread F (MM)	1910
	Tread R (MM)	1800
	WHEELBASE (MM)	3900
WEIGHT	TOTAL MASS (KG)	11185
PERFORMANCE	MIN. VEHICLE TURNING CIRCLE (M)	11
	MAX. SPEED (KM/H)	90
	ANGLE (APP/DEP)	13/10
Max SEATS CAPACITY		35-39 seats
FRAMEWORK		REAR ENGINE STRAIGHT BEAM
ENGINE	MODEL	EURO3 YC4G180-30/132KW EURO3 YC6J200-30/147KW
	TYPE	4 CYLINDER IN-LINE
	RATED-POWER (KW/R/MIN)	132KW
	MAX. TORQUE (N.M)	660
	EMISSION STANDARD	EURO3
	FUEL TYPE	DIESEL
CLUTCH	TYPE	SINGLE PLATE DRY CLUCH
CLUTCH	CLUTCH BOOST	WITH PUMP
TRANSMISSION	Gearbox	5 SPEED- MANUAL
TRANSMISSION	CONTROL SYSTEMS	FLEXIBLE SHAFT
FRONT AXLE		3.5T
REAR AXLE		8.0T
BRAKING SYSTEM	(STEERING	POWER STEERING
	SERVICE BRAKE	DUAL-CIRCUIT AIR BRAKING SYSTEM
	PARKING BRAKE	Diaphragm spring brake
	F/R BRAKING DIA.	&310
	F/R BRAKING SHOE Width	120/150
SUSPENSION STYLE		MULTIPLE-LEAF SPRING
TYRE		8.25-20
OIL TANK CAPACITY		120L

BODY, ELECTRIC APPLIANCE

ITEMS	NAME	SPECIFICATION	Remark
1	FRONT GLASS	HIGH SPEED SAFE GLASS

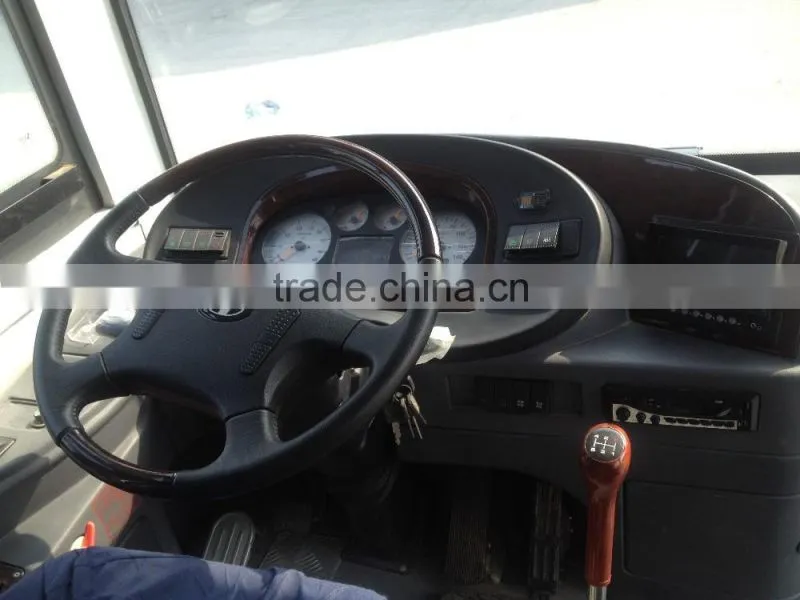

2	INSTRUMENT PANEL	Multifunctional Luxury Panel

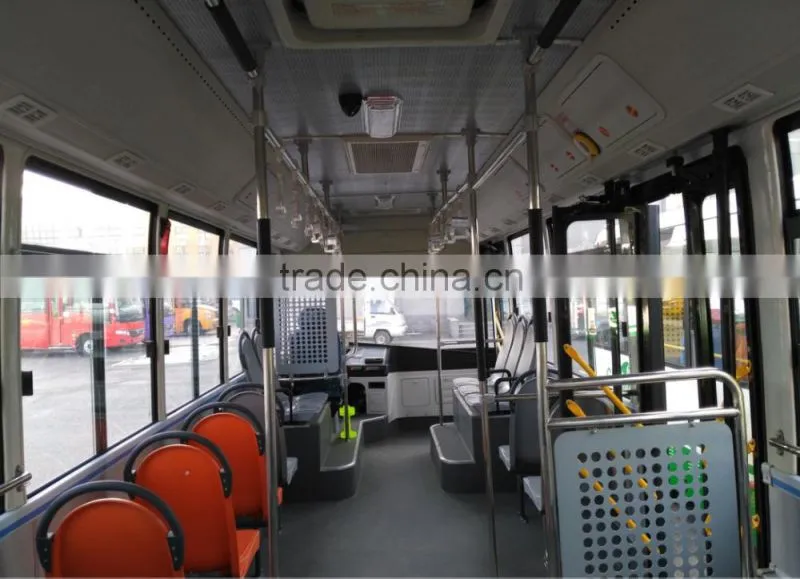

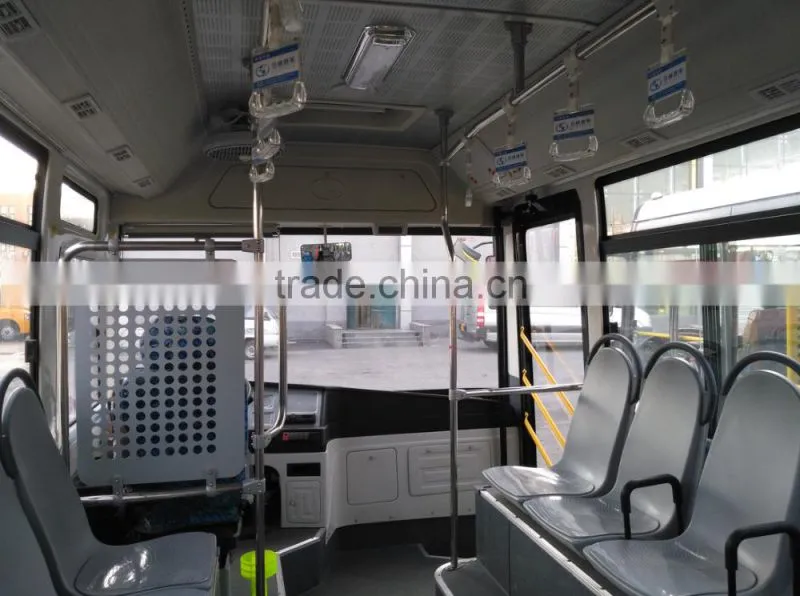

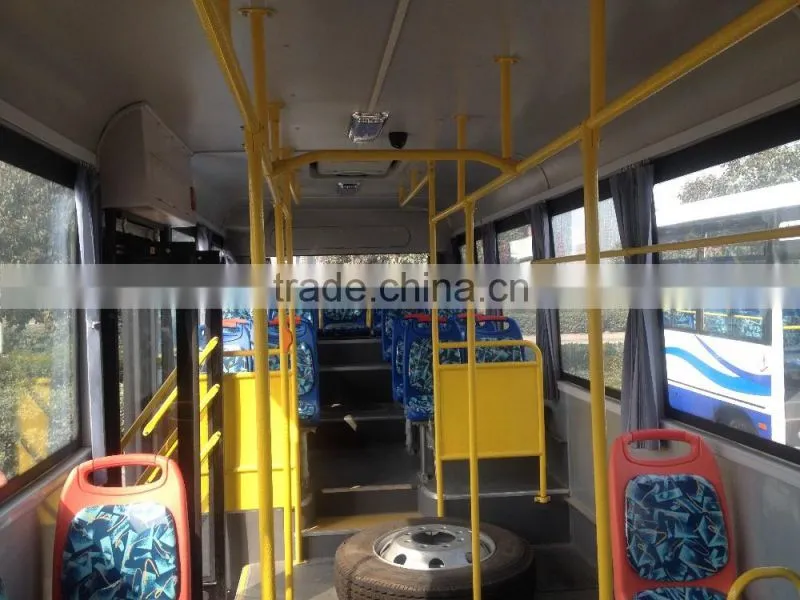

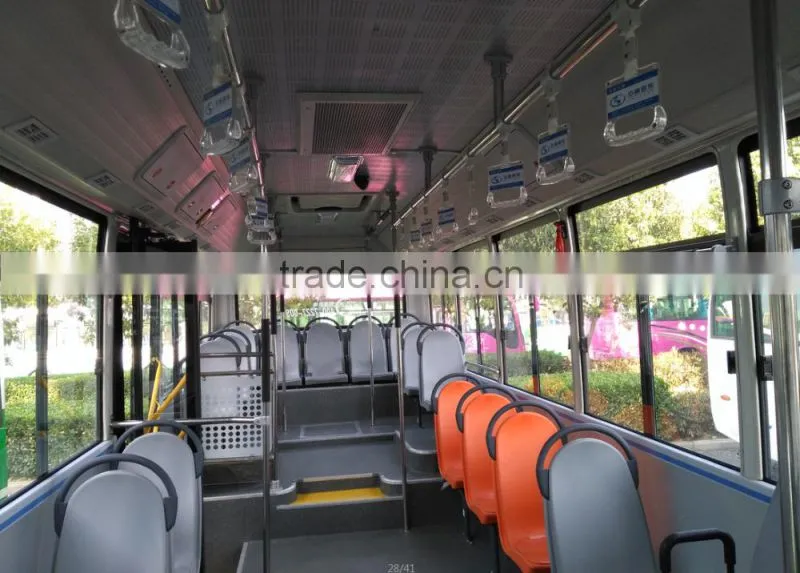

3	INNER DECORATION	Capacious and Bright Interior
4	REARVIEW MIRROR	Luxury RABBIT EAR REAR VIEW MIRRIOR
5	INSIDE MIRROR	YES

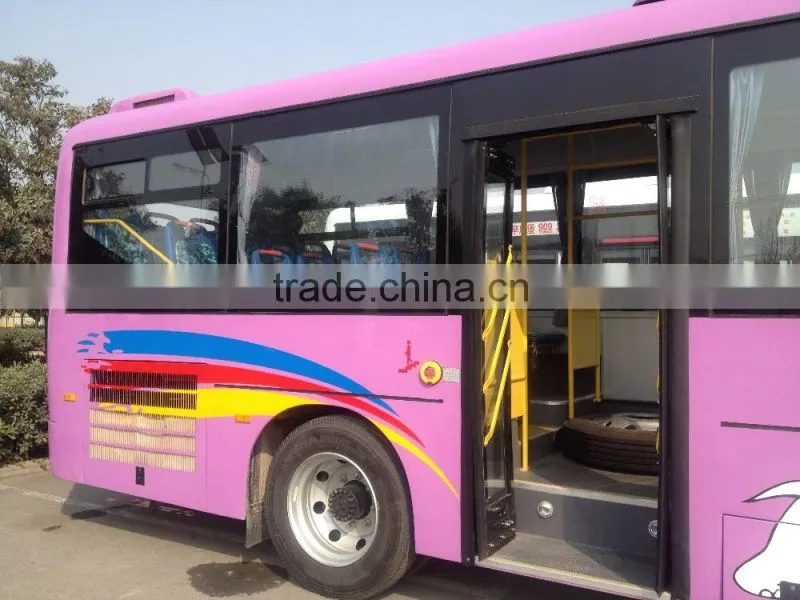

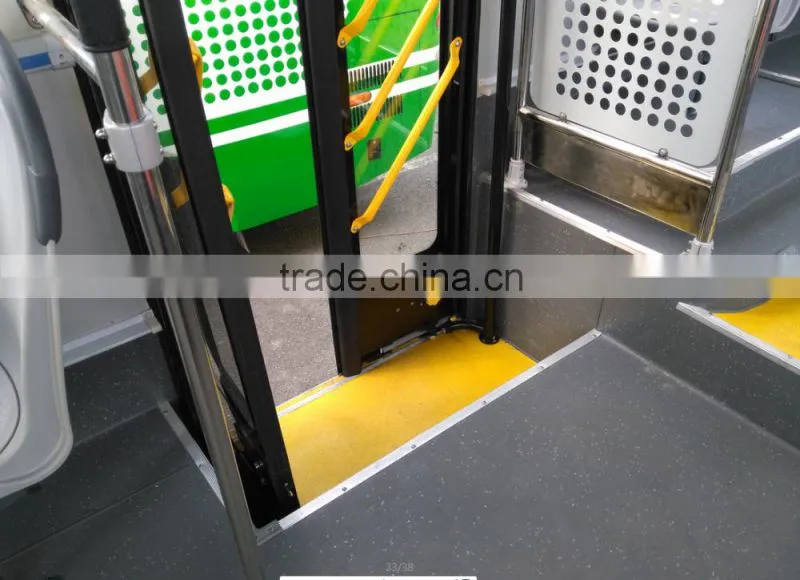

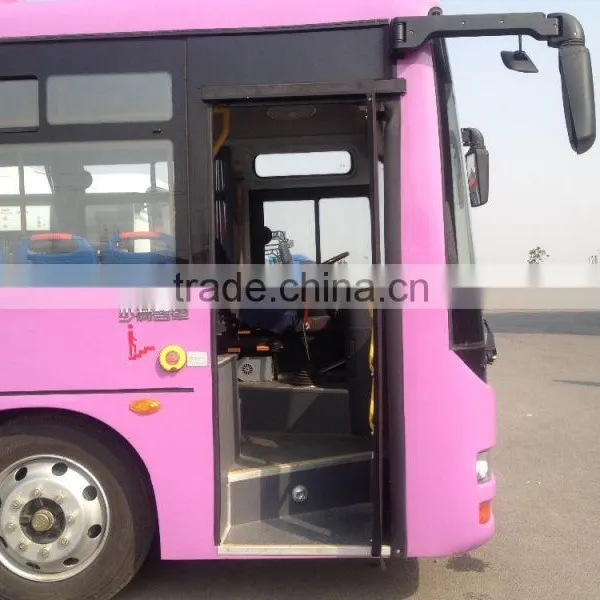

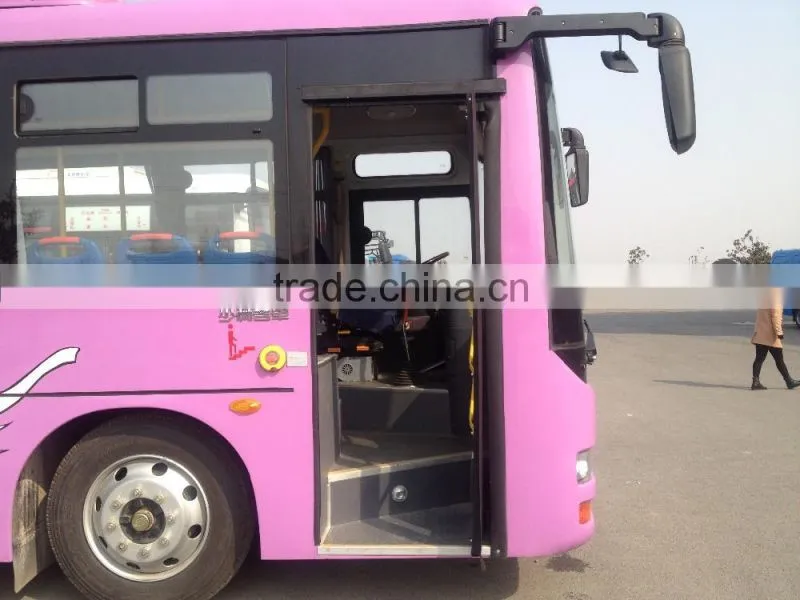

6	PASSENGER DOOR	FOLDING PASSENGER DOOR passenger door before the front Axle	AUTOMATIC
7	SIDE WINDOW	SLIDING WINDOW

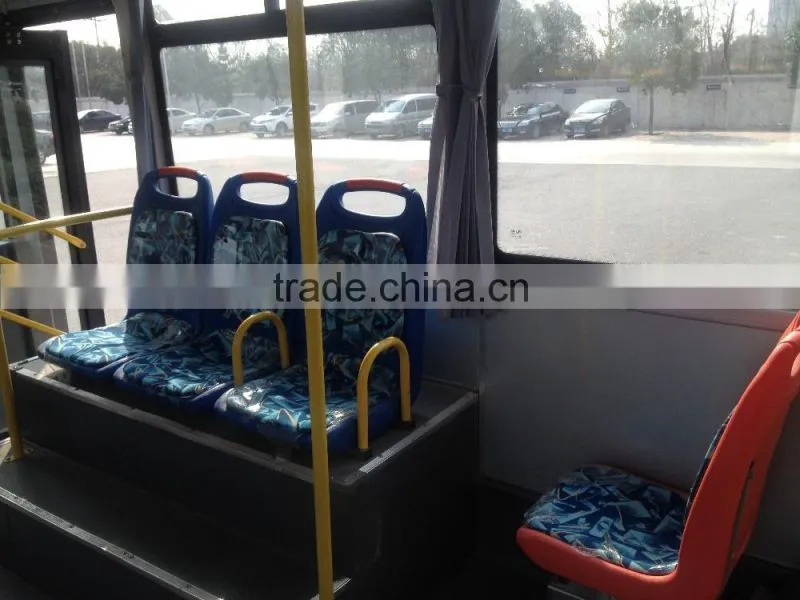

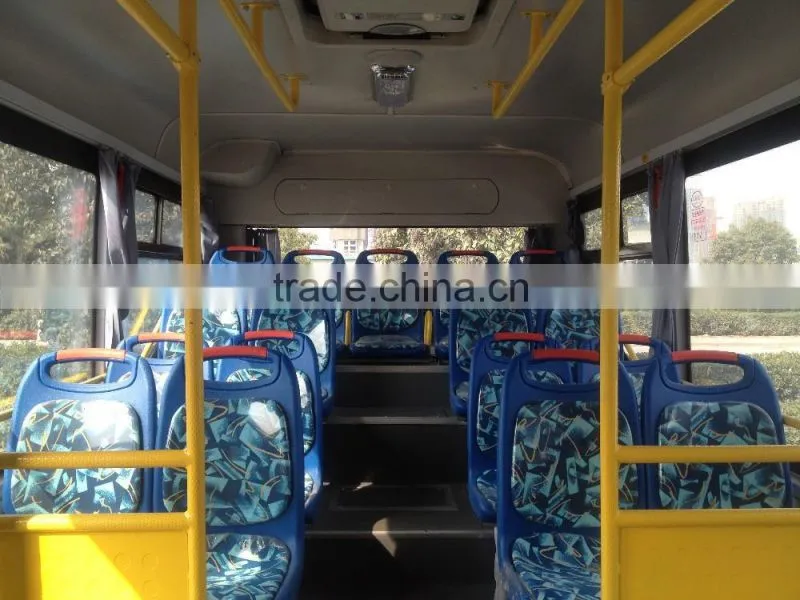

8	PASSENGER SEAT	PLASTIC SEATS	SOFT SEAT
9	SUNROOF	Adjustable Sunroof
10	STEERING WHEEL	ADJUSTABLE STEERING WHEEL
11	FLOOR BOARD	Durable Anti-skid floor
12	AIR CONDITIONER	Powerful Cooling A/C
13	Audio Entertainment	MP3 USD RADIO
14	FRONT DEFROST	Powerful Defroster
