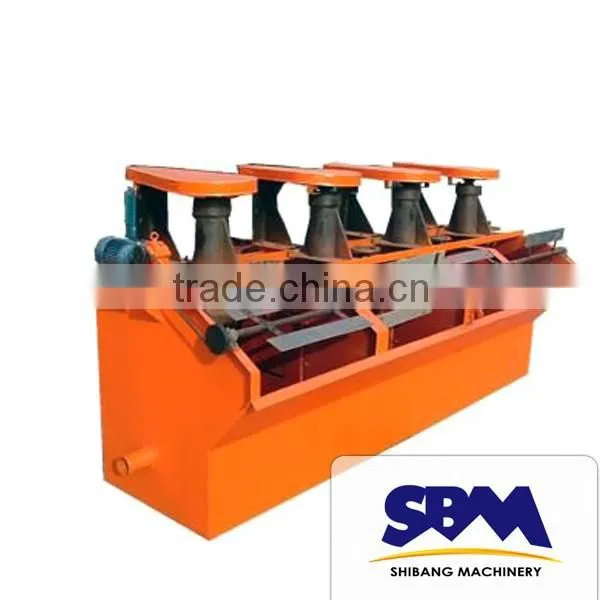

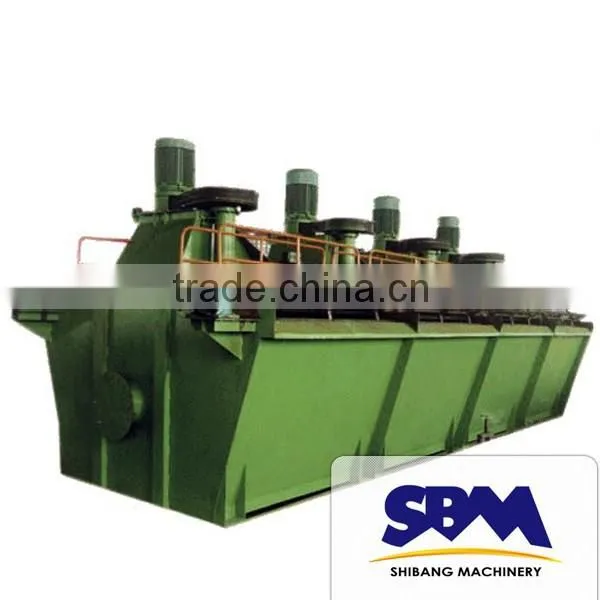

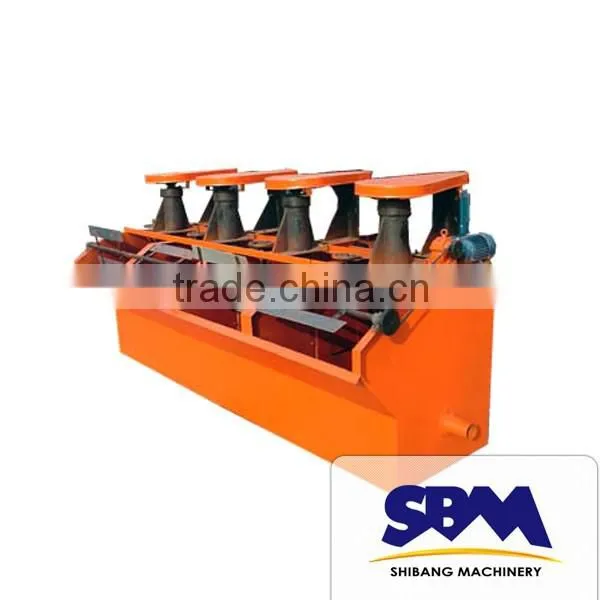

SBM high efficiency flotation of stibnite with ISO approved
- 100 Set / Sets per Month
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
- Hot sale best price metal ore crusher,metal ore crusher with CE
- Hot Selling jaw stone crusher jaw grinder and crusher manufacturer
- Hot Selling jaw stone crusher jaw crusher capacity 110-250tons congo
- Hot sale New type sand making plant in india for sale with low price
- High quality crushed stone processing and pulverized mineral processing
- Zenith construction sand making plant,construction sand making plant price
Product Details
Condition: | New | Type: | Flotation Separator | Production Capacity: | 2-35T/H |
Place of Origin: | Shanghai, China | Brand Name: | SBM | Model Number: | XJQ series |
Voltage: | 380V | Power(W): | 22kw | Dimension(L*W*H): | 1100*1100*1100 |
Weight: | 15t | Certification: | CE&ISO | Warranty: | 12 Months |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Introduction of flotation of stibnite
SBM flotation of stibnite must be levelly installed. flotation of stibnite is easy to change the flow chart. The cycling way of magma is very reasonable. flotation of stibnite can reduce the impurities to a great extent. There is automatic equipment on the magma surface, easy to adjust. The impeller also owns the upper and lower retroversion blade. The upper one makes the magma cycle upward, while the lower one makes the magma cycle downward.
working principle of flotation of stibnite
When flotation of stibnite works, slurry is inhaled from the bottom of the trough to the space between impellers. Meanwhile, the low pressure air send by fan is sent to this area through the air distributor in the hollow shaft. After sufficient mixing, the slurry is pushed out by the impeller, and then goes to the whole trough. When the froth rises to the stable level, after the enrichment processing, froth overflows to the froth trough from the overflow weir. Another part of ore slurry flows to lower part of impeller for the re-mix with air. The remained slurry flows to the next trough until becomes residue.
Features flotation of stibnite :
1.Large air-absorption capacity and low energy consumption
2.Optimistic structure design & Excellent performance
3.Reasonable circulation of mineral slurry
4.Automatic control Easy to adjust
Application flotation of stibnite
The flotation of stibnite are mainly used in mineral ore dressing plants, selecting the valuable mine from gangue. It is applicable for the separation of numerous of mineral ores, such as fluorite and talc, gold ore, copper ore, iron ore and zinc ore and so on.
Specifications of flotation of stibnite
Model | Effectivevolume(m3) | Capacity(m3/min) | D. of impeller(mm) | r.p.m Impeller revolution | Motor power for agitation(kw) | Motor power for scraper(kw) | W. of single tank(kg) |
XJQ-40 | 4 | 2-5 | 400 | 290315 | 11 | 1.1 | 3100 |
XJQ-80 | 8 | 4.2-10 | 560 | 205225 | 22 | 5146 | |
XJQ-160 | 16 | 8-20 | 700 | 170180 | 30 | 1.5 | 9314 |
XJQ-280 | 28 | 14-35 | 760 | 166185 | 55 | 15940 |
SHANGHAI SHIBANG MACHINERY CO., LTD is one high-tech enterprise, which involves R&D, production, sales and service as well. In the past 20 years, we devote to producing mining equipments, sand making machines and industrial grinding mills, offering expressway, rail way and water conservancy projects the solution of making high grade sand and matched equipments.
The head office of SBM is in Shanghai- the international financial centre. Here we have modern production base of 2.3 million square meters, professional R&D institution and technology team, which make us world-class company. Here all SBM machines are designed produced, assembled and texted according to the ISO9001:2008.
Till now, our products are sold to 130 countries, being the popular equipments in global crushing and grinding industry. With the development of our SBM, we would like to help more and more customers start their business in mining and construction industries, offer them the best solution, much more advanced machinery and better service.
1. We are Manufacturer (Not Dealer):
All machineries from SHANGHAI SHIBANG MACHINERY CO., LTD are made by ourselves, with lower price, good quality and assured full after service.
2. Training & Service:
1.We provide you with the prophase plan, process flow design and manufacture equipment according to your special demand.
2.Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
3.We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
3. If you are new for this business:
Many thanks for your trust; we can provide you with design scheme for complete production lines, spot inspection and operator training according to your demands and the conditions of applied spot, we can help you choose the right equipments.
4. We’d like to recommend a suitable model for you and send you a best quotation. So please give us some more information about your requirement in your enquiry.
♥ What is the type and size of raw material?
♥ What is your required capacity(t/h)?
In order to recommend suitable design for you, please kindly tell me:
♥ What is your raw material to be crushed, is it soft stone (like limestone, dolomite) or hard stone (like granite, basalt, river stone, etc)?
Impact crusher is suitable as secondary crusher for soft stone, while cone crusher is suitable as secondary crusher for hard stone.
♥ What is the maximum feed size of your raw material?
♥ What are output sizes you want?
Normally for road construction, it is 0-40mm, while for aggregate, it is 0-20mm.
♥ What is per hour capacity you want?
♥ Are you the end user or will you re-sell the machinery to your clients?
