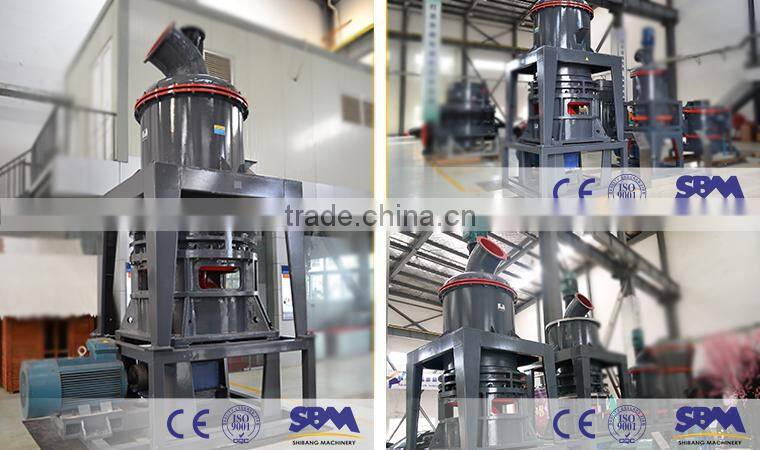

Help CenterSBM High Efficiency Plaster Powder Grinder Machine With ISO
Related Products
-
China Leading Brand MTM Series Isostatic Pressing Graphite Grinder MillUS$ 1,999 - 4,999MOQ: 1 Set -
Low Price Cement Grinding Machine, Cement Clinker Grinding MachineUS$ 4,999 - 9,999MOQ: 1 Set
-
Hot Sales Environment Friendly Granulator PulverizerUS$ 4,999 - 9,999MOQ: 1 Set
-
Hot Sales Environment Friendly Unique Shaped Grinders Price for SaleUS$ 4,999 - 9,999MOQ: 1 Set
-
Hot Sales Environment Friendly Gold Ore Milling MachineUS$ 4,999 - 9,999MOQ: 1 Set
Features of plaster powder grinder machine :
1. The plaster powder grinder machine 's structure is tight, from crushing to grinding and packing all together forms an independent production system, it has advantages of covering small area, operating simple, saving work force.
2. The final product has high passing screen ratio, which can achieve 99%.
3. Driving system of main frame adopts airtight gearing and pulley, which secures reliable operation.
4. Main parts of the grinding plant are made from cast and high quality steel, which ensures the durability of whole plant.
5. With application of centralized controlling electric control system, no operator is in the operating room.

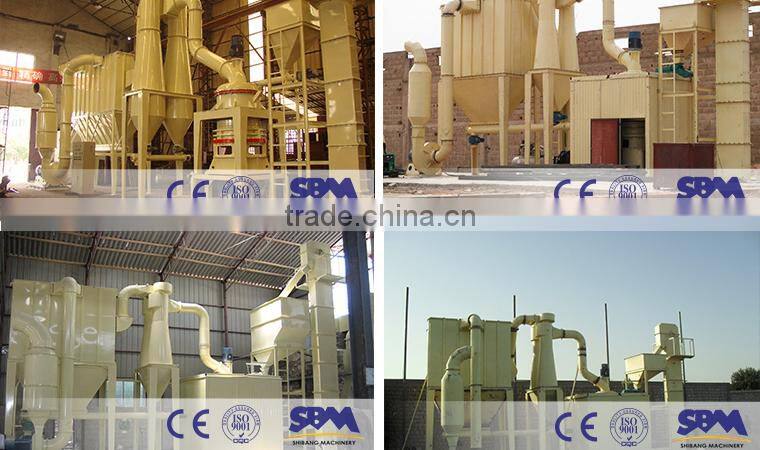

Qorking principle of plaster powder grinder machine
Firstly, raw material is crushed by hammer crusher to the size required, then the crushed materials are elevated into a hopper
from which the material is transported through the electro magnetic vibrating feeder, evenly and continuously
into the plaster powder grinder machine . The rollers oscillate outward to press the ring because of the centrifugal force
and the shovel scoops up the materials, send to the middle between ring and roller to accomplish the grind.After this, the ground stuff are carried by the air from the blower into the separator for screening. The fine powers are blow into the cyclone collector and are poured out through the output powder valve as the final products and the rough stuff after the screening will be recycle back into the grinding chamber for regrinding. The sets airflow system is closely sealed up and circulated under condition of negative and positive pressure.
The application of plaster powder grinder machine
plaster powder grinder machine is used to grind materials in the fields of construction, mining, metallurgy and chemical industry. The materials should be non-flammable and non-explosive. Examples of the materials are: quartz, feldspar, barite, fluorite, dolomite, garnet, carborundum, bauxite, zircon, marble, calcite, iron ore, rock phosphate, coal, ceram, slag and so on (400 kinds of materials).
The materials should have the hardness less than 9.3 in Moh's scale and humidity less than 6 percent. The granularity of the end products can be changed from 325 to 2500 meshes.
Technical Data of plaster powder grinder machine :
| Name & Model | SCM8021 | SCM9024 | SCM10036 | SCM12544 | |
| Ring roll number (pcs) | 21 | 24 | 36 | 44 | |
| Working diameter (mm) | Φ800 | Φ900 | Φ1000 | Φ1300 | |
| Grinding rill and roller path number (pcs) | 1X3 | 2x4 | 1x4 | 2x4 | |
| Revolving Speed (rmin) | 230-240 | 200-220 | 180-200 | 135-155 | |
| Max feed size (mm) | ≤10 | ≤20 | ≤20 | ≤20 | |
| Final size (mesh) | 325-2500 | 325-2500 | 325-2500 | 325-2500 | |
| Output (kgh) | 400-4500 | 600-5500 | 400-7500 | 1200-12000 | |
| contour dimension (mm) | 13000x3000x5800 | 14700x4800x8600 | 18000x4600x8600 | 14000x9000x10250 | |
| Whole machine capacity (kw) | 144-165 | 185-204 | 263-290 | 380-430 | |
Shanghai Shibang Machinery Co., Ltd participate in various exhibitions frequently.
Such as Bauma China,China Import and Export Fair , Asia-pacific's International Mining Exhibition, Bauma Africa, CONEXPO Latin America , etc.
Ways of Packing:
1.Sand blasting, coat with high quality paint;
2.Product wrap by PP-Bubble
3.Load container, Spear Parts in wooden case.
Transportation:
1. By sea Freight;
2. MSK/MSC/APL/EMC/WANHAI/KLINE
3. We will remind you before boat arrival
SHANGHAI SHIBANG MACHINERY CO., LTD is one high-tech enterprise, which involves R&D, production, sales and service as well. In the past 20 years, we devote to producing mining equipments, sand making machines and industrial grinding mills, offering expressway, rail way and water conservancy projects the solution of making high grade sand and matched equipments.
The head office of SBM is in Shanghai- the international financial centre. Here we have modern production base of 2.3 million square meters, professional R&D institution and technology team, which make us world-class company. Here all SBM machines are designed produced, assembled and texted according to the ISO9001:2008.
Till now, our products are sold to 130 countries, being the popular equipments in global crushing and grinding industry. With the development of our SBM, we would like to help more and more customers start their business in mining and construction industries, offer them the best solution, much more advanced machinery and better service.
1. We are Manufacturer (Not Dealer):
All machineries from SHANGHAI SHIBANG MACHINERY CO., LTD are made by ourselves, with lower price, good quality and assured full after service.
2. Training & Service:
1.We provide you with the prophase plan, process flow design and manufacture equipment according to your special demand.
2.Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
3.We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
3. If you are new for this business:
Many thanks for your trust; we can provide you with design scheme for complete production lines, spot inspection and operator training according to your demands and the conditions of applied spot, we can help you choose the right equipments.
4. We’d like to recommend a suitable model for you and send you a best quotation. So please give us some more information about your requirement in your enquiry.
♥ What is the type and size of raw material?
♥ What is your required capacity(t/h)?
♥ What is required size of final product(mm)?
