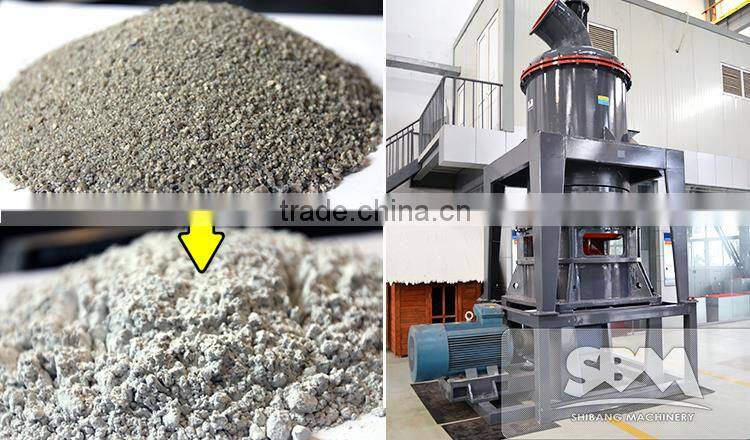

Help CenterHot Sales Environment Friendly Micronizer Jet Mill for Sell Price
Related Products
-
Hot Sales Environment Friendly Conical Mill, Conical Grinding Mill, Conical Poeder MillUS$ 4,999 - 9,999MOQ: 1 Set -
High Quality Large Capacity Vertical Mill ManufacturerUS$ 4,999 - 99,999MOQ: 1 Set
-
Hot Sale Gravel Grinder , Gravel Grinder Machine With CEUS$ 4,999 - 9,999MOQ: 1 Set
-
China ISO Certification Approved Corundum Grinder Mill With Low PriceUS$ 4,999 - 9,999MOQ: 1 Set
-
China Supplier New Type High Performance Pet Coke Grinding MillUS$ 4,999 - 99,999MOQ: 1 Set
micronizer jet mill features:
1. Low investment, high efficiency and fast recovery.
2. Applicable over large areas, may be grind a variety of materials below the hardness of six.
3. Self-made system, little of the production part, the material which below 25mm can be processed directly into the machine.
4. No pollution,the result of eliminate dust is fully meet the national standards.
5. High airproof of the grinding roller device.
micronizer jet mill working principle

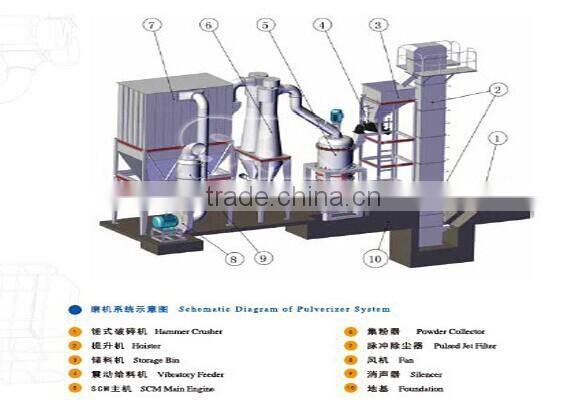

After crushed by hammer crusher, the large materials become small ones and are sent to storage hopper by elevator, edge of then evenly sent to the upper distribution plate of the turnplate by vibrating feeder and sloping feeding pipe. When the micronizer jet mill is at work, all the grinding rollers are rolling in the ring, and the materials are driven to the edge of the turnplate by the centrifugal force and fall down into the grinding chambers where the materials are repeatedly pressed, crushed and grinded by the rollers.The high-pressure air blower constantly inhales air within the micronizer jet mill , in turn, the air flow with crushed materials are brought to the classifier whose high-speed impeller will screen the airflow: the unqualified particle size will fall and return to the micronizer jet mill for being reground while the qualified particle size mixed with air will go into the cyclone powder collector. Most of the qualified powders will fall an exit from the discharging valve at the bottom; a small proportion of the fine powders, with airflow, moves to the dust cleaner, and clings to the surface of the filter bags. At the same time, the fine powders clinging to the surface fall down by the sudden vibration of the filter bags, which is caused by the instantly ejected high-pressure gas controlled by the pulse valve. The materials from the above two lots are sent by the conveyor at the bottom to get finished powders packed. In addition, filtered clean air will be emitted from the air outlet of muffler in the end.
The application of micronizer jet mill
micronizer jet mill is mainly used to produce fine powder and super fine powder. It is applicable to non-flammable and non-explosive materials with hardness less than 6, such as calcite, chalk, limestone, dolomite, kaolin, bentonite, talcum, talc, magnesite, illite, pyrophyllite, vermiculite, sepiolite, etc.
Technical Data of micronizer jet mill :
| Name & Model | SCM8021 | SCM9024 | SCM10036 | SCM12544 | |
| Ring roll number (pcs) | 21 | 24 | 36 | 44 | |
| Working diameter (mm) | Φ800 | Φ900 | Φ1000 | Φ1300 | |
| Grinding rill and roller path number (pcs) | 1X3 | 2x4 | 1x4 | 2x4 | |
| Revolving Speed (rmin) | 230-240 | 200-220 | 180-200 | 135-155 | |
| Max feed size (mm) | ≤10 | ≤20 | ≤20 | ≤20 | |
| Final size (mesh) | 325-2500 | 325-2500 | 325-2500 | 325-2500 | |
| Output (kgh) | 400-4500 | 600-5500 | 400-7500 | 1200-12000 | |
| contour dimension (mm) | 13000x3000x5800 | 14700x4800x8600 | 18000x4600x8600 | 14000x9000x10250 | |
| Whole machine capacity (kw) | 144-165 | 185-204 | 263-290 | 380-430 | |

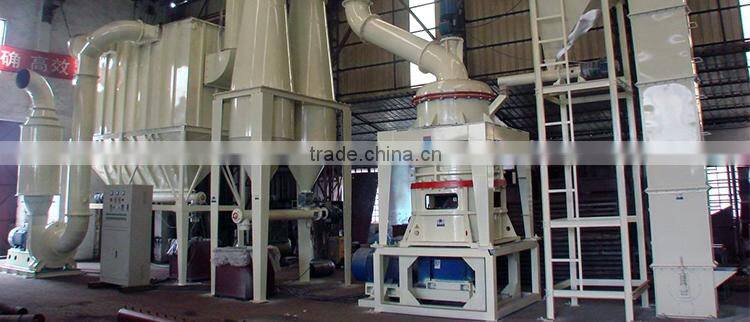

SCM8021 PULVERIZING LINE
Customer profile
Certain micropowder Co.,Ltd Zhejiang
Mr. Sun, general manager of the company, is engaged in micropowder industry for more than 10 years, with finished product fed to more than 160 manufactures.
It purchases SCM8021 superfine micropowder grinder from our company
Production Line Condition
Site: Zhejiang
Daily running: 11 hours
Feedstock: calcite, limestone, particle size 200-400mm, particle size into grinder<25mm
Finished product: 600 screen mesh-1250 screen mesh micropowder, finished product used in paint, coating, plastic additive, ect
Configuration: SCM8021 superfine micropowder grinder complete equipmeny
Main Specifications
| Model | Max.feed size(mm) | Size of Finished Product(mesh) | capacity(kg/h) |
| SCM8021 | 10 | 325-2500 | 400-5500 |
Customer’s comment
Shibang’s superfine micro powder grinder not only can attain our strict requipments on product quality of screen mesh and fineness very well, but also is relatively low in dissipation of energy. What is the most relieved is Shibang’s after-service, which is very timely and highly efficient. Furthermore, technician would ask use status of equipment over the telephone or personally come here for return visit.
---Mr. Sun, general manager of this company
SHANGHAI SHIBANG MACHINERY CO., LTD is one high-tech enterprise, which involves R&D, production, sales and service as well. In the past 20 years, we devote to producing mining equipments, sand making machines and industrial grinding mills, offering expressway, rail way and water conservancy projects the solution of making high grade sand and matched equipments.
The head office of SBM is in Shanghai- the international financial centre. Here we have modern production base of 2.3 million square meters, professional R&D institution and technology team, which make us world-class company. Here all SBM machines are designed produced, assembled and texted according to the ISO9001:2008.
Till now, our products are sold to 130 countries, being the popular equipments in global crushing and grinding industry. With the development of our SBM, we would like to help more and more customers start their business in mining and construction industries, offer them the best solution, much more advanced machinery and better service.
Minimum Order Quantity
A: The minimum order quantity is 1 Set
Delivery time
A: The lead time is 10-30 days, Delivery time will vary depending on the type of the machine, shipping method selected and part availability.
FOB Prices
A: Different machine has different FOB price, please send your interest type, raw material, capacity, Your contact information, we will give you a reasonable FOB price as soon as possible
Payment terms
A: Accepted Payment Type: T/T, L/C, Western Union, Cash
After sign the contract, pay the 10%-30% deposit of total purchase price and pay the full payment before delivery.
Products warranty
A: The Products warranty is one year.
Pre-sales Service:
The wide product range enables us to provide our customers with stand-alone machines or complete processing plants. Based on our customers’ request and budget, our experts make efficient, reliable solutions. Following customers’ order we produce strictly, what’s more, before placing the order every customer has the chance to visit SBM working machines or complete plant in the site.
To ease the trip for every visitor to China, in particular the first-time visitor, we provide FOR FREE all relevant visitor-friendly services including invitation letter preparation, hotel reservation, airport pick-up, incity transportation, and sightseeing guide, etc.
After-sales Service:
Experienced technicians guidance is available on the phone, and on the internet. One or more engineers will be dispatched to the quarry site to help install the customers’ plants. Necessary training about machine daily maintenance to local workers is provided also.
After-Sales department is made of well-trained employees and installation engineers, the installation engineers are special and professional members of SBM, they are now strategically located home and abroad, working for our customers.
In order to recommend suitable design for you, please kindly tell me:
♥ What is your raw material to process?
♥ What is the maximum feed size of your raw material? like 10-50mm
♥ What are output sizes you want? like 5-10mm or 150-200 meshes
♥ What is per hour capacity you want? like 6.5-20PTH
Now, please click the following contact to send us email !
↓↓↓
