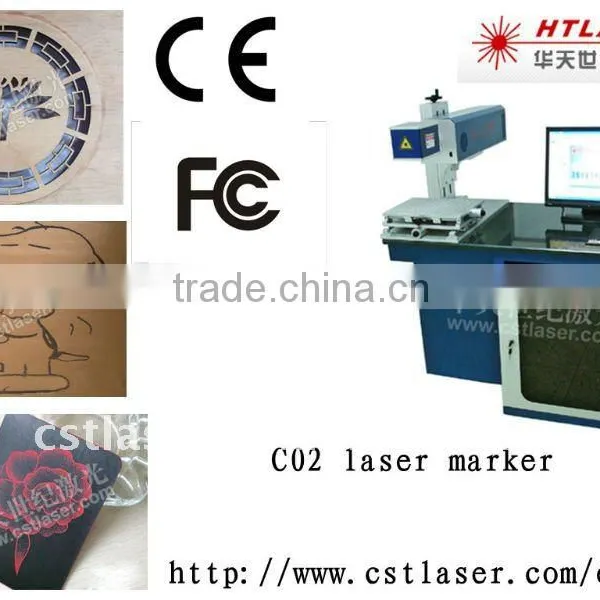

HT-LSC100E(B) CO2 Laser Marker
US$ 12,000 - 18,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Laser Type:
CO2
Place of Origin:
Guangdong, China
Brand Name:
HTLASER
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HT-LSC100E(C) CO2 Laser MarkerUS$ 12,000 - 18,000MOQ: 1 Set -
HT-LSC50E(B) CO2 Laser MarkerUS$ 12,000 - 18,000MOQ: 1 Set
-
HT-LSC50E(C) CO2 Laser MarkerUS$ 12,000 - 18,000MOQ: 1 Set
-
Online Fly Laser Marker Laser Marking MachineUS$ 20,000 - 90,000MOQ: 1 Set
-
UV Laser Marking Machine for Single Crystal SiliconNegotiableMOQ: 1 Set
Laser Type
CO2
Place of Origin
Guangdong, China
Brand Name
HTLASER
Model Number
HT-LSC100E(B) CO2 laser marker
Specifications
Bamboo and wood products, papers, fabric, leather, organic glass, epoxy resin, acrylic, polyester resin.Features
- High marking precision, high speed, controllable carving depth.
- Big laser power, suitable carving and cutting nonmetal products.
- No consumables, low cost, as long as 20,000 to 30,000 hours service life.
- Clear mark, high carving and cutting efficiency, environmental friendly, and energy saving.
Introduction
The core optic components of the CO2 series laser marker are imported from America. The CO2 radio frequency laser and high speed scanning galvanometer imported from America provide reliable guarantee for the long time, continuous, high speed and stable work of the machine. The CO2 radio frequency laser is a kind of gas laser and the laser wavelength is 10.64μm, which is in medium infrared frequency. The CO2 laser has big power and high electro optic conversion efficiency. It uses CO2 as the working substance, and fills the CO2 and other gases into the discharge tube. When high voltage is added to the electrode, glow discharge generates in the discharge tube and makes the gas molecules release laser. After expanding and focusing the released laser energy, the laser process is realized through deflection with scanning galvanometer.
The marking software runs in WINDOWS platform and Chinese interface. It is compatible with the file formats of AUTOCAD, CORELDRAW and PHOTOSHOP, such as PLT, PCW, DIF, BMP, etc. It also can use SHK and TTF character libraries. Design graphs through computer. The operation is simple. The power is controlled by the software and adjustable.
The marking software runs in WINDOWS platform and Chinese interface. It is compatible with the file formats of AUTOCAD, CORELDRAW and PHOTOSHOP, such as PLT, PCW, DIF, BMP, etc. It also can use SHK and TTF character libraries. Design graphs through computer. The operation is simple. The power is controlled by the software and adjustable.
Features
- High marking precision, high speed, controllable carving depth.
- Big laser power, suitable carving and cutting nonmetal products.
- No consumables, low cost, as long as 20,000 to 30,000 hours service life.
- Clear mark, high carving and cutting efficiency, environmental friendly, and energy saving.
Suitable materials and application:
Arts and crafts, furniture, leather and costume, advertising label, model making, food packaging, electronic components, medicine packaging, printing plate making, shell label, etc.
Suitable materials:
Bamboo and wood products, papers, fabric, leather, organic glass, epoxy resin, acrylic, polyester resin.
Technical parameters
Model |
HT-LSC100E(B) |
|
Laser output power |
100W |
|
Laser wavelength |
10.64μm |
|
Repeating frequency |
≤100KHz |
|
Standard carving range |
110mm×110mm/175mm×175mm/260mm×260mm (optional) |
|
Minimum line width |
0.10mm |
|
Repeating precision |
±0.01mm |
|
Integrity power |
4KW |
|
Carving depth |
≤8mm |
|
Minimum character |
0.4mm |
|
Carving line speed |
≤7000mm/s |
|
Power supply |
220V/Single phase/50Hz/20A |
|
Optics system dimensions |
1200mm×190mm×200mm |
|
Control system |
600mm×600mm×800mm |
|
Cooling system |
water cooling |
|
