Specifications
50W lamp pump laser marking marchinepower supply:220V/Single phase/50Hz/30A
control system(mm):600x600x800

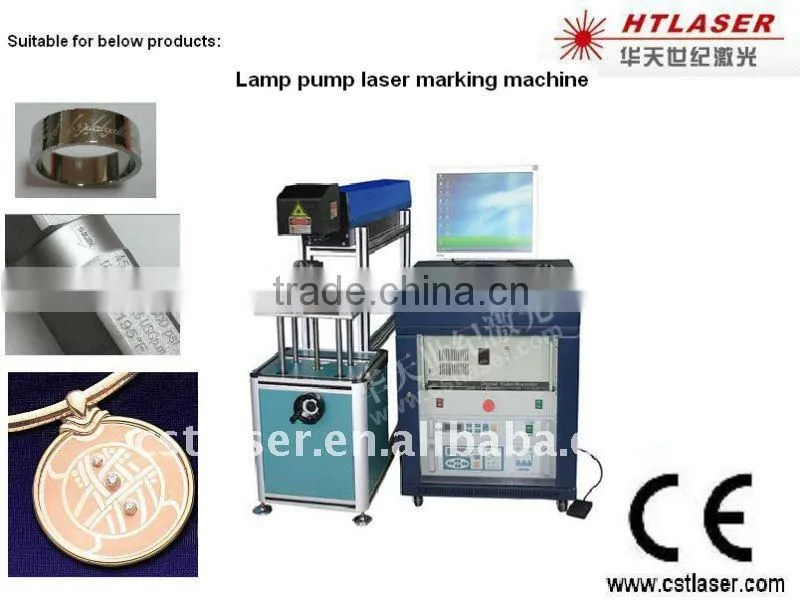

50W lamp pump laser marking marchine
high speed, high efficiency,high quality
Carve metal and nonmetal materials; more suitable for circumstances that require super fine and high precision.
It is applied to electronic components, integrated circuit (IC), electric apparatus, mobile communication, hardware products, tool fittings, precision instrument, glasses, watch and clock, jewelry, automobile parts, plastic keys, construction materials, PVC pipes, medical instruments, etc.
Suitable materials include: common metal and alloy (all metals include iron, copper, aluminum, magnesium and zinc), rare metal and alloy (gold, nickel, and titanium), metal oxide, special surface process (phosphating, aluminum anodizing and electroplated surface), ABS material (electric apparatus shell, daily necessities), ink (light-transmitting keys, printing products), epoxy resin (packages and insulating layer of electronic components).
Model |
HT-M50 |
Laser wavelength |
1064nm |
Laser repeating frequency |
≤50KHz |
Maximum laser power |
50W |
Standard carving range |
100mm×100mm |
Optional carving range |
50mm×50mm/150mm×150mm (optional) |
Carving depth |
<1mm |
Carving line speed |
≤7000mm/s |
Minimum line width |
0.015mm |
Minimum character |
0.3mm |
Repeating precision |
±0.003mm |
Power supply |
220V/Single-phase/50Hz/30A |
Maximum integrity power |
5KW |
Dimensions (L*W*H) (mm) | |
Optics system (mm) |
1200*420*1180 |
Cooling system (split) (mm) |
Indoor: 280*300*700; outdoor: 880*300*700 |
Control system (mm) |
600*600*800 |
