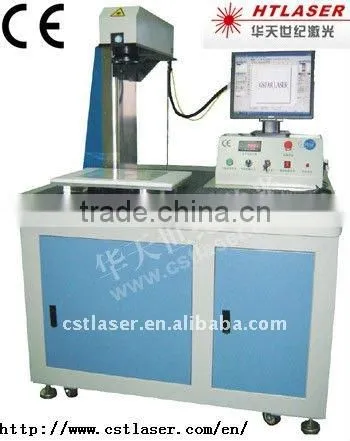

ITO Film Laser Etcher
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
HTLASER
Model Number:
HT-LSF20D
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Semiconductor Side Pump Laser Marking MachineNegotiableMOQ: 1 Set -
Semiconductor Side Pump Laser Marker Laser Marking MachineUS$ 10,000 - 90,000MOQ: 1 Set
-
Semiconductor End Pump Laser Marking MarchineNegotiableMOQ: 1 Set
-
Semiconductor End Pump Laser Marking MarchineNegotiableMOQ: 1 Set
-
Semiconductor End Pump Laser Marking MarchineNegotiableMOQ: 1 Set
Place of Origin
Guangdong, China
Brand Name
HTLASER
Model Number
HT-LSF20D
Specifications
1.High precision, high speed, stable performance, mass production supported;2.Environmental friendly;
3.Saving manpower: ...
The ITO film laser etcher is a kind of precision equipment that is used to perform stripping process on the ITO film adhered to glass and PETFilm with laser. It can etch precision patterns on the ITO film, polycrystalline film and other oxide film on glass or PET base, and ensure high production. It is a reliable, stable and high performance-price ratio product that has been recognized by the market.
Comparison of products
Five steps of etching: silk screen anti-etching ink, hardening, acid etching, cleaning, drying
One step of laser dry etching: laser etching
One step of laser dry etching: laser etching
Features
1.High precision, high speed, stable performance, mass production supported;
2.Environmental friendly;
3.Saving manpower: reduce 3/4 work procedure, save manpower and reduce cost;
4.High and stable pass rate;
5.Simple and convenient operation
2.Environmental friendly;
3.Saving manpower: reduce 3/4 work procedure, save manpower and reduce cost;
4.High and stable pass rate;
5.Simple and convenient operation
Application
1.ITO film process on glass base
Touch screen
Mobile phone
Film solar battery
Other displays
2.ITO film process on PET (polyethylene terephthalate) baseMobile phone
Film solar battery
Other displays
Organic LED (Oleo)
Technical parameters
Model |
HT-LSF20D |
Laser wavelength |
1064nm |
Maximum laser power |
20W |
Laser repeating frequency |
20-80KHZ |
Light beam quality |
<1.5 |
Standard marking range |
300mm*300mm |
Optional marking range |
70mm*70mm/145mm*145mm/175mm*175mm/250mm*250mm (optional) |
Processing speed |
<7000mm/s |
Processing depth |
<0.5mm (depend on materials) |
Minimum line width |
<0.01-0.15mm |
Minimum character |
0.1mm |
Repeating precision |
±0.005mm |
Integrity power |
1KW |
Power supply |
220V/50Hz/10A |
Weight |
About 350kg |
