Home > Manufacturing & Processing Machinery > Laser Equipment > Laser Engraving Machine > Co2 Laser Marker
Co2 Laser Marker
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Laser Type:
CO2
CNC or Not:
Yes
Cooling Mode:
Air Cooling
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Laser Type
CO2
CNC or Not
Yes
Cooling Mode
Air Cooling
Applicable Material
Acrylic, Crytal, Glass, Leather, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood
Place of Origin
Guangdong, China
Brand Name
co2 laser
Model Number
HT-LSC10 HT-LSC30
Certification
CE, ISO, Other, CE, ISO, FCC
Specifications
Use CO2 laser imported from America, featuring general model, small size and high integration.HT-LSC30E(A) CO2 laser marker

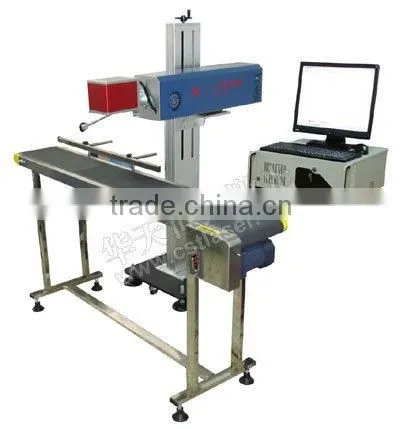

Appearance picture
The appearance of pictures are for reference only to the actual product, whichever is
Introduction
The core optic components of the CO2 series laser marker are imported from America. The CO2 radio frequency laser and high speed scanning galvanometer imported from America provide reliable guarantee for the long time, continuous, high speed and stable work of the machine. The CO2 radio frequency laser is a kind of gas laser and the laser wavelength is 10.64μm, which is in medium infrared frequency. The CO2 laser has big power and high electro optic conversion efficiency. It uses CO2 as the working substance, and fills the CO2 and other gases into the discharge tube. When high voltage is added to the electrode, glow discharge generates in the discharge tube and makes the gas molecules release laser. After expanding and focusing the released laser energy, the laser process is realized through deflection with scanning galvanometer.
The marking software runs in WINDOWS platform and Chinese interface. It is compatible with the file formats of AUTOCAD, CORELDRAW and PHOTOSHOP, such as PLT, PCW, DIF, BMP, etc. It also can use SHK and TTF character libraries. Design graphs through computer. The operation is simple. The power is controlled by the software and adjustable.
The marking software runs in WINDOWS platform and Chinese interface. It is compatible with the file formats of AUTOCAD, CORELDRAW and PHOTOSHOP, such as PLT, PCW, DIF, BMP, etc. It also can use SHK and TTF character libraries. Design graphs through computer. The operation is simple. The power is controlled by the software and adjustable.
Features
- High marking precision, high speed, controllable carving depth.
- Big laser power, suitable carving and cutting nonmetal products.
- No consumables, low cost, as long as 20,000 to 30,000 hours service life.
- Clear mark, high carving and cutting efficiency, environmental friendly, and energy saving.
Suitable materials and application:
Arts and crafts, furniture, leather and costume, advertising label, model making, food packaging, electronic components, medicine packaging, printing plate making, shell label, etc.
Suitable materials:
Bamboo and wood products, papers, fabric, leather, organic glass, epoxy resin, acrylic, polyester resin.
Technical parameters
Model |
HT-LSC30E(A) |
|
Laser output power |
30W |
|
Laser wavelength |
10.64μm |
|
Repeating frequency |
≤20KHz |
|
Standard carving range |
110mm×110mm/175mm×175mm/260mm×260mm (optional) |
|
Minimum line width |
0.10mm |
|
Repeating precision |
±0.01mm |
|
Integrity power |
1.2KW |
|
Carving depth |
≤3mm |
|
Minimum character |
0.4mm |
|
Carving line speed |
≤7000mm/s |
|
Power supply |
220V/Single phase/50Hz/8A |
|
Optics system dimensions |
1200mm×190mm×200mm |
|
Control system |
600mm×600mm×800mm |
|
Cooling system |
Air cooling |
|
