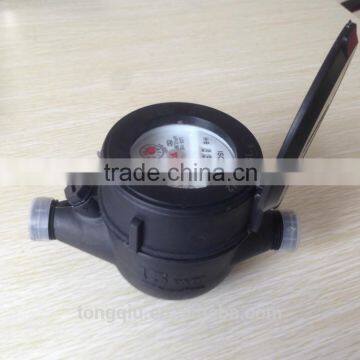

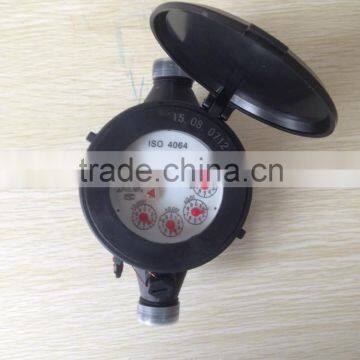

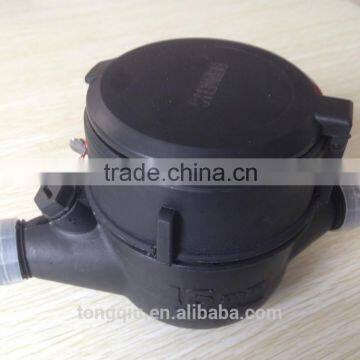

Help CenterMulti Jet Dry Dial Plastic Nylon Water Meter LXSG-15~40
Related Products
-
Rotary Vane Wheel Output Adjustable Dry Dial Iron Water Meter LXSG--15E~50EUS$ 1 - 5MOQ: 500 Pieces -
Multi Jet Dry Dial Plastic ABS Water Meter LXS-15S~25S Quality ChoiceUS$ 1.8 - 5MOQ: 500 Pieces
-
1/2 Rotary Vane Wheel Wet Dial Iron Water MeterUS$ 2 - 15MOQ: 1000 Pieces
-
DN 15 Competitive Price Multi Jet Plastic ABS Cheap Water MeterUS$ 1.8 - 5MOQ: 1000 Pieces
-
Rotary Vane Wheel Hot Iron Water MeterUS$ 2.5 - 30MOQ: 1000 Pieces
Features :
1.Completely plastic shell, solid and robust design, long service guaranteed.
2.High quality materials corrosion resistance.
3.Pole ring magnet polymer coating as protection against deposits.
4.The measuring mechanism can be exchanged.
5.Step movement counter.
6.Inside calibration device.
7. Large measuring range high flow accuracy.
8.Steady curve characteristics.
9.Measuring accuracy:ISO4064 Class B.
10. Overload flowrate: Qs=2Qp (Qn=nominal flowrate)
Working Condition :
Water temperature: ≤40℃ pressure: ≤1.6Mpa
INDICATING ERROR:
At low zone is ±5% from minimum flow rate(qmin) to transitional flow rate(qt) exclusive boundary ;
At high zone is ±2% from transitional flow rate(qt) to overload flow rate(qs)
Optional: Both brass thread connections and plastic thread connections are available.
| Type | Meter size Dia DN (in.) | Class | qs Overload Flow | qs Nominal Flow | qs Transitional Flow | Qmin Min Flow | Min Reading Lectura | Max Reading Lectura | Length | Width | Height | Connecting D | Weight (Kg) |
| m3/h | 1/h | m3 | mm | ||||||||||
| LXSG-15S | 1/2" | A | 3 | 1.5 | 150 | 60 | 0.0001 | 99999 | 165 | 99 | 108 | G 3/4B | 0.53 |
| B | 120 | 30 | |||||||||||
| LXSG-20S | 3/4" | A | 5 | 2.5 | 250 | 100 | 0.0001 | 99999 | 195 | 99 | 108 | G 1B | 0.6 |
| B | 200 | 50 | |||||||||||
| LXSG-25S | 1" | A | 7 | 3.5 | 350 | 140 | 0.0001 | 99999 | 225 | 104 | 114 | G1 1/4B | 0.78 |
| B | 280 | 70 | |||||||||||
| LXSG-40S | 11/2" | A | 20 | 10 | 1000 | 400 | 0.001 | 99999 | 245 | 128 | 158 | G2B | 1.2 |
| B | 800 | 200 | |||||||||||
