Low investment high profit business,JZ400 manufacturing process of clay bricks
What's the advantages of JZ400 manufacturing process of clay bricks ?
JZ400 Yingfeng brick making equipmentis one of our hot sale medium brick production line.
It is widely used inmediumbudget brick owners.Suitable for family workshops. Also, its compact design and manual clutch makes machine operation very easily. Therefore we are selling at least 86 sets per year to over 20 countries.
1.Strong applicability, lower energy consumption and high output
2.The raw material for making bricks can be ,clay, fly ash,not just clay.
3.Solid brick is the best choice.It can also produce hollow bricks with small holes, if bigger holes, we suggest you go for our bigger power extruder.
What's the features of JZ400 manufacturing process of clay bricks ?
1. Having limited electric power and very limited budget and not much demand for bricks amount
2. In buyers’ brick market, no much requirements on brick quality
3. Only wants to produce solid bricks (small hole brick is also possible if your raw material is fine
enough for above 30 model extruder)
More technical parameters for your reference:
Type |
Capacity(pcs/h) |
Auger Diameter (mm) |
Extruding Pressure (Mpa) |
Extruder Power (KW) |
Whole production line power KW) |
JZ250 |
2000-3000 |
250mm |
0 |
15 |
15-47 |
JZ280 |
3000-4000 |
280mm |
0 |
22 |
50-70 |
JZ300 |
4000-6000 |
300mm |
0 |
30 |
70-80 |
JZ350 |
6000-7000 |
350mm |
0 |
40 |
80-95 |
JZ400 |
8000-10000 |
400mm |
0 |
55 |
120-140 |
JZ500 |
13000-16000 |
500mm |
0 |
90 |
150-180 |
Note: The above capacity is based on Chinese brick size : 240X115X53 mm, if your brick size is different from our brick size, then the capacity will differ .We would send different brick capacity list and different brick machine price list to you once we get your mail to us.

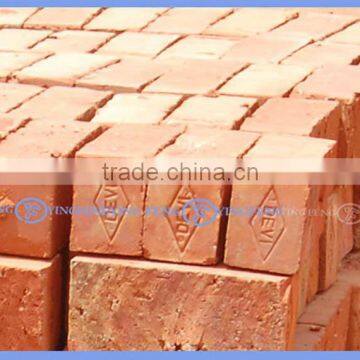

The following is part of brick sample which manufacturing process of clay bricks can produce
Note: We can provide other different brick mould with different mould sizes according to your requirements.

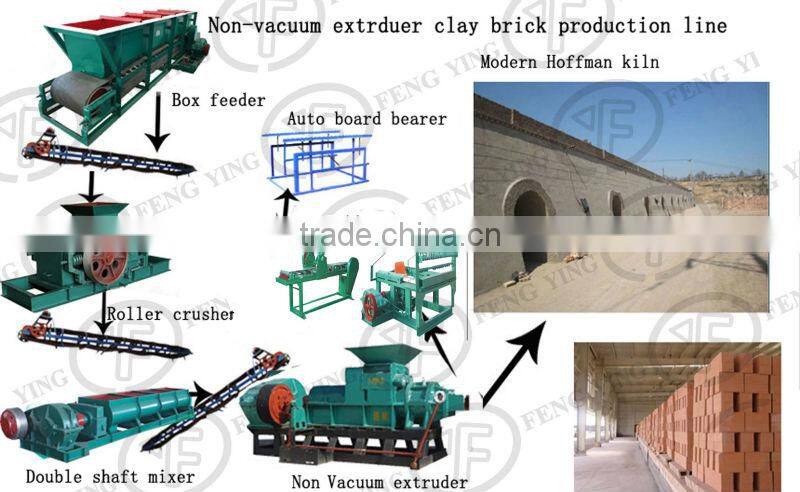

JZ400 manufacturing process of clay bricks :
Note:The above production line is based on soft clay,mud,soil.If your material is shale,fly ash,coal Gangue,or with big stones,grass roots,etc,or you want to buy brick carrying cars or robot ,brick stacker, the above line will be adjusted after we get your feedback for your material condition.
| After brick cutting how to do brick drying and firing | |||||||||||
| Item | Drying method | Firing method | Advantage and disadvantage | ||||||||
| 1 | Natural drying | Buyer Local kiln | Very low investment, but may take more labors | ||||||||
| 2 | Natural drying | Hoffman kiln | A little high investment, but may take more labors | ||||||||
| 3 | Natural drying | Tunnel kiln | High investment, but takes less labors than Item 2 | ||||||||
| 4 | Small tunnel dryer | Hoffman kiln | High investment, but takes less labors than Item 2 | ||||||||
| 5 | Small tunnel dryer | Tunnel kiln | Higher investment, but takes less labors than Item 4 | ||||||||
| 6 | Big Tunnel dryer | Tunnel kiln | Highest investment, but takes least labors | ||||||||
Yingfeng JZ400 manufacturing process of clay bricks workshop:
Yingfeng JZ400 manufacturing process of clay bricks raw material:
Our Certificate
Note:we are responsible for our clients when we choose raw material for our clients, 1.For doubles shaft mixer blades, we choose 45 Carbon steel.
2.For roller crusher ,we use high manganese
3.steel.axles, gear and other important spare parts which are made by carbon steel and alloy steel through modulation or quench’s heat treatment procession so as to extend the service life.
Modern Hoffman kiln for JZ400 manufacturing process of clay bricks :
From the the below photos ,you can see hoffman kiln drawings, inside and outside of hoffman kiln.Such hoffman kiln investment is very less. But capacity is bigger than.
If you want to know how it works, then please contact us, we would provide you detailed video, also you are welcome to visit our brick plant.Then you can better understand the theory of hoffman kiln.
Also, we can design different sizes of hoffman kiln according to your budget or land condtion.
If you want to know the working process, then welcome to contact us.We would send you video for better understanding.
1.)Quality: Yingfeng focusing on quality and precision, we dedicated to producing brick machine
with high quality to meet our customers' requirements;
2.)Cost:We have been committed to finding a good joint point of the price and quality,We always
offer you more competitive price;
3.)Lead Time:We can provide our customers high quality products within short lead time;
4.)Experience: Our engineers have rich experiences in brick making machine designing & manufacturing. We can
provide you valuable suggestion and technical support for kiln.
Yingfeng supply the following brick making machine and brick making equipment,you can choose what you need:
1. Belt type box feeder
2. Roller crusher, jaw crusher , hammer crusher
3. Double shaft mixer, double shaft mixer and extruder
4. Brick vacuum extruder, vacuum brick making machine
5. Automatic brick cutter system
6. Bricks separation machine
7. belt conveyor
8. Brick dryer
9. Brick tunnel kil
10. Brick kiln equipment
11. Automatic brick loading and unloading machine
12. Automatic brick packaging machine
13. Automatuc robot brick setting machine
14. Auotmatic brick stacking machine
15. Brick dryer and tunnel kiln design and construcion
16. Technical provide and technical supervision
17. Turn-key project
18. Full automatic brick project clay floor tile making machine
21. Full automatic clay brick making machine and brick making equipment
Our manufacturing process of clay bricks Service :
Aftersale service is an important part in our brick machine industry, after more than 20 years, we have much
more experience to support our buyer of brick machine.
We provide the following service:
1. Provide customers with various brick making equipments,
2. provide services like process design, kiln design, workshop design
3. Also, we have a professional team of engineers to do clay brick machine installation, training workers,
imparting technical instruction to our buyers,
4. After brick machine running, we have special aftersale service department to provide spare parts, machine
problem fixing.
